Product Details:
Payment & Shipping Terms:
|

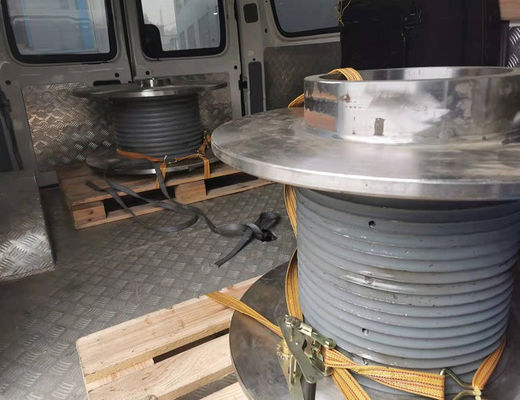

| Material: | Q355B | Product Name: | Groove Drums Sleeves |
|---|---|---|---|
| Grooved Type: | Lebus Grooved | Model: | Customizable |
| Connection Type: | Welded | Dia. Of Rope: | 4~100mm |
| Layes: | 2~20 Layes | Warranty: | 12 Months |
| Grade: | The Best | Supply Ability: | 200 Sets Per Month |
| Highlight: | removable grooved drum sleeves,rope winding system grooved drum sleeves |
||
Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center
Groove Drum Composition: Drum core, Flanges, Shaft, Etc

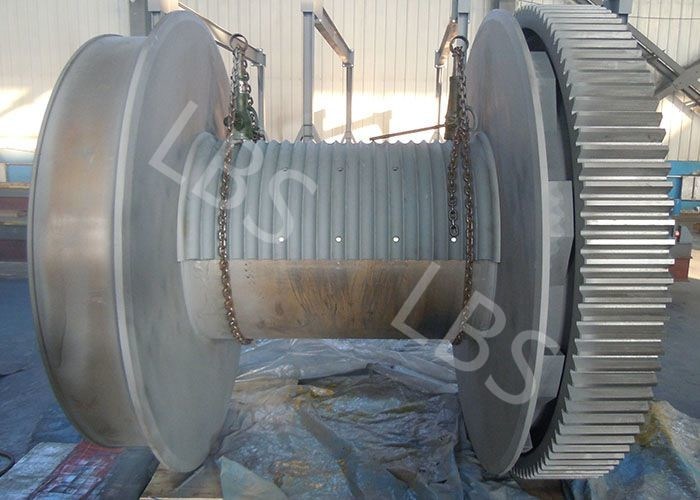

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
|
No: |
Wire diameter(mm) |
Pulling Force(KN) |
Rotation Direction |
Drum Diameter(mm) |
Drum Length(mm) |
|
1 |
3~8 |
3~10 |
Lefthand,Righthand |
>160 |
<1000 |
|
2 |
10~16 |
12~20 |
Lefthand,Righthand |
>320 |
<1000 |
|
3 |
18~24 |
20~80 |
Lefthand,Righthand |
>480 |
<1000 |
|
4 |
26~32 |
100~120 |
Lefthand,Righthand |
>640 |
<1000 |
|
5 |
34~40 |
150~200 |
Lefthand,Righthand |
>800 |
<1000 |
|
6 |
42~50 |
240~400 |
Lefthand,Righthand |
>1000 |
<100 |
1.The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.
2.The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.
3.The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.
4.When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.
5.The rope must be kept round,not loose,even under the maximum load.
6.The rope must be anti-rotation structure.
7.Pls measure the change of rope diameter under different load.
