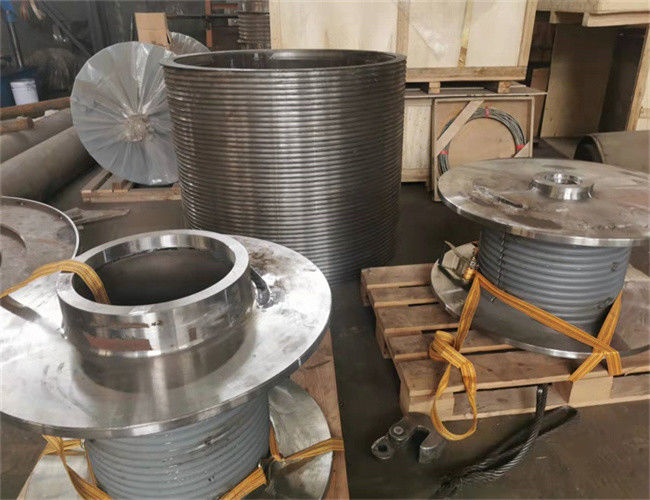

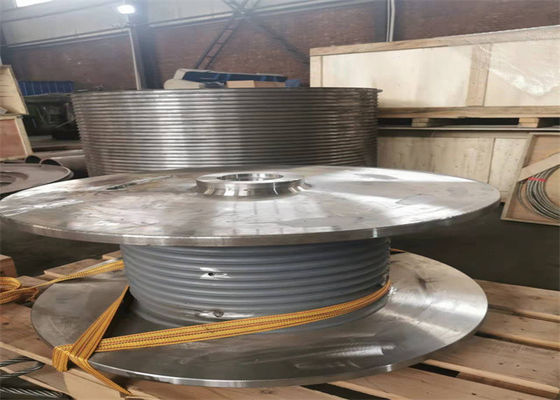

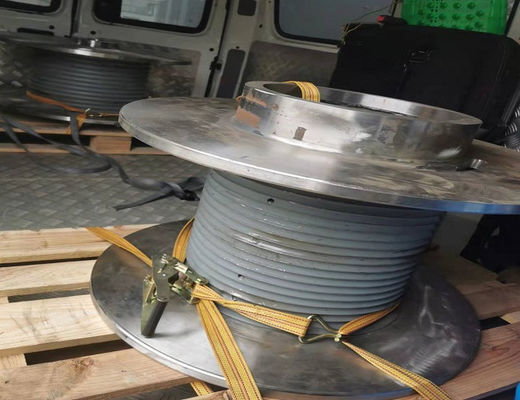

Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch

Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch
Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch

Large Image :  Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS series
Payment & Shipping Terms:
Minimum Order Quantity: 1 peice
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: After Advance 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Peice Per Month
Detailed Product Description
Material: Alloy Steel Product Name: Groove Drums Sleeves
Grooved Type: Lebus Grooved Surface Color: Customizable
Connection Type: Welded Or Bolted Dia. Of Rope: 4~100mm
Layes: 2~20 Layes Warranty: 12 Months
Grade: The Best Supply Ability: 200 Sets Per Month
Highlight:

lebus grooving drum sleeves

,

alloy steel grooved drum sleeves

,

electirc winch drum sleeves

Drum And Split Half Sleeves With Lebus Grooving For Electirc Winch



LEBUS sleeves

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum has obvious advantages in the neat winding of multi-layer steel wire rope. lebus groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.
The disadvantage of LBS rope groove drum is that it is more complex, so it is a little more expensive than the spiral rope groove drum. However, this additional cost is quickly compensated for by the savings in wire rope, which is expensive and takes up production time to replace.
In order to reduce costs, we produce LEBUS SLEEVES, which are also manufactured to the required size of the wire rope. The material can be either steel or nylon, butt-welded or bolted onto the reel. This ensures that the wire rope is wrapped in orderly layers on the reel. When the wire rope can also be replaced, only SLEEVE can be replaced instead of the reel, greatly saving the cost and time

Production Equipment

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine


Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc
Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...
Ambient Temperature: -40 ° C To +45 ° C
Stroage Ambient Temperature: -40 ° C To +50 ° C
Groove Type of Drum: Spiral Grooves or Lebus Grooves
The Rotation Direction of The Drum: Lefthand or Righthand
Processing method: Machine Work
Wire Rope Diameter: 3 MM~100 MM
Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the
drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope
construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.


Product Application:

1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch



About Size:

We can manufacture all sizes of drums. From now, we have finished the drums from 50mm to 2000mm in diameter. And its length range is from 100mm to 2000mm.


some Technical Parameters

No:

Wire diameter(mm)

Pulling Force(KN)

Rotation Direction

Drum Diameter(mm)

Drum Length(mm)

1

3~8


3~10

Lefthand,Righthand

>160

<1000

2

10~16


12~20

Lefthand,Righthand

>320

<1000

3

18~24


20~80

Lefthand,Righthand

>480

<1000

4

26~32


100~120

Lefthand,Righthand

>640

<1000

5

34~40


150~200

Lefthand,Righthand

>800

<1000

6

42~50


240~400

Lefthand,Righthand

>1000

<100



LBSS Series Grooved Sleeves(Shell)

Split-sleeve consists of a pair of outer shells that are bolted or welded onto a smooth drum. We can manufacture spiral groove and lebus groove.
The split-sleeve depends on the drum’s size,wire rope diameter and length.


Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch 0

Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch 1Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch 2Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch 3Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch 4Split Half Alloy Steel Drum Sleeves With Lebus Grooving For Electirc Winch 5
