3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

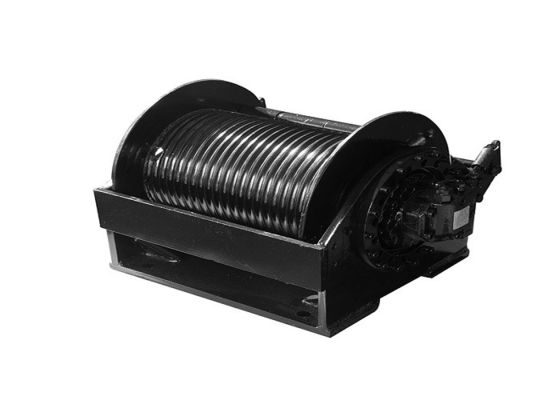

3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material

3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material
3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material 3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material 3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material

Large Image :  3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export Cases
Delivery Time: After advance 20-30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Product Name: Hydraulic Pulling Winch Material: Q355b
Lifting Speed: 55m/min Produce Equipment: Hydraulic
Rope Capacity: 10-500m Application: Pulling Winch
Brake: Belt Brake Color: As Required
Pulling Force: 3-10T Type: Custom
High Light:

spiral groove hydraulic pulling winch

,

q355b hydraulic pulling winch

,

lebus groove hydraulic pulling winch

3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material





Hydraulic crane winch

Hydraulic hoist did not take, directly by the hydraulic motor, control valve, cylinder, the end of the supporting shaft and so on, these can be selected according to the needs of customers, can be widely used in conveyor tensioning device, engineering machinery hoisting machinery such as crane, crawler crane, overhead working truck, crane, forestry and the port of ship class such as port crane, floating crane, dredger, Crane, boat derrick, and can be used for large lifting equipment such as oil drilling rig, offshore oil drilling platform, pile machinery rotary digging drill, rock drill, core drill, hydrostatic pile press and so on.




Product name Hydraulic crane  winch
color yellow /black /gray/as customes
size 35*35*20
Pull 8/10/15/20
layer 1-7
Wire rope capacity 17-230
Hydraulic motor As customes
Planetary reduction ratio I=5.23
L/min

As customes





Product Outline Drawing:

3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material 0



Product parameters



Model

Pull force

(KN)

Rope speed

(m/min)

Drum bottom

Diameter

(mm)

Difference of working pressures

(Mpa)

Rope capacity (mm)

Diameter of steel rope

(mm)

Model of

hydraulic motor

LBSW-DN10-10-00

10 0-40 250 13 100 10 C2.5-5.5
LBSW-DN12-18-00 12 0-40 250 12.5 100 12 C2.5-5.5
LBSW-DN14-20-00 20 0-35 300 12 100 14 C2.5-5.5
LBSW-DN15-30-00 30 0-30 350 14 100 15 C3-5.5
LBSW-DN22-65-00 65 0-35 550 15 200 22 C5-5
LBSW-DN24-80-00 80 0-30 600 16 200 24 C5-5.5
LBSW-DN30-120-00 120 0-30 750 16 200 30 C7-5.5
LBSW-DN38-180-00 180 0-30 860 16 200 38

C7-5.5







Advantage Of The LBS Grroved

This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.






3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material 1



3T / 5T / 10t Hydraulic Pulling Winch Grooves Drum Q355b Steel Material 2
