CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel

CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel

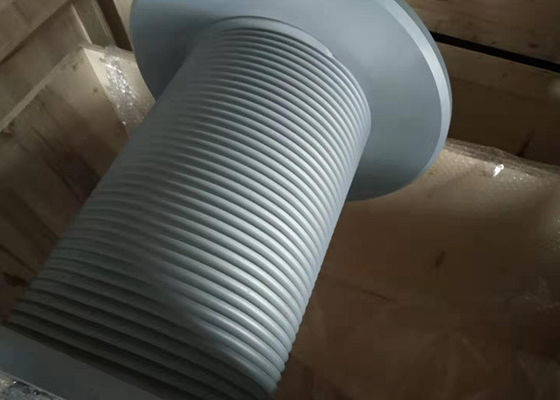

CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel

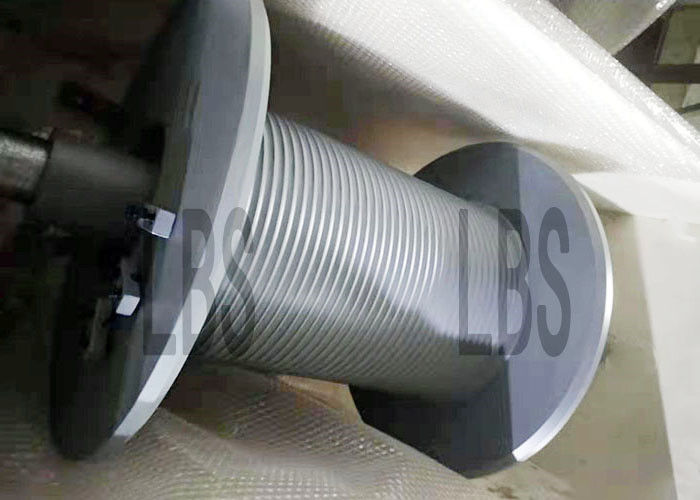

Large Image :  CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD 0012
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: Grooved Hoist Drum Application: Hoist And Crane
Material: Steel Rope Capacity: 10-800M
Rope Groove Type: Lebus Grooves Or Spiral Groove Power Source: Hydraulic Or Electric
Warranty: 12Months Speed: Fast Or Slow
Country Of Origin: Hebei,China Rope Diameter: 2-80mm
High Light:

hydraulic engineering equipment wire rope drum

,

hoist main part wire rope drum

,

grooved steel wire rope drum

Hydraulic Engineering Equipment Hoist Main Part Wire Rope Grooved Steel Drum



Product material:

1. Carbon structural steel: Q235A/B/C/D/E SS400 A36 SM400 St37-2 S235J...
2. Low alloy high strength steel: Q345A/B/C/D/E Q390 Q420 Q460 15GrMo 20GrMo 12GrMoVNi 42GrMo...
3. Alloy structural steel: 20Mn2 40Mn2 15Cr 30Cr 20CrMnMo 20CrNi...
4. Polymer materials, fiber materials and polyamide nylon materials.
5. Stainless steel materials, aluminum materials, etc.
The product material can be selected according to the customer's request



Operation method

First, the wire rope is not sorted out before hoisting, and the wire rope is checked by itself, and the wire rope with a higher proportion of broken rope should be replaced in time. Second, do a good job of fixing the winch, the base of the winch is unstable, and the winch is prone to displacement when lifting. Show ropes. Third, when lifting, adhere to the wire rope and drum into a 90 degree Angle. The above is to avoid the method of small winch wire rope chaos. There are many parts on the winch. The effect of different parts is different, and the fault response method will be different



the use of environment:

1. Outdoor use is allowed;

2. The altitude does not exceed 2000M;

3. Ambient temperature -30℃ ~ +65℃;

4. It is allowed to work under rain, splash and dust conditions.



Product Model:

This LBS reel model is: LBSZ1080-1300

Represents the diameter of the Ribas drum is 1080mm, the length is 1300mm,



The role of the spooling

Provide wire rope laying service, in the site with the ship winch wire rope chain connection or drilling rig, crane link cable laying operation, to better protect the wire rope.



The basic information
name  Wire Rope Winch Drum
the alias Wire Rope Winch Drum
origin Western Europe
use Vertical and horizontal conveying of materials in construction
classification Upper rotary tower and lower rotary tower



Oerview

Winch drum is an important part of oil rig winch, winch drum

One end of the wound wire rope is fixed at the drum rope socket through a rope clip, and the other end

The guide wheel of the sky car is introduced into the trolley pulley group, and the trolley pulley group is installed

Equipped with hooks, faucets and drill pipe strings. When the winch works, it is wound

The steel wire rope on the drum realizes the action of winding and releasing the rope through positive and negative rotation of the drum

The drum bears the fast rope tension of the wire rope, and the drum structure must meet the strength

Outside, but also to ensure that the wire rope winding neatly.



LEBUS rope groove

With the development of oil drilling winches in recent decades, winches appear more

The transmission form and the structure form, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire Rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range Small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral Angle of the parallel section and the climbing section will affect the effect of drum rope winding, becauset this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.



advantage

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.



Product specifications:

1) Wire rope or cable diameter (mm)
2) The main drum diameter (mm)
3) Width between flanges (mm)
4) Length of rope or cable to be accommodated
5) Material and requirements of the drum
6) Maximum operating load on rope or cable
7) Direction of wire rope entry
8) Type of rope entry
9) Distance to fixed sheave and position between flanges
10) Outside diameter of flanges



Product application:

1. The petroleum industry: oil drilling rig, petroleum tractor hoist, petroleum workover rig, trailermounted pumping unit winch , etc
2. Crane machinery: the bridge lifting machine, tower crane
3. The hoist: building wipe wall machine, winding machine
4. Engineering machinery: tower crane, piling machine
5. Marine machinery: offshore petroleum crane winch, drawworks and hoist



About company:

Early introduction the advanced technics form domestic and foreign,after years R&D,our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010.Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.



Outline Structure Of Drawing



CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel 0



Processing Technic

CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel 1



CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel 2CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel 3CCS Wire Rope Drum Hydraulic Engineering Equipment Hoist Main Part Grooved Steel 4

Contact Details
Hebei Junke Machinery Technology Co.,Ltd

Contact Person: Marie

Tel: 86+13315131859

Fax: 86-311-66692276

Send your inquiry directly to us (0 / 3000)
