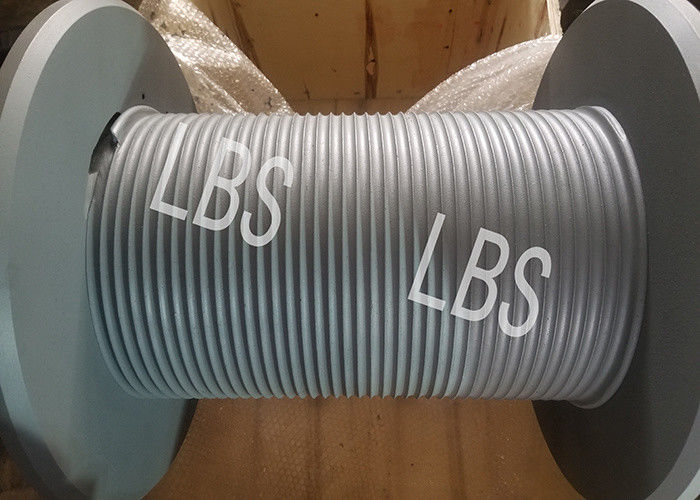

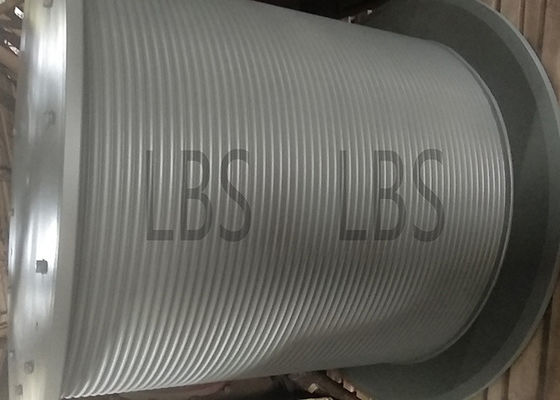

2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries

2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries
2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries 2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries 2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries 2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries

Large Image :  2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD 0012
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: LBS Rope Winch Drum Application: Winch
Material: Alloy Steel Rope Capacity: 800M
Rope Groove Type: Lebus Grooves And Spiral Groove Power Source: Hydraulic Or Electric
Warranty: 13Months Rated Speed: Customers Requirement
Country Of Origin: China Rope Diameter: 2-80mm
High Light:

2000mm rope winch drum

,

lbs hoisting industries rope winch drum

Crane 2000mm Wire Rope Winch Drum For LBS Hoisting Drum Industries



Overview:

LBS drum is a kind of groove form suitable for multi-layer winding of wire rope introduced from abroad. Because this kind of rope groove is kept parallel with the flange end face in most sections of the drum circumferential direction, and only intersects with the flange end face in a very small section, the rope groove must be turned, hence the name "folding rope groove".

Years of practical use show that this kind of special rope groove structure of the drum, can well solve the problem of wire rope multi-layer winding rope about double folded cord slot system, to ensure that the multilayer on the drum winding rope fully involved in and roll out the reel smoothly, and can greatly prolong the service life of wire rope, the system is still the most effective method and the most perfect. Tests have shown that the Lebus drum can prolong the life of the wire rope by more than 500% with the rope groove matching the specifications of the wire rope.



the use of environment:

1. Outdoor use is allowed;

2. The altitude does not exceed 2000M;

3. Ambient temperature -30℃ ~ +65℃;

4. It is allowed to work under rain, splash and dust conditions.



Product Model:

This LBS reel model is: LBSZ1080-1300

Represents the diameter of the Ribas drum is 1080mm, the length is 1300mm,



The role of the spooling

Provide wire rope laying service, in the site with the ship winch wire rope chain connection or drilling rig, crane link cable laying operation, to better protect the wire rope.



The basic information
name  Wire Rope Winch Drum
the alias Wire Rope Winch Drum
origin Western Europe
use Vertical and horizontal conveying of materials in construction
classification Upper rotary tower and lower rotary tower



Oerview

Winch drum is an important part of oil rig winch, winch drum

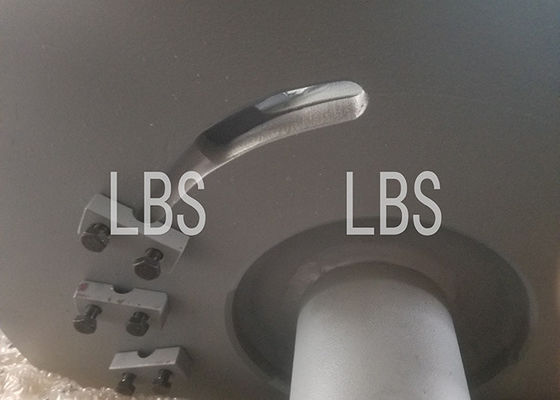

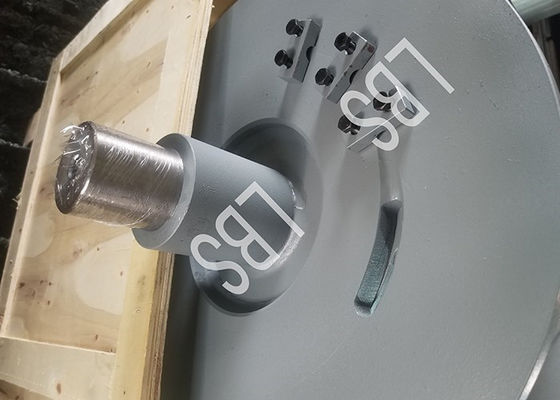

One end of the wound wire rope is fixed at the drum rope socket through a rope clip, and the other end

The guide wheel of the sky car is introduced into the trolley pulley group, and the trolley pulley group is installed

Equipped with hooks, faucets and drill pipe strings. When the winch works, it is wound

The steel wire rope on the drum realizes the action of winding and releasing the rope through positive and negative rotation of the drum

The drum bears the fast rope tension of the wire rope, and the drum structure must meet the strength

Outside, but also to ensure that the wire rope winding neatly.



LEBUS rope groove

With the development of oil drilling winches in recent decades, winches appear more

The transmission form and the structure form, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire Rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range Small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral Angle of the parallel section and the climbing section will affect the effect of drum rope winding, becauset this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.



advantage

When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.



Conditions of LBS grooved

LBS rope groove drum also requires certain operating conditions. The most important of these conditions is the deflection Angle of the wire rope, which is the Angle between the wire rope from the reel to the first fixed pulley. Generally speaking, this deflection Angle should not be greater than 1.5° and should not be less than 0.5°. There are some slight differences (about a 0.25° variation), but it is good to remember this general statistic. The optimal deflection Angle also depends on the load, cable structure and lifting speed. This deflection Angle indicates that for every 10m from the drum to the pulley, the distance between the wire rope and the midpoint of the drum should not be greater than 260mm (520mm between the two flanges). 9 Q2 ` 2 L! For LBS groove reels, if the deflection Angle exceeds the recommended range, a special rope called Angle compensator can be used to relax and be damaged by extruding or twisting of the outer wire rope onto the groove



Due to the different uses of the hoist, the difference in the use conditions, its structural design is also different

1) Lifting heavy objects requires a certain speed and high safety.

2) equipment installation, the quality of general equipment is large, it requires that the hoist has a large lifting capacity, in order to ensure the installation accuracy, the speed can not be too high. In order to prevent falling, its safety requirements are higher.

3) traction items, because this work is generally carried out in the horizontal or inclined direction, in order to make the items can move before and after, the requirements of the winch drum can work.

4) pile driving, requiring the hoist to lift the weight to a certain height, can make the weight into a free fall to achieve pile driving, that is, the hoist with slip performance.

Although hoist can be divided into many types, in fact, due to the application of complex, difficult to definitely distinguish them, and often, a hoist a few work to do, so on the design of the hoist to use a share is not very clear, but high as required to design, so that can make the hoist realize multi-usage, get more extensive application.

Outline Structure Of Drawing



2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries 0



Processing Technic

2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries 1



2000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries 22000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries 32000mm Wire Rope Winch Drum For Lbs Hoisting Drum Industries 4
