500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

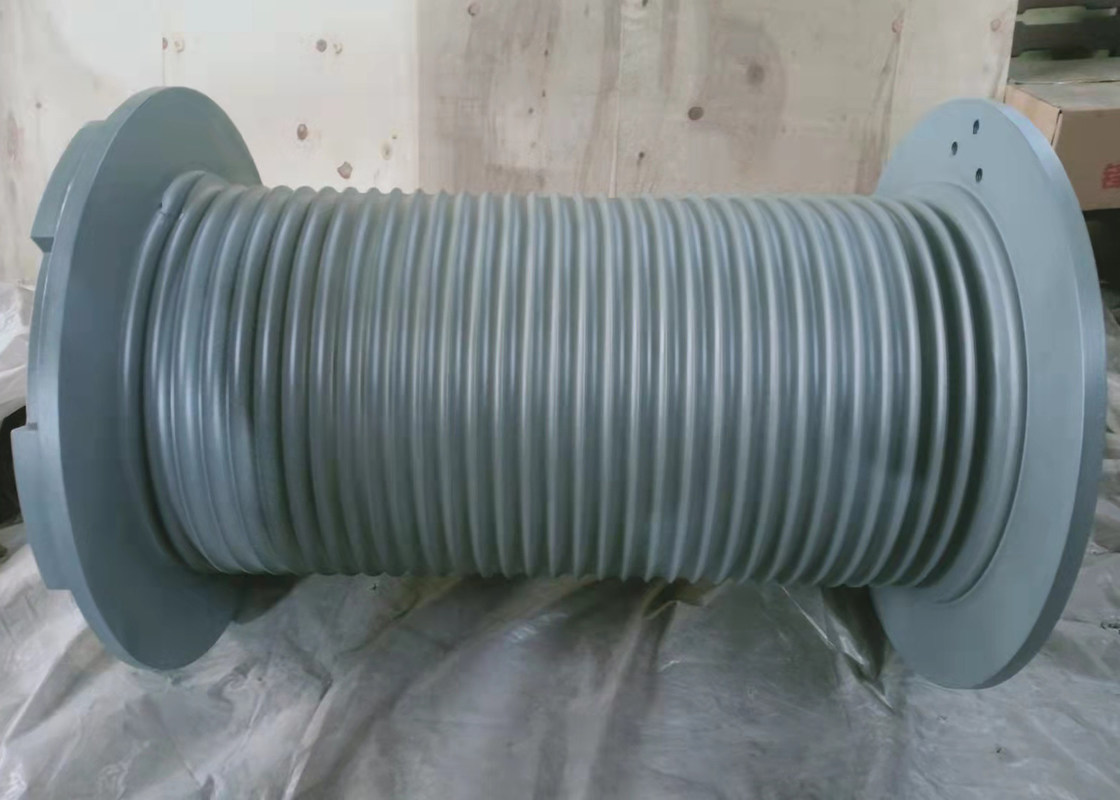

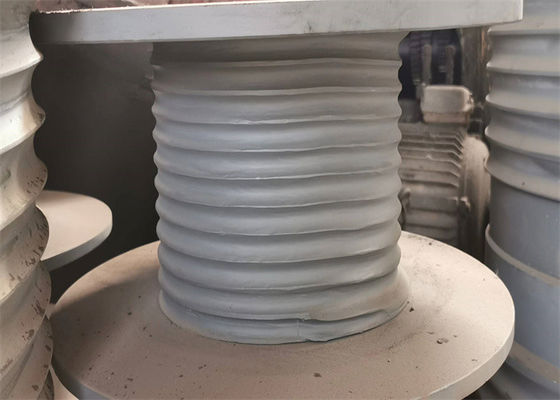

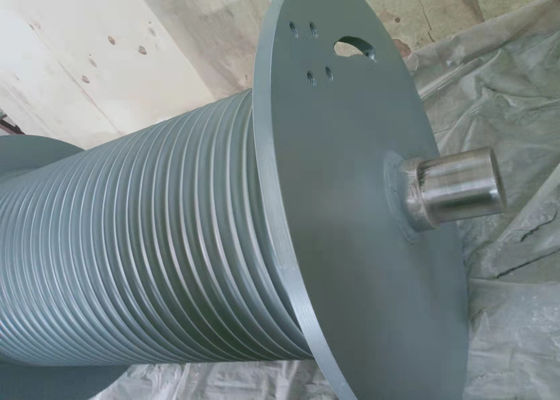

500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery

500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery
500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery 500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery 500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery 500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery

Large Image :  500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: Rope Winch Drum Application: Hoisting Or Crane
Material: Steel Rope Capacity: 300M
Rope Groove Type: Lebus Grooves Power Source: Hydraulic
Warranty: 12 Months Rated Speed: As Per Customers Requirement
Weight: 1800kgs Rope Diameter: 30mm,As Demand
High Light:

500m capacity rope winch drum

,

lifting pulling machinery rope winch drum

,

500m capacity wire rope winch drum

500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery





Company introduction

Our company mainly serves lifting machinery, Marine machinery, petroleum machinery, water conservancy machinery, construction machinery and other industries. The main products are oil drilling machine, workover machine, well machine, drum of oil truck and winch winch (main barrel adopts libasi double folding line groove) and oil equipment accessories, my factory has more than ten years of production experience, to solve the rope in the process of winding rope, rope biting major problems.



The basic information
name  Wire Rope Winch Drum
the alias Wire Rope Winch Drum
origin Western Europe
use Vertical and horizontal conveying of materials in construction
classification Upper rotary tower and lower rotary tower



Advantages of LEBUS GROOVE

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.


Product Introduction

The LBS grooved winch drum is designed and produced specifically to meet the application for which is used. According to the rope’s diameter,length and construction type,we can confirm groove pattern.



The Characteristics Of The Grooves

1. It has specifically groove to make wire rope spooling orderly and uniform strength on every layer.

2. It can be calculated the exact forces that the rope imposed on the drum.

3. The spooling is totally under control,which prevents lower layers being crushed or pinched by upper layers

4. With the groove,the continuous groove in the drum is parallel to the flange except for two crossover points on each Revelution where the groove moves across the drum half a pitch to give a pull pitch of movement for each pitch.



Design Parameters Of Wire Rope Winch Drum

1. Drum diameter

2. Width between flanges

3. Wire rope or cable diameter

4. Rotation direction of wire rope: left and right

7. Material of the drum

8. Diameter of flange

9. Maximum working load of wire rope

10. The maximum capacity of the wire rope/cable

11. The position angle of the drum and the fixed pulley

12. Rope entry mode

13. If possible, provide detailed drum drawings:

Note: The drum is divided into integral type and split type, the Integral need drawing processing.

The split need inner diameter, outer diameter, length, the diameter of the wire rope, the direction of the rope groove (left or right)



Extended information

1, the winch must be set according to the specification requirements. Its specification net height is not less than 2.0 meters, net width is 2.4 meters, net depth is 2.0 meters. The roadway along the air supply is determined according to the actual situation of the roadway, and the principle is not to affect the safe operation.
2, winch construction as far as possible to use pick excavation, according to the different support type of roadway can be used to support wooden shed or I-steel shed. Anchor mesh support is used when the roof is intact, and scaffolding support is used when the roof is broken
3, 11.4KW small winch foundation should use concrete pouring, its basic specification is 1.0×1.0×1.0 meters. Concrete cement, sand, stone (melon seed pieces) mix ratio of 1:2:2; Water cement ratio is 0.4.
4, the winch used scaffolding support, from the outside to the frame, between the shed and the shed with support wood or pull rod connected into a whole, waist, help to be strict back solid. The distance between the shed shall not exceed 0.7 m. When anchor mesh support is used, the spacing of bolt rows is 800×800mm.
5. The winch motor should be installed in the inner side of the small winch nest, and the operating space shall not be less than 0.8 meters; The operation button is on the shelf, and the switch is placed neatly and shall not hinder the operation of personnel.
6, other provisions in accordance with the operation procedures.

Outline Structure Of Drawing



500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery 0



Processing Technic

500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery 1



500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery 2500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery 3500m Rope Capacity Winch Drum For Lifting Equipment Or Pulling Machinery 4

Contact Details
Hebei Junke Machinery Technology Co.,Ltd

Contact Person: Marie

Tel: 86+13315131859

Fax: 86-311-66692276

Send your inquiry directly to us (0 / 3000)
