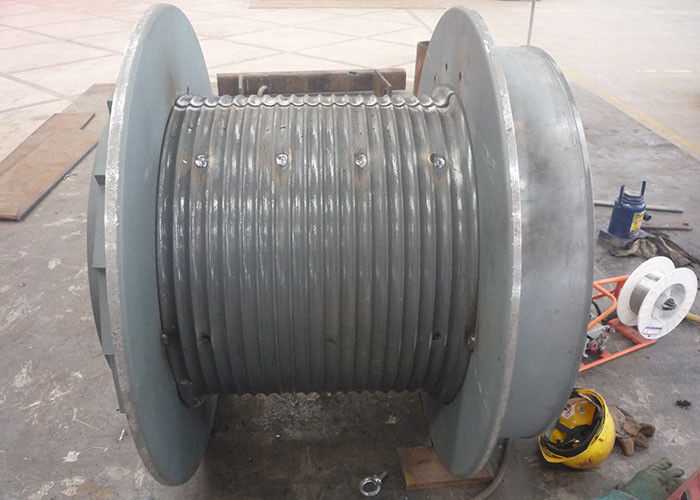

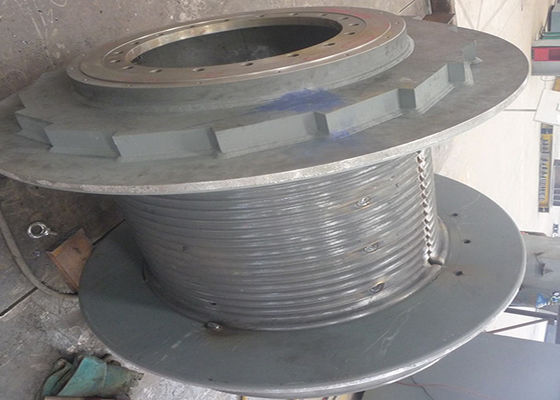

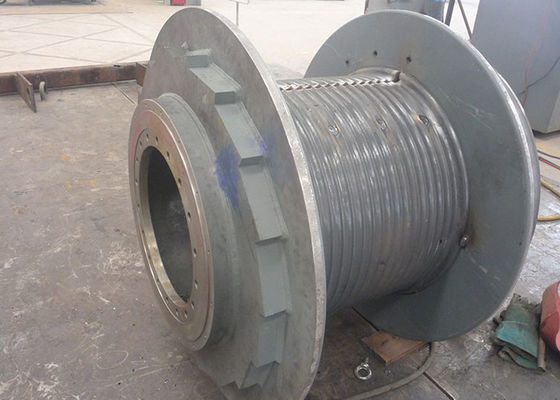

Q355D Steel 300m Cable Winding Drum, Main Components Of Tower Crane

Q355D Steel 300m Cable Winding Drum, Main Components Of Tower Crane
Q355D Steel 300m Cable Winding Drum, Main Components Of Tower Crane Q355D Steel 300m Cable Winding Drum, Main Components Of Tower Crane Q355D Steel 300m Cable Winding Drum, Main Components Of Tower Crane

Large Image :  Q355D Steel 300m Cable Winding Drum, Main Components Of Tower Crane

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Name: Rope Winch Drum Application: Tower Crane Wire Rope Winch
Material: Steel Q355D Rope Capacity: 300M
Rope Groove Type: Lebus Grooves Warranty: 1Year
Rated Speed: As Per Customers Requirement Weight: 1800kgs
Rope Diameter: 20mm Delivery Time: 30days
Highlight:

steel cable winding drum

,

300m cable winding drum

,

tower crane cable winding drum

Q355D Steel 300M Cable Winding Drum, Main Components Of Tower Crane

Product Introduction

Grooved rope Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc

Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...

Ambient Temperature: -40 ° C To +45 ° C

Stroage Ambient Temperature: -40 ° C To +50 ° C

Groove Type of Drum: Spiral Grooves or Lebus Grooves

The Rotation Direction of The Drum: Lefthand or Righthand

Processing method: Machine Work

Wire Rope Diameter: 3 MM~100 MM

Processing Equipment: CNC machining center

The Characteristics Of The Grooves

1. It has specifically groove to make wire rope spooling orderly and uniform strength on every layer.

2. It can be calculated the exact forces that the rope imposed on the drum.

3. The spooling is totally under control,which prevents lower layers being crushed or pinched by upper layers.

4. With the groove,the continuous groove in the drum is parallel to the flange except for two crossover points on each Revelution where the groove moves across the drum half a pitch to give a pull pitch of movement for each pitch.

Tower crane winch

Tower crane is referred to as tower crane, also known as tower crane, originated in Western Europe. A rotating crane with arms mounted on top of a towering tower. Large working space is mainly used for vertical and horizontal conveying of materials and installation of building components in building construction. It is composed of metal structure, working mechanism and electrical system. The metal structure includes tower body, boom and base. The working mechanism has four parts: lifting, luffing, turning and walking. Electrical system includes motor, controller, power distribution cabinet, connecting circuit, signal and lighting device, etc.

Technical parameter

Pull force(Kn) number of layers drum capacity drum diameter rotation direction
10 2 30m 350mm left or right
30 3 35m 500mm left or right
50 3 50m 700mm left or right
80 4 75m 800mm left or right
150 5 80m 800mm left or right



Product information

Product name
rope winch drum
Drum Quantity Single Or Double
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M



Product application

a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc
b,The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc

Our efforts

In the process of production and operation, we adhering to the "pursuit of excellence, excellence" concept and deep cooperation with domestic and foreign universities, research institutes, formed a "production, use, collaborative innovation" model of development, rigorous scientific method and the specialization of production, the combination of constantly absorbing new technology improved product of research and development, producing a batch of and a batch of high quality products suitable for the market.



About ours

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough. In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.
