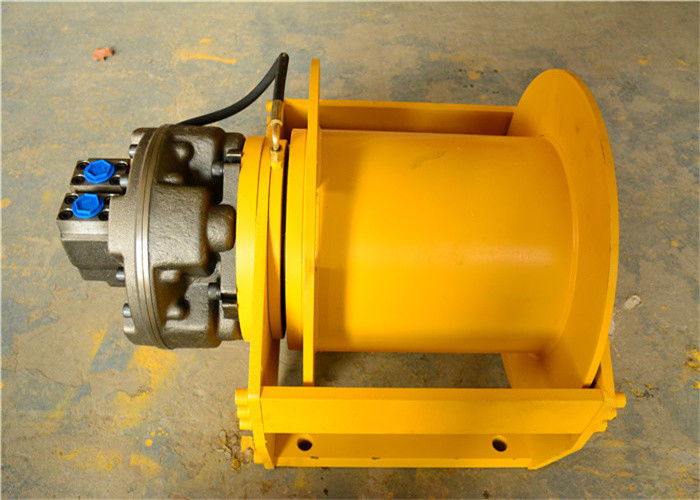

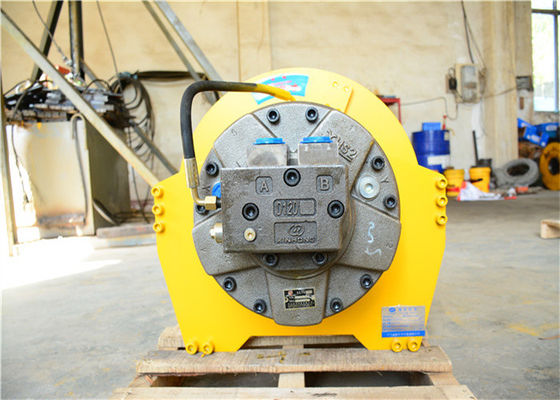

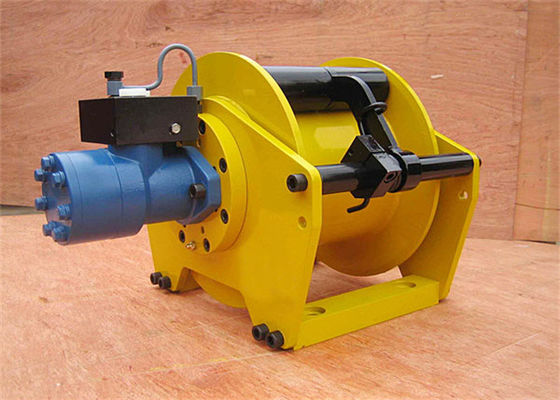

CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining

CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining
CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining

Large Image :  CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Export Cases
Delivery Time: 20-30 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Product Name: Hydraulic Crane Winch Material: Steel Q355B
Lifting Speed: 1-60m/min Produce Equipment: CNC Center
Rope Capacity: 55-2000M Application Range: Crane
Customization: Yes Price: Negotiation
Color: As Customer Pulling Force: 3-15Ton
High Light:

CCS Hydraulic Crane Winch

,

10 KN Hydraulic Crane Winch

,

10 KN hydraulic anchor winch

Non-Standard Aolly Steel Smooth Drum Hydraulic Crane Winch For Mining





structure

It is mainly composed of hydraulic motor (low speed or high speed motor), hydraulic normally closed multi-disc brake, planetary gear box, clutch (optional), drum, supporting shaft, frame, rope press (optional) and so on.



characteristics

Hydraulic motor has high mechanical efficiency, large starting torque, and can request according to the working condition of flow distribution with different, also can design according to customer's need valve group directly integrated in the motor oil distribution, such as belt balance valve, the overload valve, shuttle valve, high pressure control reversing valve or other performance of the valve group, brake, planetary gear box installed directly in the drum, Drum, support shaft, frame design according to mechanical requirements, the overall structure is simple and reasonable and has enough strength and rigidity.



Product Outline Drawing:

CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining 0



Product parameters



Model

Pull force

(KN)

Rope speed

(m/min)

Drum bottom

Diamete

(mm)

Difference of working pressures

(Mpa)

Rope capacity (mm)

Diameter of steel rope

(mm)

Model of

hydraulic motor

LBSW-DN10-10-00

10 0-40 250 13 100 10 C2.5-5.5
LBSW-DN12-18-00 12 0-40 250 12.5 100 12 C2.5-5.5
LBSW-DN14-20-00 20 0-35 300 12 100 14 C2.5-5.5
LBSW-DN15-30-00 30 0-30 350 14 100 15 C3-5.5
LBSW-DN22-65-00 65 0-35 550 15 200 22 C5-5
LBSW-DN24-80-00 80 0-30 600 16 200 24 C5-5.5
LBSW-DN30-120-00 120 0-30 750 16 200 30 C7-5.5
LBSW-DN38-180-00 180 0-30 860 16 200 38 C7-5.5



Main Export Markets:

Asia / Australasia /Central / South America / Eastern Europe / North America / Western Europe



FAQ:



Q1:What's your terms of payment?

A. T/T 50% deposit and 50% before delivery. we will show you the photos of products and packages before your pay the balance.

Q2:What's your terms of delivery?

A. EXW, FOB CIF CFR etc

Q3:How about your delivery time?

A. Generally,it will take about 10-30 days after receive your advance payment.The specfit delivery time depends on your order.quantitty.

Q4:Can you produce according to the samples?

A. Yes, we can produce by your sample and technical drawings, we can build mold and fixtures.

Q5: What's your sample policy?

A. We can supply sample, but the customer have to pay the sample cost and courier cost.

Q6: Do you test all your goods before delivery?

A. Yes, we have 100% test before delivery.





Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.



When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.



Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the

Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,

Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.



CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining 1



CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining 2



CCS Approval Smooth Drum 10 KN Hydraulic Crane Winch For Mining 3
