Product Details:
Payment & Shipping Terms:
|

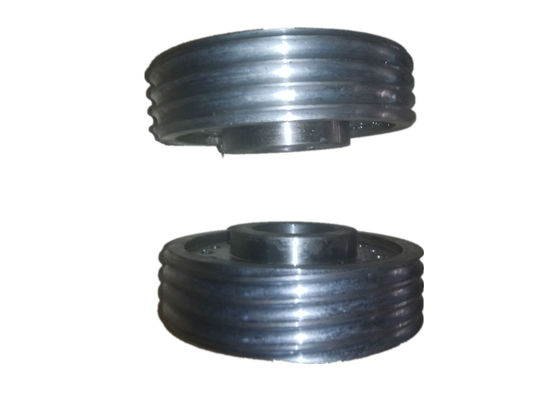

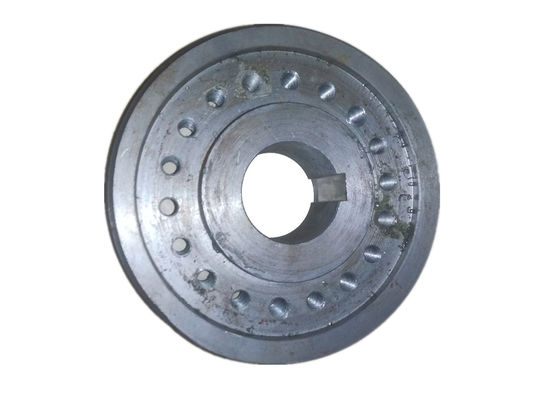

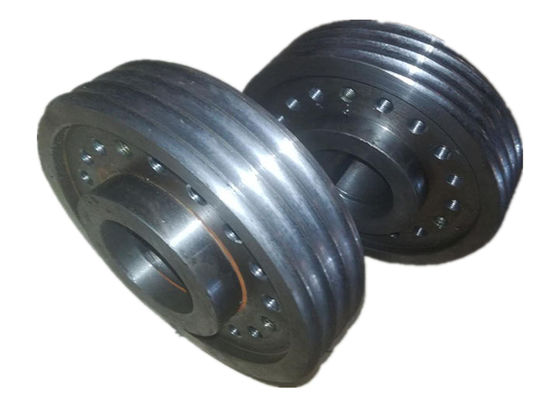

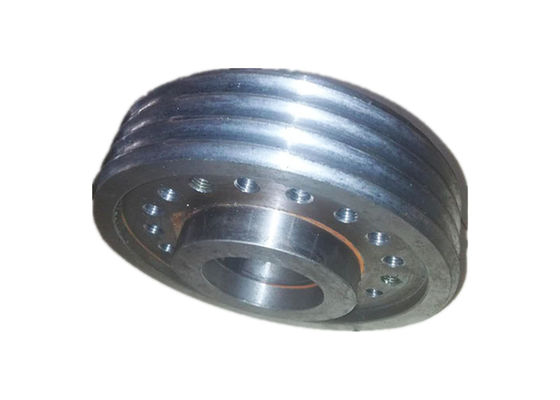

| Product Name: | Grooved Winch Drum | Material: | Steel |
|---|---|---|---|
| Groove Type: | Special Grooved | Surface Treatment: | Hot Spray Zinc |
| Surface Color: | Gray | Structure: | Welded |
| Dia.of Rope: | 6mm | Warranty: | 12months |
| Use: | Assembly Winch | Rope Capacity: | 50m |
| High Light: | 50m Grooved Winch Drum,High Polymer Grooved Winch Drum,High Polymer metal cable drum |
||
Q1: What are the payment terms?
A: We usually accept payment by T/T, L/C, Western Union or paypal.
Q2 : Can any of the products be custom imprinted?
A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to customize for you.
Q3: This is my first time to import, how can I trust your company and ensure to get the goods if I order from you?
A: We are alibaba legitimate certification company (VIP), and we support payment terms like L/C, Escrow, to ensure your safety.
Q4: How to ensure that I received the machine undamaged?
A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!
Q5: Where will the orders be shipped from?
A: It will ship from the main ports China. And We will find the shipping company which will offer the best and most economical freight for our customers.
Q6. how long is the machine making time?
--- For small portable water well drilling machine , which making time is about 5-7 days after receiving your deposit.
--- For some big size water well drilling machine, which making time is about 10-15 days after receiving your deposit.
| No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
| 1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
| 2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
| 3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
| 4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
| 5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
| 6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
Groove Drum Composition: Drum core, Flanges, Shaft, Etc
Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
