Product Name: | Multilayer Winding Rope Winch Drum | Drum Core Material: | 16Mn |
---|---|---|---|
Drum Groove Type: | Special Groove Or Spiral Groove | Application: | Engineering Machinery |
Specifications: | Customized | Environment: | Outdoor |
Color: | Gray | Drive: | Hydraulic |
Function: | Wire Rope Winding | Layer: | 1~15 Layers |
Highlight: | CCS grooved wire rope drum,Multilayer grooved wire rope drum,CCS steel cable drum |
The rope winch drum includes: drum core, flange, brake disc, rope clamps, rope blocking device and bolts etc.

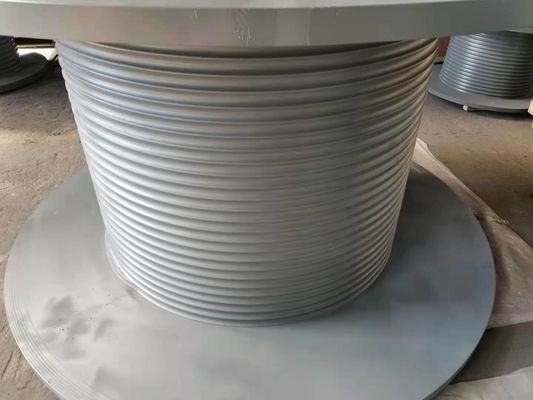

IWinch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
The winding of steel wire rope on the drum is divided into single layer and multi-layer. Single layer winding means that only one layer of steel wire rope is wound on the drum, which is easy to control; The multi-layer drum is used for winding multi-layer steel wire rope on the drum, which is used for occasions where the lifting height is particularly large or the mechanism is particularly compact. This is relatively difficult, mainly due to the rope disorder in the later stage of multi-layer winding.
The Lebus rope groove has obvious advantages in the neat winding of multi-layer steel wire rope compared with the general non rope groove (smooth) drum and spiral rope groove drum. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.
RATED PULL |
8T |
WIRE ROPE DIAMETER |
22mm |
LAYERS |
6 |
ROPE CAPACITY |
260M |
GROOVE TYPE |
LEBUS GROOVE |
GROOVE DIRECTION |
LEFT-HAND |
NUMBER OF TURNS | 19 TURNS | MATERIAL | 16Mn / Q355B |
GROOVE BOTTOM DIAMETER | 730mm | NET WEIGHT OF THE DRUM | 710KG |
