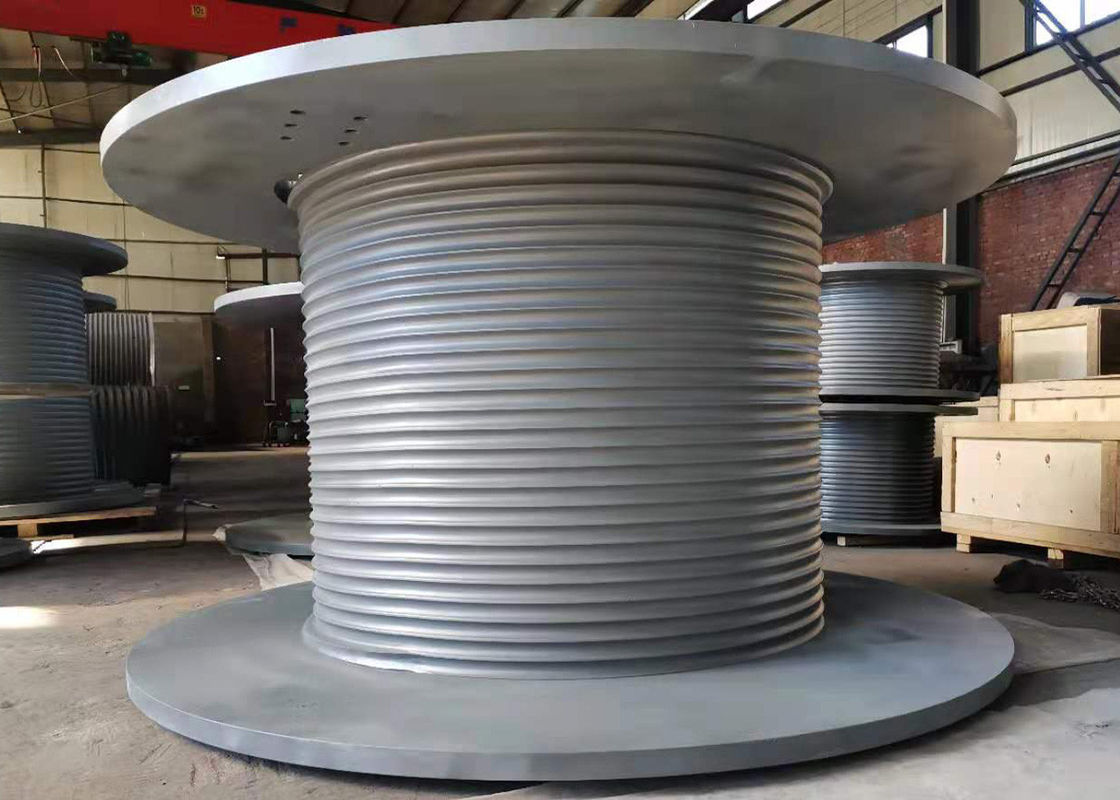

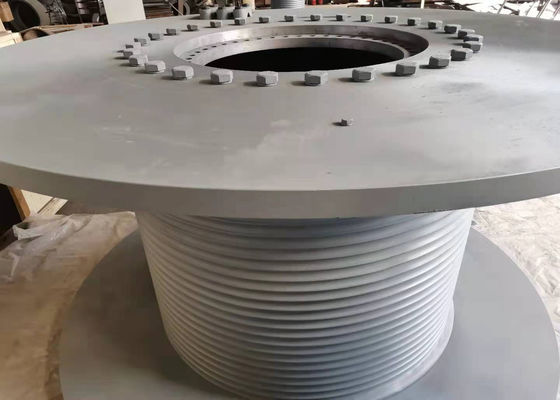

CCS Approval 30mm Wire Rope Winch Drum For Lifting Machinery

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

CCS Approval 30mm Wire Rope Winch Drum For Lifting Machinery

CCS Approval 30mm Wire Rope Winch Drum For Lifting Machinery
CCS Approval 30mm Wire Rope Winch Drum For Lifting Machinery CCS Approval 30mm Wire Rope Winch Drum For Lifting Machinery

Large Image :  CCS Approval 30mm Wire Rope Winch Drum For Lifting Machinery

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export standard wooden case
Delivery Time: General order 20-40 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Pieces Per Month
Detailed Product Description
Application: Hoisting Material: Q355D
Rope Capacity: 300M Rope Groove Type: Lebus Grooves
Power Source: Hydraulic Warranty: 12 Months
Rated Speed: As Per Customers Requirement Weight: 1800kgs
Color: Gray Or As Your Demand Rope Diameter: 30mm,As Demand
Highlight:

CCS Rope Winch Drum

,

30mm Wire Rope Winch Drum

,

30mm industrial cable drum

Lebus Grooves 30mm Wire Rope Winch Drum For Lifting Machinery





Product Introduction

The LBS grooved winch drum is designed and produced specifically to meet the application for which is used. According to the rope’s diameter,length and construction type,we can confirm groove pattern.



The Characteristics Of The Grooves

1. It has specifically groove to make wire rope spooling orderly and uniform strength on every layer.

2. It can be calculated the exact forces that the rope imposed on the drum.

3. The spooling is totally under control,which prevents lower layers being crushed or pinched by upper layers

4. With the groove,the continuous groove in the drum is parallel to the flange except for two crossover points on each Revelution where the groove moves across the drum half a pitch to give a pull pitch of movement for each pitch.



Design Parameters Of Wire Rope Winch Drum

1. Drum diameter

2. Width between flanges

3. Wire rope or cable diameter

4. Rotation direction of wire rope: left and right

7. Material of the drum

8. Diameter of flange

9. Maximum working load of wire rope

10. The maximum capacity of the wire rope/cable

11. The position angle of the drum and the fixed pulley

12. Rope entry mode

13. If possible, provide detailed drum drawings:

Note: The drum is divided into integral type and split type, the Integral need drawing processing.

The split need inner diameter, outer diameter, length, the diameter of the wire rope, the direction of the rope groove (left or right)



Outline Structure Of Drawing



CCS Approval 30mm Wire Rope Winch Drum For Lifting Machinery 0



Processing Technic

CCS Approval 30mm Wire Rope Winch Drum For Lifting Machinery 1
