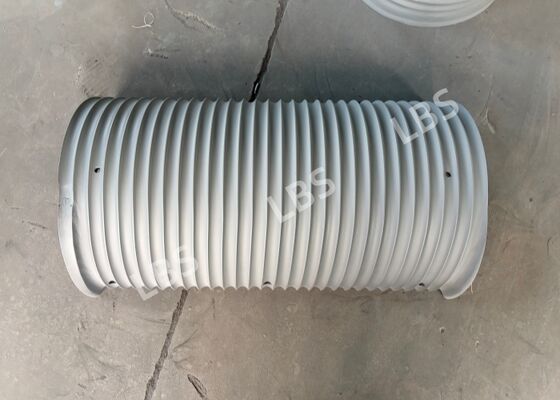

Left-hand 60° Lebus Groove Sleeve For 26mm Wire Rope

1.Product Description

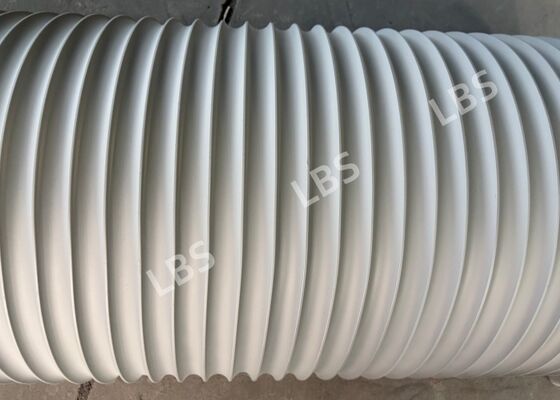

This Lebus groove sleeve is made of Grade 45 carbon steel, with left-hand 60° Lebus segmented groove profile, specially matched for Ø26 wire rope. It is the key lagging part for multi-layer spooling winch drums. All grooves are CNC machined strictly per Lebus spooling principle. Lifting holes are designed for plug welding onto drum shell. After machining, all burrs are removed and sharp edges are broken. Unspecified dimensional tolerances follow GB/T1804-m and geometric tolerances follow GB/T1184-K. It guides wire rope to wind neatly across multiple layers smoothly.

2.Product Parameter

3.Product Advantage

• Stable multi-layer spooling: The special Lebus crossover design avoids rope overlapping, crushing and biting, greatly extending wire rope service life.
• Solid material: Grade 45 steel features good mechanical strength and wear resistance for heavy-duty cycles.
• Easy installation & low maintenance: Fix by plug welding. Only replace the groove plate instead of the whole drum when worn, saving cost.
• Precise CNC machining: Accurate groove radius, pitch and angle for perfect rope contact.
• Flexible customization: Rope size, groove angle, left/right hand, overall length can be customized.

4.Application

It is widely used for offshore winches,marine cranes,oil drilling winches,construction hoists,umbilical cabie storage drums and other multi-layer wire rope spooling equipment. Suitable for offshore platforms,ports,mining and heavy lifting industries,also perfect for existing drum retrofitting projects.
