6mm Pitch LBS Drum Welded Connection 90mm PCD 1st Diameter

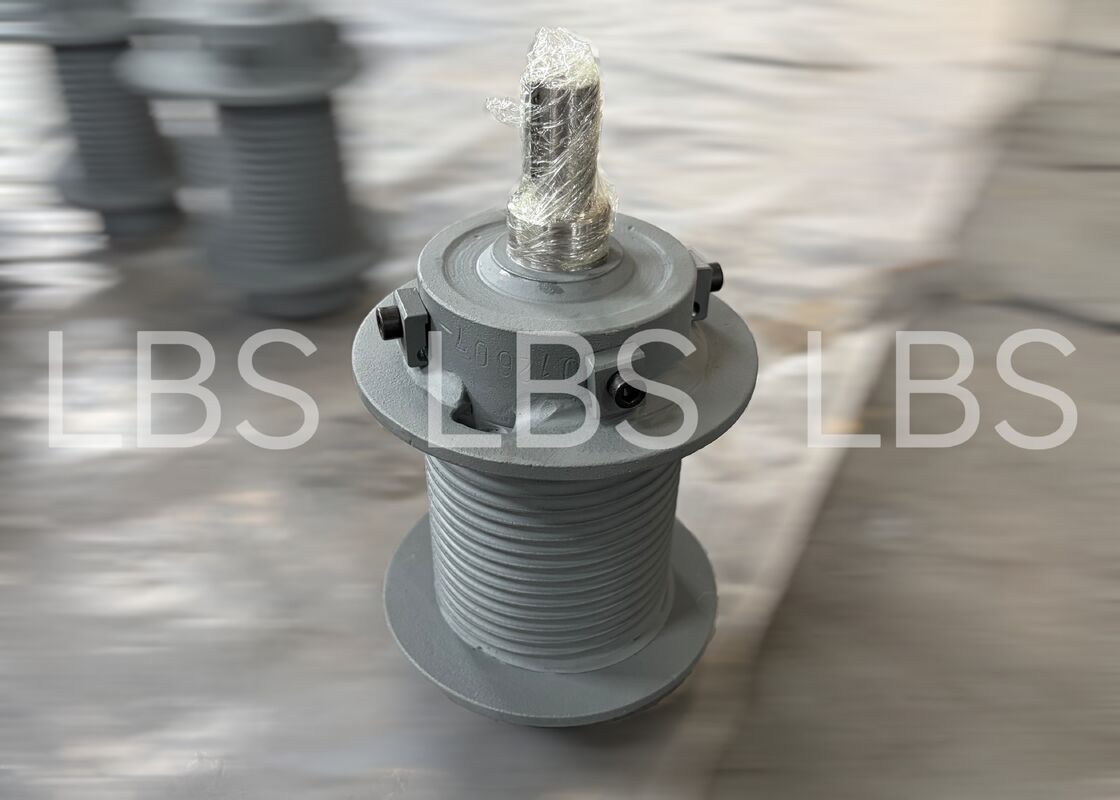

Large Image : 6mm Pitch LBS Drum Welded Connection 90mm PCD 1st Diameter

Product Details:

Place of Origin:	Shijiazhuang,Hebei Province
Brand Name:	LBS
Certification:	CCS, ABS, ISO9001, CCC
Model Number:	LBSD Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	30 to 40 working days, depends on order amount and specification
Payment Terms:	L/C,T/T
Supply Ability:	300 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	LBS Drum	Key Word:	Winch Drum
Material:	Q235B	Groove Type:	LBS Groove
Color:	As Per Your Requirements	Warranty:	1 Year

6mm Pitch LBS Drum Welded Connection 90mm PCD 1st Diameter

Product description

Our mini custom wire rope drum features compact size and lightweigh construction for easy integration into light-duty cranes and servo winches. Machined with Lebus grooves, it supports orderly multi-layer rope winding to prevent rope crossover and abrasion. All groove parameters can be customized as per your technical requirements.

Technical parameters

Technical parameters
Spooling direction	Left-hand or right-hand
Pitch	6mm
Root diameter	5mm
Groove depth	2.5mm
Number of grooves	16
Winding layers	Multiple layers
Connection method	Welded connection
PCD 1st diameter	90mm
Length of drum	170mm
Application	Cranes

Advantages

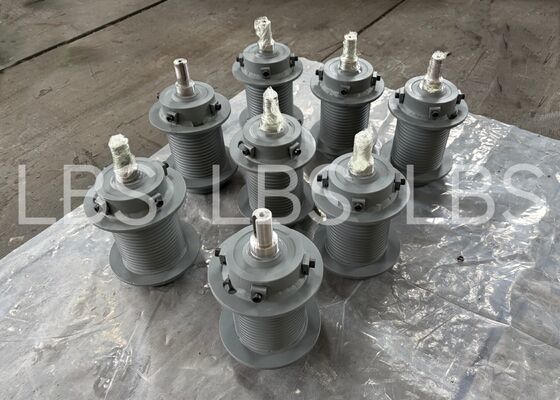

6mm Pitch LBS Drum Welded Connection 90mm PCD 1st Diameter

Service

All products purchased from our company come with a 1-year warranty.
In case of quality defects within the warranty period, our company provides free maintenance service.
Every machine will undergo testing and commissioning before delivery for immediate use upon receipt.
Operation videos and user manuals will be provided to customers for proper equipment operation. Our after‑sales support is available anytime, and we will resolve your issues promptly.
Please feel free to contact us whenever you encounter any problems during product operation.
Professional technical consultation will be offered for any operational issues.
A full range of commonly used spare parts are available all year round.
