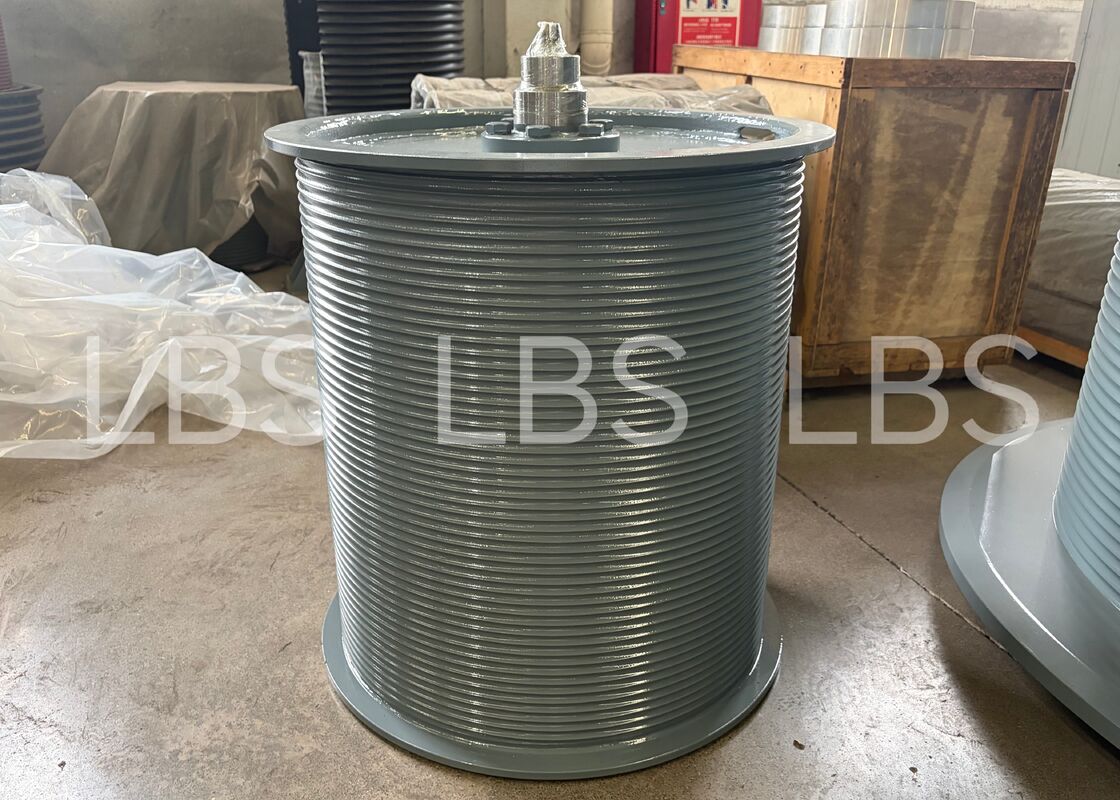

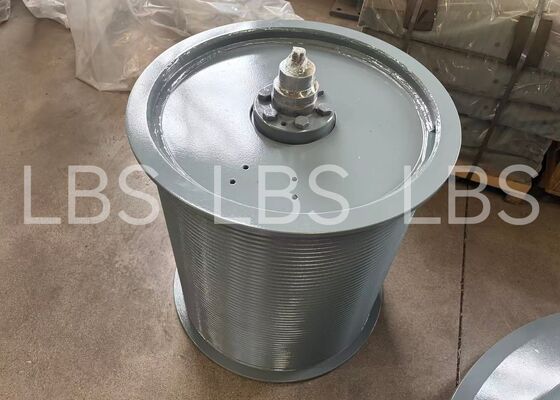

99mm Rope Capacity Luffing Drum Lebus Groove 12mm Rope Diameter

99mm Rope Capacity Luffing Drum Lebus Groove 12mm Rope Diameter
99mm Rope Capacity Luffing Drum Lebus Groove 12mm Rope Diameter 99mm Rope Capacity Luffing Drum Lebus Groove 12mm Rope Diameter

Large Image :  99mm Rope Capacity Luffing Drum Lebus Groove 12mm Rope Diameter

Product Details:
Place of Origin: Shijiazhuang,Hebei Province
Brand Name: LBS
Certification: CCS, ABS, ISO9001, CCC
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amount and specification
Payment Terms: L/C,T/T
Supply Ability: 300 Sets Per Month
Contact Now
Detailed Product Description
Product Name: Luffing Drum Keyword: Lebus Drum
Brand: LBS Material: Q355D
Customization: Yes Warranty: 1 Year

99mm Rope Capacity Luffing Drum Lebus Groove 12mm Rope Diameter


Product description


As an essential winch part for boom luffing, the luffing drum is manufactured with high-strength steel plate or cast steel. Optional helical grooves and Lebus grooves are available to meet single-layer or multi-layer winding demands for various cranes.


Technical parameters


Technical parameters
Material Q355D
Structure Drum barrel, flange, key sleeve
Weight 248kg
Groove type Lebus groove
Connection type Welded connection
Rope diameter 12mm
Rope capacity 99m
Drum inner diameter 570mm
Groove bottom diameter

602mm
PCD 1st diameter

610mm
Supply unit

Drum assembly, winch assembly



Application

Luffing drums are core components of crane luffing mechanisms. They wind and store luffing wire ropes to adjust the elevation angle of the boom and change the working radius.

They are widely applied in the following equipment:
    1. Mobile truck cranes
    2. Crawler cranes
    3. Luffing jib tower cranes
    4. Portal cranes
    5. Rubber-tyred gantry cranes
    6. Floating cranes & offshore engineering cranes
    7. Special construction machinery, such as bridge erecting machines and rescue cranes
Supporting industries: construction machinery OEM, crane overhaul & maintenance, winch assembly supporting, port handling equipment, wind power installation engineering.


Machining Operation

99mm Rope Capacity Luffing Drum Lebus Groove 12mm Rope Diameter
