Super Duplex Stainless Steel Drum Assembly Bolted Connection For Offshore Operations

Large Image : Super Duplex Stainless Steel Drum Assembly Bolted Connection For Offshore Operations

Product Details:

Place of Origin:	Shijiazhuang,Hebei Province
Brand Name:	LBS
Certification:	CCS, ABS, ISO9001, CCC
Model Number:	LBSD Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	30 to 40 working days, depends on order amount and specification
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	300 Sets Per Month

Contact Now

Detailed Product Description

Product Name:	Drum Assembly	Material:	2507 Super Duplex Stainless Steel
Customization:	Available	Warranty:	1 Year
MOQ:	1 Set	Groove Type:	Lebus Groove
Rope Capacity:	200m	PCD 1st Layer:	512mm

Super Duplex Stainless Steel Drum Assembly Bolted Connection For Offshore Operations

Product Description:

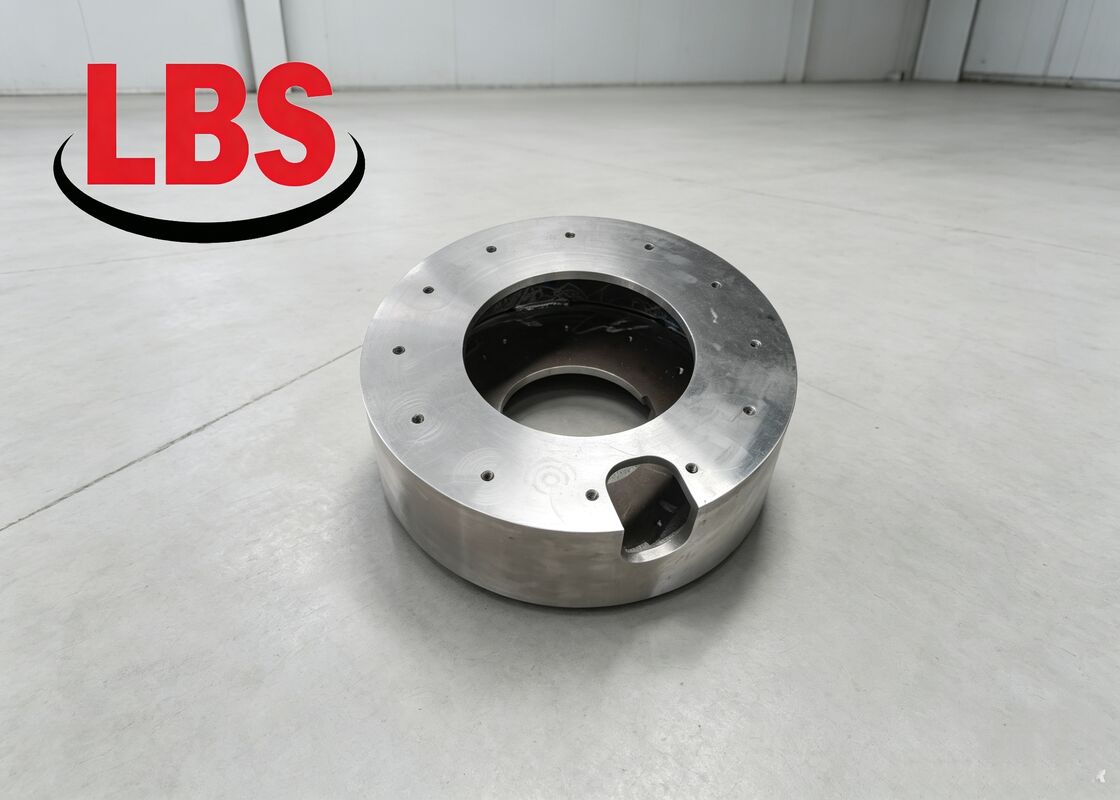

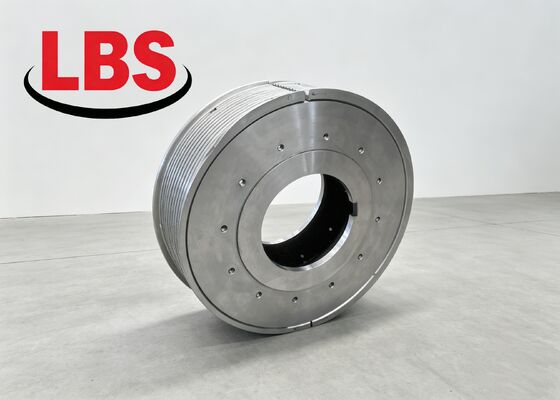

The first picture shows a smooth-surface drum, while the second displays a matching drum sleeve. The drum and the drum sleeve are firmly assembled together by bolts.

Manufactured from 2507 duplex stainless steel, this assembly features excellent corrosion resistance and high strength. It is specially designed and widely applicable for harsh offshore operation environments, effectively protecting the main drum body and extending the service life of the winch equipment.

Technical Parameters:

Technical Parameter
Wire rope diameter	12mm
Groove bottom diameter	500mm
PCD 1st layer	512mm
Number of grooves	12.5
Number of rope layers	9
Rope capacity	200m
Groove type	Lebus groove
Spooling direction	Left-hand 40°
Mounting mode	Split bolted connection for smooth steel drums

Product Highlights:

Premium 2507 Super Duplex Material:
Ultra high seawater & chloride corrosion resistance, anti-pitting and anti-stress cracking, long service life in deep-sea marine environments.

Split Bolted Connection Design:
Modular grooved drum sleeves fit smooth steel drums, easy disassembly, partial segment replacement and on-site offshore equipment retrofitting.

Lebus Groove Winding Technology:
Neat multi-layer wire rope winding, prevent rope crossing, abrasion and crushing, greatly extend wire rope service life.

High Mechanical Performance:
Outstanding wear resistance, impact resistance and heavy load anti-fatigue performance for cyclic marine lifting work.

Wide Offshore Application:
Fit offshore drilling platforms, FPSO, offshore wind power, port cranes, marine engineering mooring & traction winch systems.

Full Customization Support:
Non-standard outer diameter, inner diameter, groove radius and flange sizes available based on customer drawings, stable year-round export supply.

Packing and Shipping:

Packaging:

1.Products are fixed firmly inside robust wooden crates to avoid collision damage during transit.

2. Foam padding lines the crate interior for additional shockproof protection.

3. All matching spare parts and accessories are fully contained within the package.

4. The crate is tightly sealed with heavy-duty packing tape to stop unauthorized tampering.

Shipping Arrangement:

1. We cooperate with trusted, well-established freight carriers to guarantee on-time and secure delivery.

2. Fragile & Handle With Care warning labels are affixed on the outer crate to remind carriers of the precision product inside.

3. A unique shipment tracking number will be supplied to you for real-time cargo status tracking.

Thanks to our rigorous packaging standards and reliable shipping solutions, your drum and sleeve products will arrive intact without defects.
