Product Details:
Payment & Shipping Terms:
|
| Product Name: | Polymer Nylon Drum Sleeve | Material: | Nylon |
|---|---|---|---|
| Groove Type: | Lebus Grooves | Product Status: | New |
| Surface Color: | Black | Connection Type With Drum: | Bolted |
| Dia.of Rope: | 4~60mm | Layers: | 2~20 Layers |
| Use: | Assembly Winch | Grooving Machining: | CNC Machining |
| High Light: | CCS Grooved Cable Drum,8mm Grooved Cable Drum,8mm wire rope drum |
||

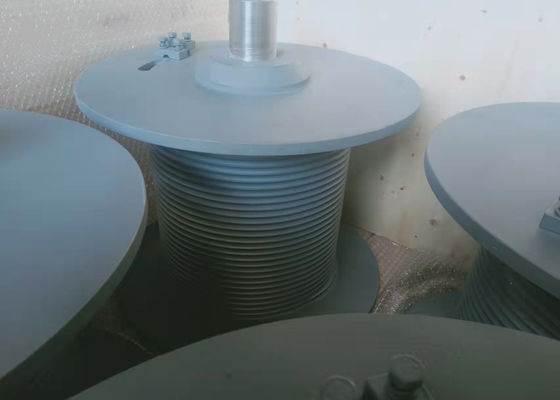

Winch, winding wire rope or chain with the drum to lift or pull heavy lifting equipment, also known as winch. Winch can be used alone, also can be used for lifting, road construction and mine lifting machinery components.The drum is one of the most important parts on the winch
LBS drum is a kind of groove for multi-layer winding of wire rope introduced from abroad. Because of this rope groove in the drum
Most of the circumferential section is kept parallel to the flange end face, only in a very small section and the flange end face intersection.
However, there is a phenomenon of turning, it is named "folding rope groove" too.
Years of practical use has proved that this kind of drum with special rope groove structure can well solve the difficulty of multi-layer winding rope
The double folding cable groove system ensures that the multi-layer winding wire rope on the drum is completely smoothly drawn into and rolled out of the drum.
This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.
When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.
Materials of The Sleeves:Steel or Polymer Nylon
1) Wire rope or cable diameter (mm)
2) The inner diameter of the sleeves? (or the outer diameter of the smooth drum)
3) The length of the sleeves? (or the distance between two flanges ,no wear plates)
4) Material of the drum sleeves
5) The rotation direction of the drum groove?
6) Type of rope entry
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) | Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, |
| ther name: | construction industry electric Rope winche to lift building materials |
| Hoist speed | 0.95-1.27m/s |
| Rotate speed | 720-960 r/min |
| Rope diameter | 3-30mm |
| Sling type | wire |
| Direction rotation | left or right |
| Application | hoist |
| Parameter | can be designed |
| Application | mining,oil drilling,or coal mine |
| Drum diameter | 900mm |
| Drum width | 600mm |
