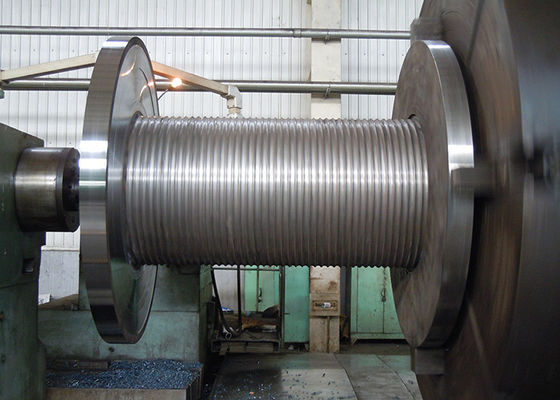

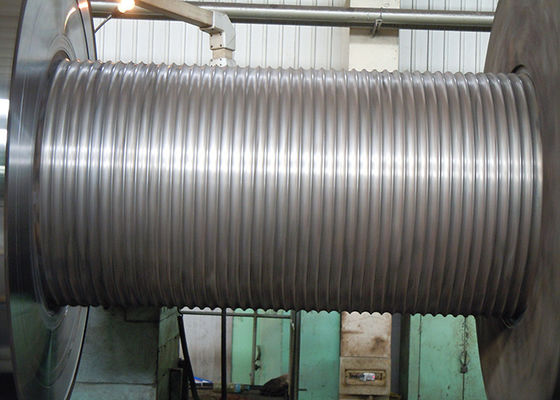

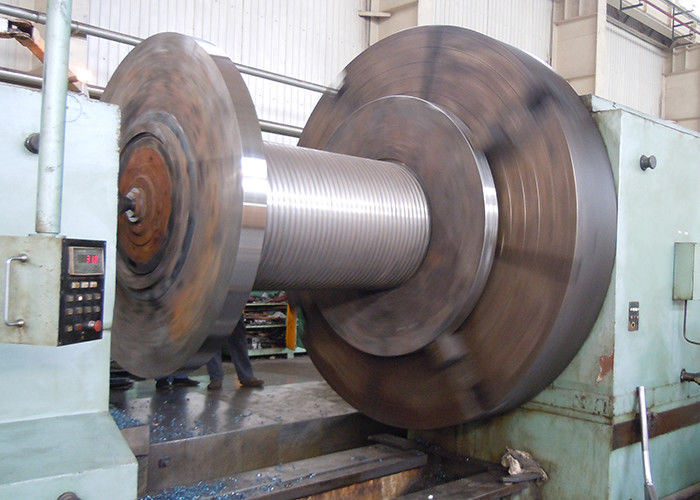

20 Layers Grooved Wire Rope Drum Customized for Assembly winch

20 Layers Grooved Wire Rope Drum Customized for Assembly winch
20 Layers Grooved Wire Rope Drum Customized for Assembly winch 20 Layers Grooved Wire Rope Drum Customized for Assembly winch 20 Layers Grooved Wire Rope Drum Customized for Assembly winch

Large Image :  20 Layers Grooved Wire Rope Drum Customized for Assembly winch

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Polymer Nylon Drum Sleeve Material: High Polymer
Groove Type: Lebus Grooves Product Status: New
Color: As Customer Connection Type With Drum: Bolted
Dia.of Rope: 4~60mm Layers: 1~20 Layers
Application: Assembly Winch Grooving Machining: CNC Machining
High Light:

20 Layers grooved wire rope drum


Customized grooved wire rope drum


20 Layers Cable Winch Drum

Wire Rope Winch Lebus Grooved Cable Drum Sleeves Can Be Customized



Advantage Sleeves

Generally, the tighter the wire rope is, the better it is wound. The wire rope should withstand at least 2% of the breaking load or 10% of the operating load as recommended by LeBus. Of course, for safety factor and wire rope design, must be prepared to withstand the destructive load.

The design and manufacture of folding rope groove drum should meet the special requirements of lifting operation, and the type of rope groove should adapt to the length, diameter and structure type of wire rope. Mechanical design, machining, design software, mechanical engineer, equipment management, welding, hydraulic, casting, sealing.


A kind of application on the winch cable system

A kind of application on the winch cable system, including the manipulation of the platform, with the cable drum, signal transmission device, tension device, and is used for configuration cable on the reel cable device, its characteristics is described in the drum by gear and at the end of the signal transmission device connected to the signal transmission device connected by a thick shaft encoder, encoder described through the transmission lines connected to the manipulation of the platform, The cable arrangement device relative is arranged with two bearings, one of the lateral support is arranged with a coupling and reducer, the reducer is arranged above the frequency conversion motor, frequency conversion motor is connected with the control platform through cable, the other lateral support is connected with the tension device through the sprocket; The guide shaft and lead screw are arranged between the two supports, and the guide shaft and lead screw are movably connected with a reciprocating sliding seat, and the reciprocating sliding seat is provided with a wire window through the cable.


Technical parameters and application:
No: Wire diameter(mm): Rotation direction Main drum
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch


Product Application:

1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc


The Characteristics of Lebus grooves

LBS groove in each circle inside the drum are composed of straight line groove and diagonal rope groove, and each circle straight wire rope groove and diagonal rope groove position is exactly the same. when the wire rope for multi-layer winding, through the diagonal rope groove fixed upper wire rope and the lower rope crossover point position, the crossover of the upper steel wire rope in the oblique line. in the straight rope groove,the upper steel wire rope completely falls into the grooves formed by two lower steel wire ropes, form line contact between ropes, the contact between the upper and the lower rope is stable,when the return line, step retaining ring with return flange on both ends of the drum,guide wire rope to climb smoothly and return, avoid the rope disorder caused by mutual extrusion. so The wire rope is orderly and smoothly transferred to the upper layer ,Realize multi-layer winding.


Product Advantage:

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lbs double fold rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.


Company introduction

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.


When the split type drum fence skin is installed, the split fence skin sleeve is wrapped on the smooth slotless drum, and is closely connected with the drum through bolts or welding, so that the original smooth surface of the drum outside the surface becomes the form of lebus double folding rope groove, which is convenient for the application of winch modification or replacement of the drum.


Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the

Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine,

Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment.



20 Layers Grooved Wire Rope Drum Customized for Assembly winch 0


20 Layers Grooved Wire Rope Drum Customized for Assembly winch 1
