Right-hand 40° Grooved Cable Drum Q355D Precision Lebus Groove

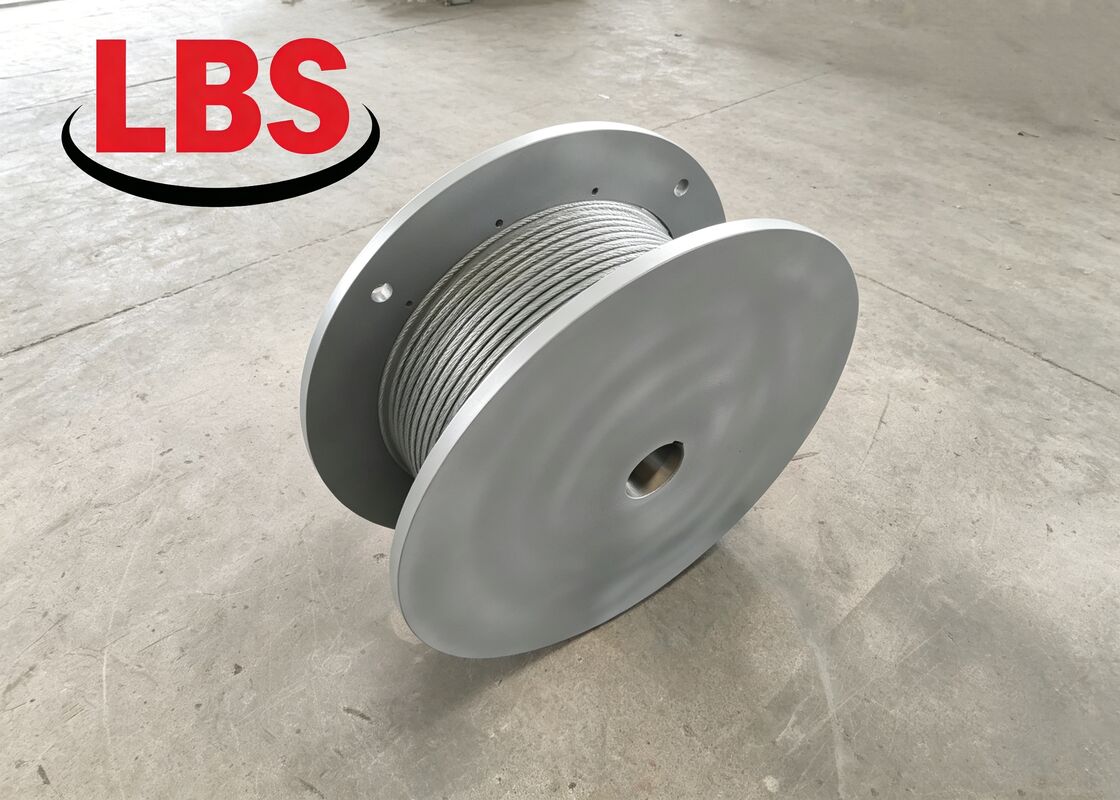

Large Image : Right-hand 40° Grooved Cable Drum Q355D Precision Lebus Groove

Product Details:

Place of Origin:	Shijiazhuang,Hebei Province
Brand Name:	LBS
Certification:	CCS,ABS,ISO9001, and CCC
Model Number:	LBSD Series

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	30 to 40 working days, depends on order amount and specification
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	300 Sets Per Month

Contact Now

Detailed Product Description

Name:	LBS Drum Assembly	Brand:	LBS
Keywords:	WIre Rope Drum, Winch Drum	Material:	Q355D Low Alloy High Strength Structural Steel
Groove Type:	Lebus Groove	MOQ:	1 Piece
Customization:	Available	Application:	Lifting, Hoisting

Right-hand 40° Grooved Cable Drum Q355D Precision Lebus Groove

Product Description:

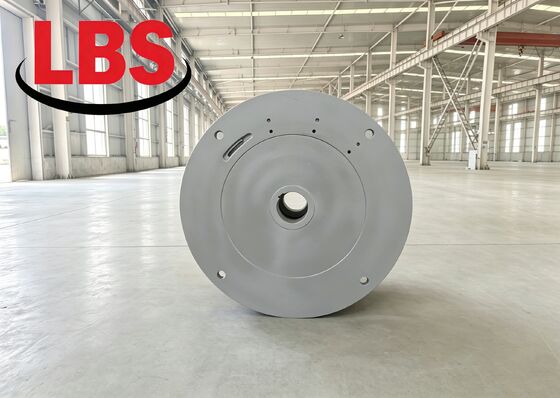

This is a compact‑size drum. The rope inlet is designed to enter from the flange as shown in the picture.The welding is firm and reliable with no defects such as missed welding. Stress‑relief treatment is carried out after welding.

We support non‑standard customization.Please feel free to consult us for any questions regarding our products.

Technical Parameters:

Technical Parameter
Wire rope diameter	26mm
Groove bottom diameter	1234mm
PCD 1st layer	1260mm
Pitch	27.45mm
Number of grooves	27.5
Number of rope layers	3
Rope capacity	320m
Groove type	Lebus groove
Spooling direction	Right-hand 40°
Rope entry	Through flange
Surface treatment	Epoxy primer+Polyurethane topcoat,color RAL7031

Advantages:

1. Guaranteed Raw Material Quality

We implement strict control over raw materials, covering carbon steel, low-alloy high-strength steel, polymer nylon and other materials to lay a solid foundation for reliable product performance.

2. Rigorous Production Processes

We accumulate rich experience in R&D and technological innovation, and can deliver complete system solutions for automated equipment industry.

3. Superior Product Quality

Supported by solid technical strength and a full set of advanced processing & testing equipment, we guarantee top quality of finished products.

4. Long Service Life

All goods undergo rigorous quality inspection before shipment to stabilize product performance and extend service lifespan.

5. Customized Solutions

We provide one-on-one professional customization services, developing products strictly according to customers’ unique technical requirements.

6. Premium After-Sales Service

All products come with a 12-month warranty. Our dedicated after-sales team offers timely and professional support globally.

FAQ:

• Q: What is the brand name of this product?

A: The brand name of this product is LBS.

• Q: Where is this product made?

A: This product is made in Shijiazhuang, Hebei, China.

• Q: What certifications does this product have?

A: This product is certified by CCS, ABS, ISO9001, and CCC.

• Q: What is the minimum order quantity for this product?

A: The minimum order quantity for this product is 1 piece.

• Q: Is the price of this product negotiable?

A: Yes, the price of this product is negotiable.

• Q: How is this product packaged?

A: This product is packaged in export standard wooden cases or pallets.

• Q: What are the payment terms for this product?

A: The payment terms for this product include T/T, L/C, and other options.
