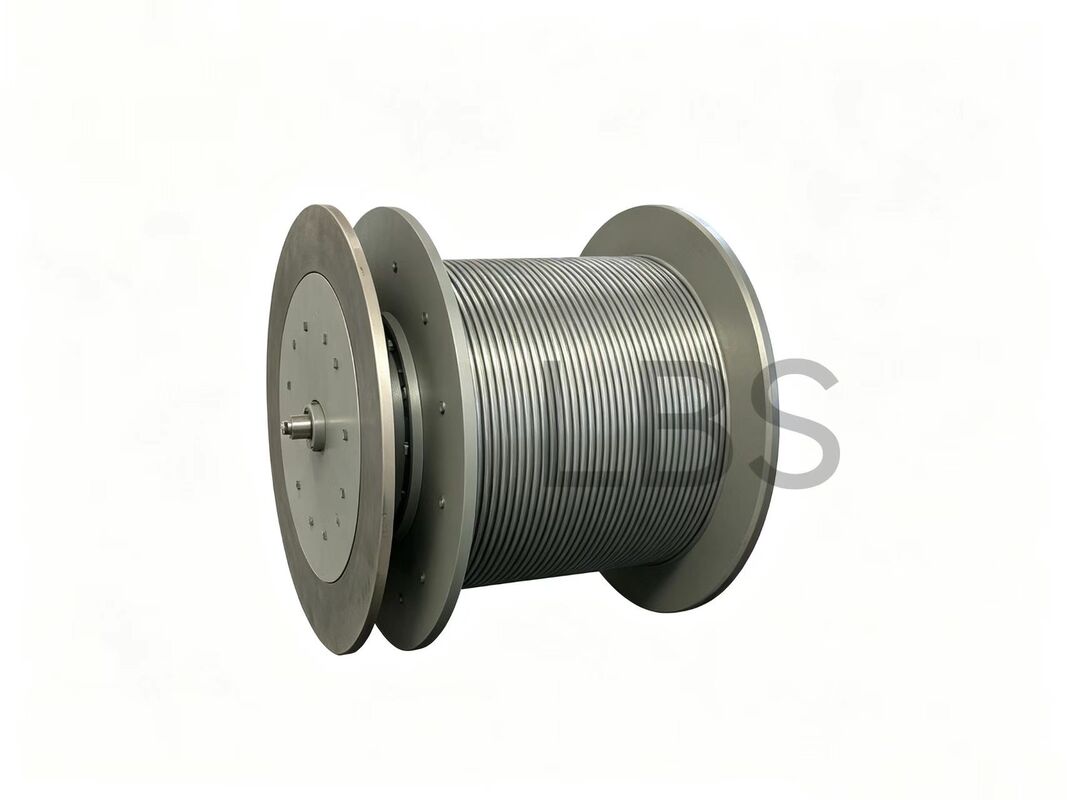

Q355D LBS Grooved Drum Bolting Connection For Tower Cranes

Customized  Carbon Steel Wire Rope Drum Grooved Double Winch Drum

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc

Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...

Ambient Temperature: -40 ° C To +45 ° C

Stroage Ambient Temperature: -40 ° C To +50 ° C

Groove Type of Drum: Spiral Grooves or Lebus Grooves

The Rotation Direction of The Drum: Lefthand or Righthand

Processing method: Machine Work

Wire Rope Diameter: 3 MM~100 MM

Processing Equipment: CNC machining center

Groove Drum Composition: Drum core, Flanges, Shaft, Etc

Processing: Rope drums with grooves cut directly into them.Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.

When the wire rope need to wind many layers, the lebus groove can fix the crossover point of the upper rope and the lower rope through crossed groove, which could control the crossover point and make it finished in the crossed groove. In the parallel groove,the upper wire rope can falls into the groove formed by two lower rope. It can form a stable structure between the upper wire rope and the lower wire rope. When the wire rope return to another sides,Both ends’ bead flange can guide wire rope to climb smoothly and return. This structure make our lebus groove realize multi-layer winding and avoid teh messy rope. However, the ordinary spiral groove only make the first layer smoothly winding, but it can not guide the second layer convolve smoothly back, which is especially easy to cause messy rope problems.

Q1.Are you a factory or a trading company?What can you provide?

We are a factory locates in industrial belt of Shijiazhuang City,our main products are hydraulic orbit motors,hydraulic winches, hydraulic brakes, hydraulic stee hole punchers, hydraulic steerings, etc.

Q2. I want to buy your product,how can I pay?

We support T/T,Paypal, Western Union.

Q3.How about the warranty?

We promise to supply high quality products and professional after-sales service.We can supply technical support as long as you need,beyond that, we also offer six months of warranty.

Q4.If we don't find what we want on your website, what should we do?

You can start a conversation to us or send us email about the descriptions and pictures of the products you need, We will check if we can supply.

Q5.Can we buy 1pc of each item for quality testing?

Yes, we understand quality test is important and we are glad to send 1pc for quality testing
