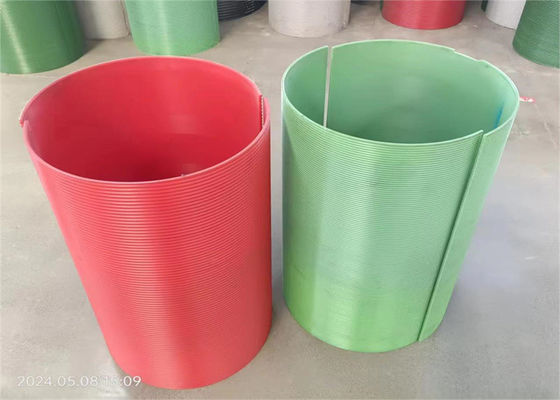

Customizable Nylon Cable Pulling Winch Grooved Lebus Drum Sleeve

Customizable Nylon Cable Pulling Winch Grooved Lebus Drum Sleeve
Customizable Nylon Cable Pulling Winch Grooved Lebus Drum Sleeve Customizable Nylon Cable Pulling Winch Grooved Lebus Drum Sleeve Customizable Nylon Cable Pulling Winch Grooved Lebus Drum Sleeve

Large Image :  Customizable Nylon Cable Pulling Winch Grooved Lebus Drum Sleeve

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Steel Drum Lebus Sleeves Material: Steel Q235/Q355B/Q355D/Q355E
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Surface Color: Gray Connection Type: Welded Or Bolted
Dia.of Rope: 2~80mm Layers: 2~20 Layers
Use: Assembly Winch Grooving Machining: CNC Machining
Color: Customization
High Light:

Nylon Cable Pulling Winch Lebus Sleeve

,

Customizable Lebus Sleeve

,

Customizable Grooved Lebus Sleeve

Polymer Nylon Cable Pulling Winch Grooved Lebus Drum Sleeve





Breif Description:

The LBS split-sleeve system is composed of a pair of outer shells that are bolted or welded onto a smooth drum to provide agrooving pattern.Either helical or LBS parallel grooves can be carved into the sleeves.

If the customer need split-sleeves, please provide us with more parameter details as follows



Product application:

As LBSS series winch grooved sleeves have the above characteristics, it has wide application range.It can be applied in the aviation, shipbuilding,offshore crane industry, oil field, coal,port marine platform,construction,railway and other heavy machinery field.





Product structure:

Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.



Product advantage:

the LBS Sleeve product is an excellent choice for those who require grooved sleeves for their winch drum. It is a versatile and reliable product that is designed to provide excellent result. The customized color options make it easy to match the product to any projects. The spooling device fit type ensures that the product is easy to use and provides reliable results. It's perfect for those who need to work with long ropes and want to ensure that they last as long as possible.

Product information

name High Efficient Tower Crane Drawworks Wire Rope Winch Drum lebus sleeve
 about grooving helical or LBS grooving
 drum diameter and length the sleeve must according to the drum parameter
rope diameter and length the grooving desiged by the rope parameter
 Material your required material
installation bolted or welding
 more information

the detailed drawing if possible


Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch



About company:

Early introduction the advanced technics form domestic and foreign,after years R&D,our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010.Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.
