Product Details:
Payment & Shipping Terms:
|
| Product Name: | Grooved Steel Drum Lebus Sleeves | Material: | Steel Q235/Q355B/Q355D/Q355E |
|---|---|---|---|
| Groove Type: | Lebus Grooves | Surface Treatment: | Spray Zinc Rich Primer |
| Surface Color: | Gray | Connection Type: | Welded Or Bolted |
| Dia.of Rope: | 2~80mm | Layers: | 2~20 Layers |
| Use: | Assembly Winch | Grooving Machining: | CNC Machining |
| Color: | Customization | ||
| Highlight: | Polymer Nylon Lebus Sleeve,Cable Pulling Winch Lebus Sleeve,Polymer Nylon Grooved Lebus Sleeve |
||

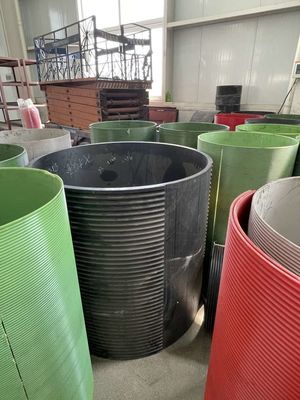

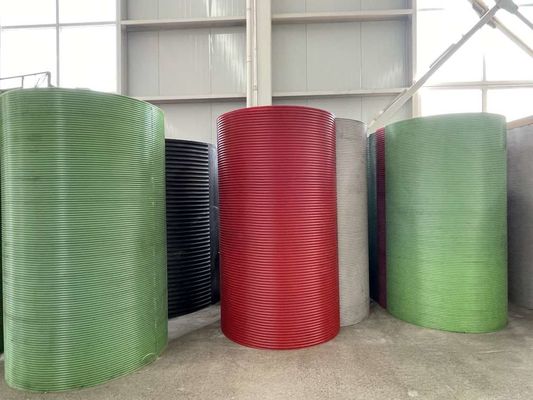

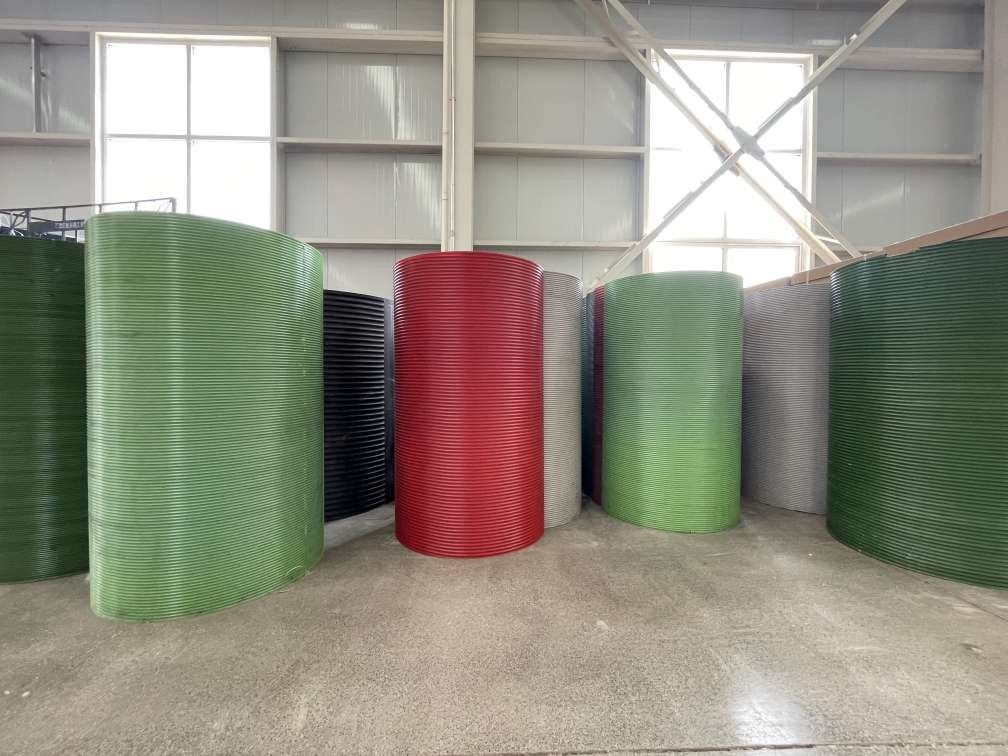

The LBS split-sleeve system is composed of a pair of outer shells that are bolted or welded onto a smooth drum to provide agrooving pattern.Either helical or LBS parallel grooves can be carved into the sleeves.
If the customer need split-sleeves, please provide us with more parameter details as follows
As LBSS series winch grooved sleeves have the above characteristics, it has wide application range.It can be applied in the aviation, shipbuilding,offshore crane industry, oil field, coal,port marine platform,construction,railway and other heavy machinery field.
Integral rope groove drum: rope drums with grooves cut directly into them (with or without bolted or welded flanges, as required).Winch drum with flange, the LBS groove is cut directly into the body of the drum, according to customers’ requirements, the flanges are either welded or screw-bolted. groove geometry is determined by rope construction, diameter and length, and by application. the drum has the required mounting dimensions for the actual operating conditions.
LBS Sleeve product can help solve the problem of bitten rope in wire rope winding process. LBS groove system makes the winding of wire rope smooth, and the load of each layer evenly distributed,the technology greatly prolong the service life of wire rope, extend the service life of wire rope can be more than 500%, reduce the wire rope damage, improves the safety of the operation of the equipment, and reduces the problem of mechanical equipment shutdown for changing rope.
| name | High Efficient Tower Crane Drawworks Wire Rope Winch Drum lebus sleeve |
| about grooving | helical or LBS grooving |
| drum diameter and length | the sleeve must according to the drum parameter |
| rope diameter and length | the grooving desiged by the rope parameter |
| Material | your required material |
| installation | bolted or welding |
| more information |
the detailed drawing if possible |
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) |
Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, Marine crane,Mooring winch |
Early introduction the advanced technics form domestic and foreign,after years R&D,our company had a major breakthrough in lifting machinery's multilayers spooling field and obtaied the production patent of LBS groove in 2010.Meanwhile we created our brand -LBS. At the prosent, the company have formed a stable and serialized production mode.
