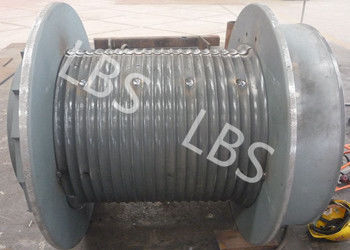

LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance

LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance
LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance

Large Image :  LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: ISO9001
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 Pieces Per Month
Detailed Product Description
Features: Winds Smoothly And Effectively Avoiding The Climbing Phenomenon Of Steel Wire Rope In Multi-layer Winding Product Name: Grooved Winch Drum
Surface Treatment: Polishing, Galvanizing, Spray Paint Rope Diameter: 10-100mm(+2%-+4%)
Groove Pitch: 0.1-2 Inch Groove Width: 10-100mm(+2%-+4%)
Rope Capacity: 5-25 Tons Rope Type: Steel Wire Rope, Synthetic Rope
Highlight:

acid resistance grooved winch drum

,

alkali resistance grooved winch drum

,

lbs winch drum

Acid And Alkali Resistance LBS Special Rope Groove Drum With Flange

Product Description:

A winch is a lightweight small lifting device, also known as a crane, that uses a reel to wind steel wire ropes or chains to lift or pull heavy objects. The drum is one of the important components of the winch.
Hoists can be divided into three main types: manual hoists, electric hoists, and hydraulic hoists. Among them, electric hoists are the most common. They can be commonly used alone or as components of lifting, road construction, and mine hoisting machinery. Due to their simple operation, large rope winding capacity, and easy portability, they are highly appreciated.
The hoist is mainly used for lifting or towing in construction, water conservancy engineering, forestry, mines, and docks. It is an essential equipment for workshops, mines, and factories.LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance 0



Features:

Drum and steel wire rope are commonly used accessories in various types of cranes. How to correctly select the rotation direction of the drum groove and the lay direction of the steel wire rope is crucial for the service life and safety of the steel rope.

  • Product Name: Grooved Winch Drum
  • Application: Lifting Or Flat Dragging Of Materials In Construction, Water Conservancy Projects, Forestry, Mines, Docks, Etc.
  • Groove Number: 1-40
  • Rope Type: Steel Wire Rope, Synthetic Rope
  • Rope Length: 50-1500 M
  • Rope Capacity: 5-25 Tons
  • Special Feature: Lebus Grooved Geometry Drum, Lebus Gearmatic Winch, LBS Grooved Drum, Customized Grooved Drum


Technical Parameters:


Product Basic Parameters(Specific specifications can be customized according to requirements)
Product Name LBS Winch Drum Type Specification LBSWD-2308001
Brand LBS Producing Area Shijiazuhang, Hebei, China
Production Facility CNC Center Certification ISO9001
Function Winding, storing steel wire ropes and lifting heavy objects Application Hoisting and lifting
Color Grey epoxy zinc rich primer (Customization) MOQ 1 pcs
Material S355JR/A709Gr50 Construction Weldment
Rope Groove Type LBS double fold rope grooves Rope Capacity 1500m
Lifting Method Vertical Power Source Electric motor
Overall Structure Flange, simplified body, pressure plate, rib plate Accessory Products Lifting structure of Tower crane

Applications:

Grooved Winch Drum and Its Usages

The groove type winch drum is widely used in industries such as construction, water conservancy, forestry, mining, and docks. They are usually used for material lifting or flat dragging. The slot type winch drum is also a supporting equipment for modern electronic control automatic operation lines.
The LBS series is a crane driven by a gear reducer. This special type of slot winch drum is particularly suitable for civil construction and installation projects in various companies, mining areas, and factories.



Specific

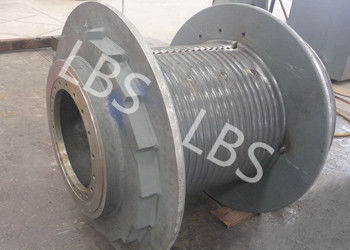

LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance 1

Support and Services:

Our Grooved Winch Drum is backed by a comprehensive technical support and service. We provide the following services:

a.Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum)
b. One year of warranty
c. The engineer can provide overseas service
d. Quick and responsible after-sales service
e. Very competitive price

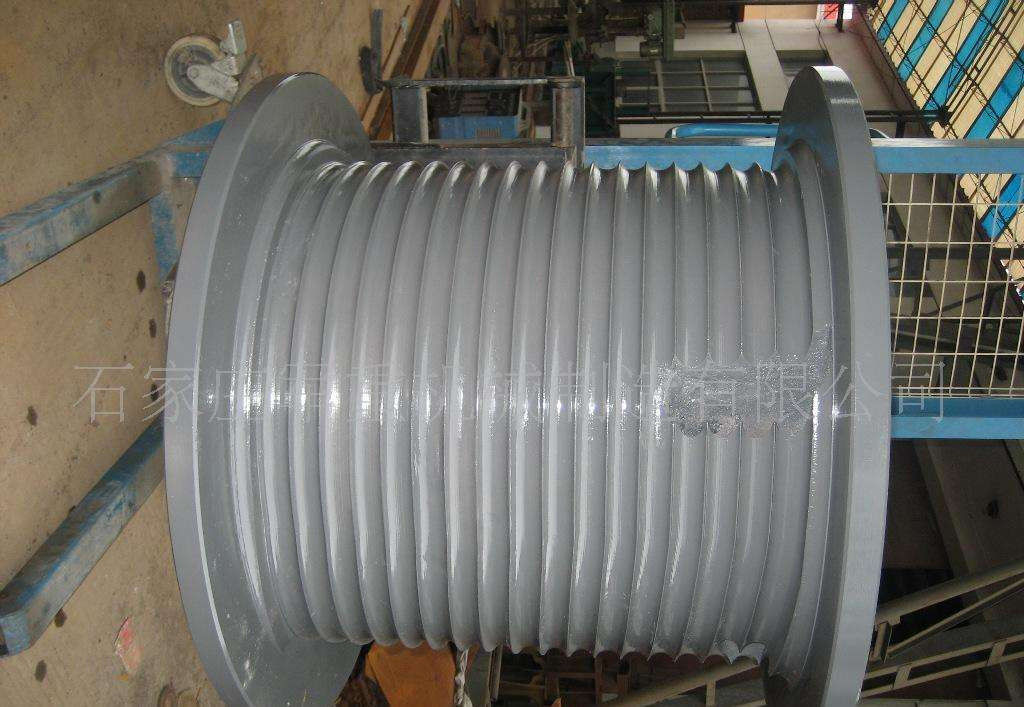

 LBS Special Rope Groove Drum With Flange , Acid And Alkali Resistance 2

Packing and Shipping:

Packaging and Shipping

The grooved winch drum is packed in a wooden box and fixed with bubble film. Pallets or Flat noodles should be used for multiple orders. Freight and insurance fees will be added to the invoice.
