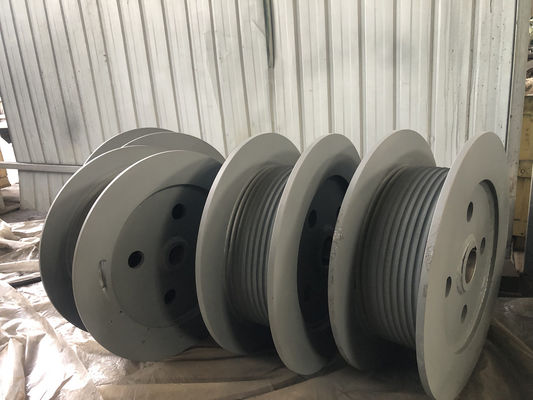

Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding

Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding
Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding

Large Image :  Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: ISO9001
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Cable Drum Rope Diameter: 15mm
Groove Bottom Diameter: 389mm Drum Length: Customizated
Rope Groove Type: Lebus Rope Type: Steel Wire Rope, Synthetic Rope
Layers: 1-3 Rope Length: 1-50m
Direction: Lefthand 60° Or Righthand 60° Rope Groove Pitch: 15.5mm
High Light:

lefthand grooved cable drum

,

righthand grooved cable drum

,

smooth winding grooved cable drum

Lefthand Or Righthand LBS Drum Smooth Winding

Product Description:

The LBS system  & LBS rope groove

Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding 0


Features:

  • Product Name: Grooved Cable Drum
  • Drum Length: Customizated
  • Material: S355JR/A709Gr50
  • Rope Capacity: 10-100m
  • Groove Number: 1-30
  • Winch Drum Grooving Service: Lebus Gearmatic Winch Drum Grooving
 Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding 1

Technical Parameters:

Product Basic Parameters(Specific specifications can be customized according to requirements)
Product Name Grooved Drum Type Specification LBSD-2308003
Brand LBS Producing Area Shijiazuhang, Hebei, China
Production Facility CNC Center Certification ISO9001
Function Winding, storing steel wire ropes and lifting heavy objects Application Lifting or flat dragging of materials In marine, construction, water conservancy projects, forestry, mines, docks, etc.
Color Grey epoxy zinc rich primer (Customization) MOQ 1 pcs
Material UNS G10200/E235B(Fe 360B)/S235JRG1 Construction Weldment
Rope Groove Type Lebus Rope Capacity 30m
Lifting Method Vertical Power Source Electric motor
Overall Structure Flange, simplified body, pressure plate, rib plate Accessory Products Lifting structure



Product Technical Parameters(Specific specifications can be customized according to requirements)
Performance requirements for drawing design:
Material UNS G10200/E235B(Fe 360B)/S235JRG1 Material Standards ASTM/A29M, ISO630, BSEN 10025
Rope Diameter 15mm(+2%-+4%) Rope Length 30m
Layers 1-3 Groove Bottom Diameter 389mm
Direction Lefthand 60° or righthand 60° Number of Rope Groove Turns 12.5
Centre-to-centre Distance of The First Layer of Steel Wire Rope 404mm Rope Groove Pitch 15.5m
Process: Blanking - Rolling Plate - Rough Turning - Welding (Simplified/Web/Rib Plate/) - Rope Groove - Welding Climbing Platform - Car Climbing Platform - Welding (Simplified/Baffle/Rib Plate/) - Annealing - Turning - Repairing Rope Mouth - Drilling and Tapping - Press Plate Assembly - Sand Blasting and Painting - Factory Inspection

Applications:



Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding 2

Processing Technic:

Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding 3

Support and Services:

Grooved Winch Drum Technical Support and Service

Our team of experienced professionals provide technical support and service for Grooved Winch Drums. We have been in business for over 10 years and have developed the highest level of expertise in the industry. We provide our customers with prompt, knowledgeable, and reliable service.

Technical Support

We provide technical support for all makes and models of Grooved Winch Drum. Our knowledgeable staff can answer your questions and provide you with helpful advice on installation, maintenance, and troubleshooting. We are available 24/7 to answer any questions you may have.

Maintenance and Repair

We offer maintenance and repair services for all Grooved Winch Drum models. Our experienced technicians are trained to diagnose and repair any issues that may arise. We can also provide preventative maintenance services to keep your Grooved Winch Drum running smoothly.

Parts and Accessories

We offer a wide selection of parts and accessories for Grooved Winch Drums. From replacement parts to upgrades, we have the parts you need to keep your Grooved Winch Drum running at peak performance. We can also provide custom parts and accessories to fit your specific needs.

Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding 4

Packing and Shipping:

Packaging and Shipping

Grooved winch drum products are packaged in wooden boxes that are shrink-wrapped for extra protection during shipping. The box size will depend on the size and quantity of the order. The boxes are then shipped with a reliable courier or freight service.

Tips

Lefthand Or Righthand Lbs Grooved Cable Drum Smooth Winding 5
