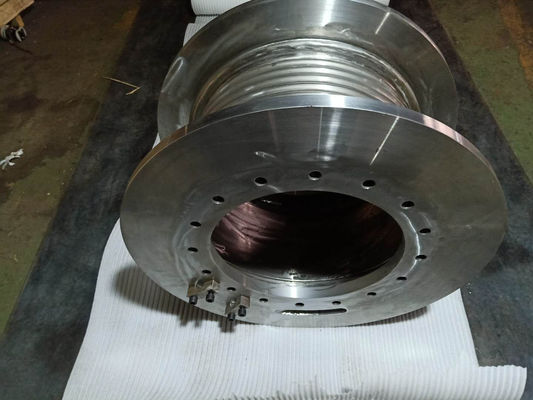

S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove

S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove
S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove

Large Image :  S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: ISO9001
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Cable Drum Rope Diameter: 15mm
Rope Groove Bottom Diameter: 100-1000mm Drum Length: Customizated
Rope Groove Type: Spiral/Straight Rope Type: Steel Wire Rope, Synthetic Rope
Layers: 1-7 Rope Length: 10-200m
Direction: Lefthand Or Righthand Power Source: Electric Motor
High Light:

steel lebus drum

,

15mm lebus drum

,

15mm grooved cable drum

S355JR/A709Gr50 Steel Grooved Drum Spiral Rope Groove

Product Description:

The LBS system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.LBS grooved drum, solved the problem of bitten rope in wire rope winding process.
S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove 0
LBS rope groove:This type of rope groove is kept parallel to the flange end face in most sections of the drum circumference, only intersecting with the flange end face in very small sections. Therefore, the rope groove will inevitably experience bending, hence the name "broken line rope groove". There are two transitional sections and two parallel sections within a week.


S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove 1


Features:

  • Product Name: Grooved Cable Drum
  • Drum Length: Customizated
  • Material: S355JR/A709Gr50
  • Rope Capacity: 10-1000m
  • Groove Number: 1-200
  • Winch Drum Grooving Service: Lebus Gearmatic Winch Drum Grooving
 S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove 2

Technical Parameters:

Product Basic Parameters(Specific specifications can be customized according to requirements)
Product NameGrooved DrumType SpecificationLBSD-2308002
BrandLBSProducing AreaShijiazuhang, Hebei, China
Production FacilityCNC CenterCertificationISO9001
FunctionWinding, storing steel wire ropes and lifting heavy objectsApplicationHoisting and lifting
ColorCustomizationMOQ1 pcs
MaterialS355JR/A709Gr50ConstructionWeldment
Rope Groove TypeSpiralRope Capacity80m
Lifting MethodVerticalPower SourceElectric motor
Overall StructureFlange, simplified body, pressure plate, rib plateAccessory ProductsLifting structure



Product Technical Parameters(Specific specifications can be customized according to requirements)
Performance requirements for drawing design:
MaterialS355JR/A709Gr50Material StandardsASTM A500/S355JR
Rope Diameter15mm(+2%-+4%)Rope Length80m
Layers1-7Groove Bottom Diameter389mm
DirectionLefthand or righthandNumber of Rope Groove Turns13.5
Centre-to-centre Distance of The First Layer of Steel Wire Rope404mmRope Groove Pitch15.5m
Process: Blanking - Rolling Plate - Rough Turning - Welding (Simplified/Web/Rib Plate/) - Rope Groove - Welding Climbing Platform - Car Climbing Platform - Welding (Simplified/Baffle/Rib Plate/) - Annealing - Turning - Repairing Rope Mouth - Drilling and Tapping - Press Plate Assembly - Sand Blasting and Painting - Factory Inspection

Applications:


a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc
b.The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc

S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove 3

Support and Services:

Grooved Winch Drum Technical Support and Service

Our team of experienced professionals provide technical support and service for Grooved Winch Drums. We have been in business for over 10 years and have developed the highest level of expertise in the industry. We provide our customers with prompt, knowledgeable, and reliable service.

Technical Support

We provide technical support for all makes and models of Grooved Winch Drum. Our knowledgeable staff can answer your questions and provide you with helpful advice on installation, maintenance, and troubleshooting. We are available 24/7 to answer any questions you may have.

Maintenance and Repair

We offer maintenance and repair services for all Grooved Winch Drum models. Our experienced technicians are trained to diagnose and repair any issues that may arise. We can also provide preventative maintenance services to keep your Grooved Winch Drum running smoothly.

Parts and Accessories

We offer a wide selection of parts and accessories for Grooved Winch Drums. From replacement parts to upgrades, we have the parts you need to keep your Grooved Winch Drum running at peak performance. We can also provide custom parts and accessories to fit your specific needs.



Packing and Shipping:

Packaging and Shipping

Grooved winch drum products are packaged in wooden boxes that are shrink-wrapped for extra protection during shipping. The box size will depend on the size and quantity of the order. The boxes are then shipped with a reliable courier or freight service.

Tips

S355JR / A709Gr50 Steel Grooved Lebus Drum Spiral Rope Groove 4
