Product Details:
Payment & Shipping Terms:
|
Product Name: | Split LEBUS Leathers With Roll Plug Welded Or Bolted Connection | Material: | Carbon Steel Or Alloy Steel |
---|---|---|---|
Groove Type: | Lebus Grooves | Structure: | Smooth Drum And Grooved Sleeves |
Connection Type: | Welded Or Bolted | Dia.of Rope: | 2~80mm |
Layers: | 2~60 Layers | Used: | Crane Winch Drum |
Grooving Machining: | CNC Machining | Guarantee Period: | 12 Months |
Highlight: | split lebus leather,bolted connection lebus sleeve,welded connection lebus sleeve |
Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lebus rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.

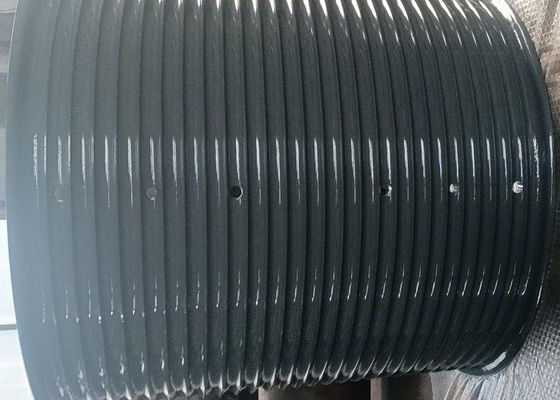

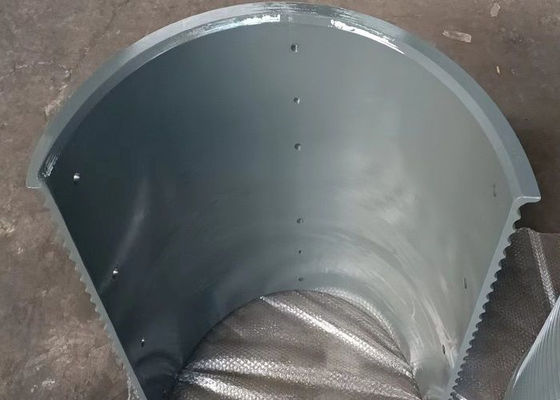

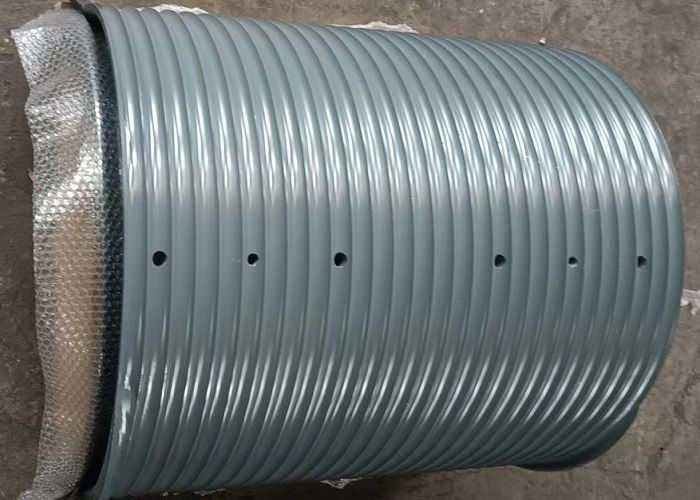

The sleeves is composed of a sleeve cut in half, which can be fixed to a smooth drum by welding or bolted fastening. If we want to make a sleeve, we need only the drum size , wire rope size , and the number of winding layers, We can customize production based on this data.The scope of application is the same as that of lebus drum.
GROOVING TYPE | Split LEBUS Leathers With Roll Plug Welded Or Bolted Connection |
PRODUCT OTHER NAME | groove sleeve |
PROCESSING EQUIPMENT | CNC machining center |
DRUM GROOVE ROTATION | Lefthand ,Righthand |
SLING TYPE | Wire rope or cable |
ROPE CAPACITY | 20-1000M |
PRODUCT OTHER NAME | LBS groove drum or winch drum |
GROOVING TYPE | LBS groove |
PROCESSING EQUIPMENT | CNC machining center |
DRUM GROOVEROTATION | Lefthand ,Righthand |
SLING TYPE | Wire rope or cable |
No | Wire diameter(mm) | Rotation direction | Main drum diameter(mm) |
Main drum length(mm) | Application |
1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 |
Engineering winch, Crawler crane |
3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 |
Offshore Crane, Mooring winch |
