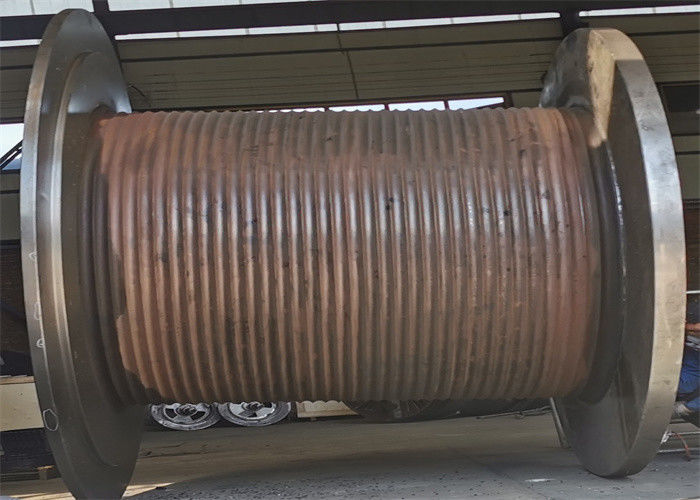

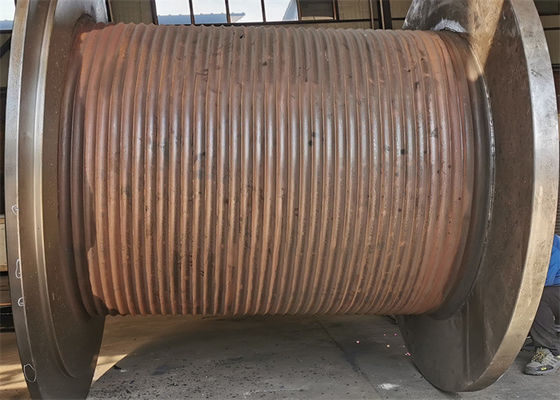

Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove

Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove
Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove

Large Image :  Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Marine Winch Lebus Drum Material: Carbon Steel
Groove Type: Lebus Grooves Structure: Multil Drum With Grooves
Dia.of Rope: 8-16mm Layer: Multi Layer
Used: Wall Cleaner Winch Rope Capacity: 100m
Highlight:

large diameter winch drum

,

offshore platform winch drum

,

marine winch drum

Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove

LEBUS rope groove

The Lebus system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.

Product infromation

The name Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove
Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 30-85mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 3000mm
Drum width 5000mm

Technical Parameters

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000



Advantages Of Us

1. We can discuss details and solutions with you according to your needs, and produce high quality products suitable for you.

2. The company has professional business staff to answer your questions online 24 hours a day.

3. Perfect after-sales service, solve problems for you in time.

4. Have a dedicated engineer to provide you with overseas guidance installation services.

5. We have trained service technicians who will be able to get your material handling equipment up and running , and have been providing our customers an effective service solution.



Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove 0Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove 1Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove 2

Offshore Platform Large Diameter Marine Winch Drum With Lebus Groove 3
