Product Details:
Payment & Shipping Terms:
|

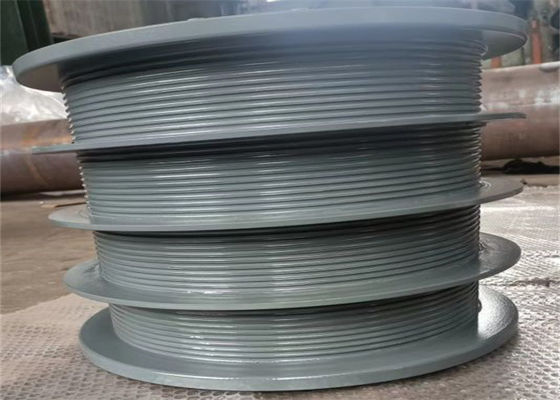

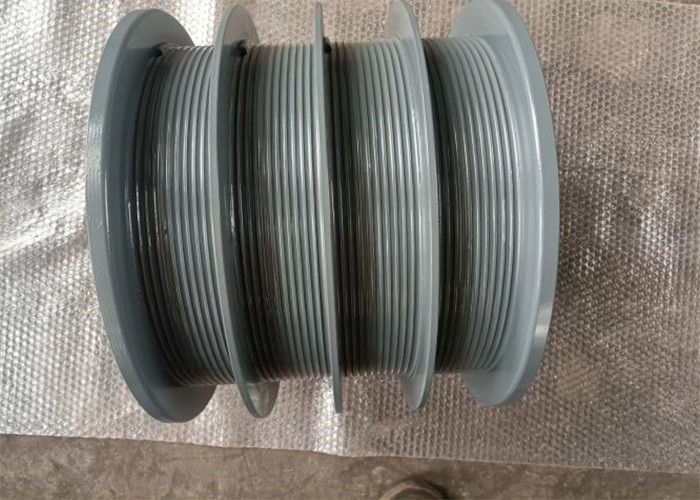

Product Name: | Multiple Ropes And Speed Simultaneous Lifting Multiple Drum With LEBUS Grooves For Winch | Material: | Carbon Steel |
---|---|---|---|
Groove Type: | Lebus Grooves | Structure: | Multiple Drum With Grooves |
Dia.of Rope: | 8-16mm | Layer: | Multiple Layer |
Used: | Wall Cleaner Winch | Rope Capacity: | 100m |
Highlight: | multi drum with lebus grooves,simultaneous lifting multi drum,winch drum with lebus grooves |
With the development of oil drilling winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire Rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.
Hoist speed | 0.95-1.27m/s |
Rotate speed | 720-960 r/min |
Rope diameter | 3-30mm |
Sling type | wire |
Direction rotation | left or right |
Application | hoist |
Parameter | can be designed |
Application | mining,oil drilling,or coal mine |
Drum diameter | 900mm |
Drum width | 600mm |
No | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
1. We can discuss details and solutions with you according to your needs, and produce high quality products suitable for you.
2. The company has professional business staff to answer your questions online 24 hours a day.
3. Perfect after-sales service, solve problems for you in time.
4. Have a dedicated engineer to provide you with overseas guidance installation services.
5. We have trained service technicians who will be able to get your material handling equipment up and running , and have been providing our customers an effective service solution.
