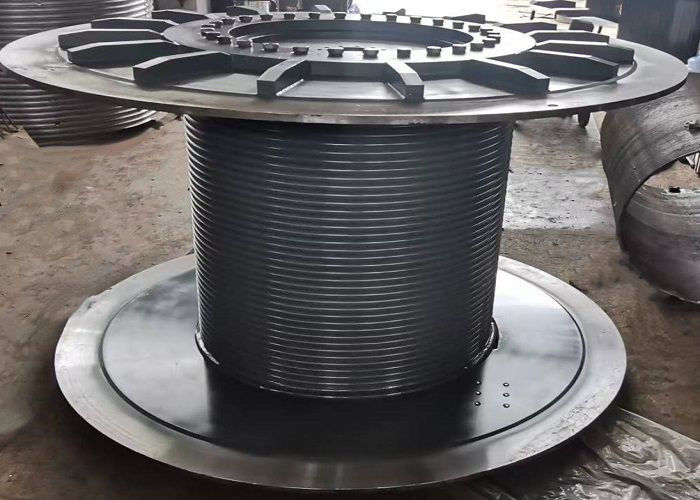

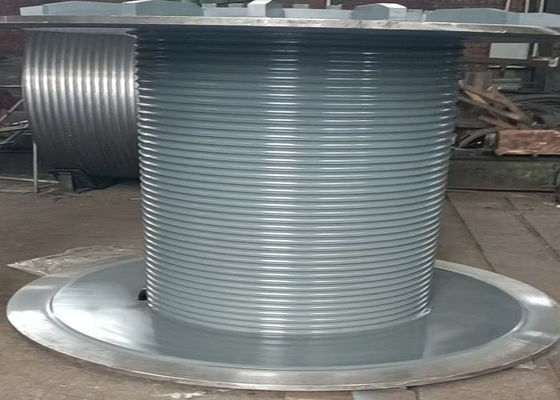

Product Name: | Lebus Grooved Single Drum Q355B Used For Hydraulic Electric Marine Winch | Material: | Q355B Steel |
---|---|---|---|
Groove Type: | Lebus Grooves | Structure: | Drum With Grooves |
Dia.of Rope: | 16mm | Layer: | Multiple Layer |
Used: | Marine Winch | Rope Capacity: | 100m |
Highlight: | lebus grooved single drum,single drum q355b,grooved drum q355b |
With the development of oil drilling winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, becauset this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.
The name | Lebus Grooved Single Drum Q355B Used For Hydraulic Electric Marine Winch |
Hoist speed | 0.95-1.27m/s |
Rotate speed | 720-960 r/min |
Rope diameter | 3-30mm |
Sling type | wire |
Direction rotation | left or right |
Application | hoist |
Parameter | can be designed |
Application | mining,oil drilling,or coal mine |
Drum diameter | 900mm |
Drum width | 600mm |
No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
1. tailored solutionsto meet customer's specific needs.
2. Wide line pull range up to 60 ton
3. compact design & high reliability
4. easy to install
5. high starting& working efficiency
6. Reliable operation with little noise
7. Minimum maintenance relieves your anxiety
