Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld

Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld
Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld

Large Image :  Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Split LEBUS Sleeves Material: Carbon Steel Or Alloy Steel
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Connection Type: Welded Or Bolted Dia.of Rope: 13mm
Layers: 36 Layers Use: Winch Drum
Grooving Machining: CNC Machining Guarantee Period: 12 Months
High Light:

smooth drum split lebus sleeves

,

customizable split lebus sleeves

Customizable Smooth Drum With Split LEBUS Sleeves Fixed By Bolt Or Plug Weld

Introduce of LEBUS sleeves
The sleeves is composed of a sleeve cut in half, which can be fixed to a smooth drum by welding or bolted fastening. If we want to make a sleeve, we need only the drum size , wire rope size , and the number of winding layers, We can customize production based on this data.The scope of application is the same as that of lebus drum.

Product advantage

Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum Sleeves has obvious advantages in the neat winding of multi-layer steel wire rope. Lebus rope groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.



Product lookview
GROOVING TYPE Lebus grooves
PRODUCT OTHER NAME Customizable Smooth Drum With Split LEBUS Sleeves Fixed By Bolt Or Plug Weld
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVE ROTATION Lefthand ,Righthand
SLING TYPE Wire rope or cable
ROPE CAPACITY 20-1000M
PRODUCT OTHER NAME LBS groove drum or wire rope drum
GROOVING TYPE LBS groove or helical groove
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVEROTATION Lefthand ,Righthand
SLING TYPE Wire rope or cable

Technical parameters and application
No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch

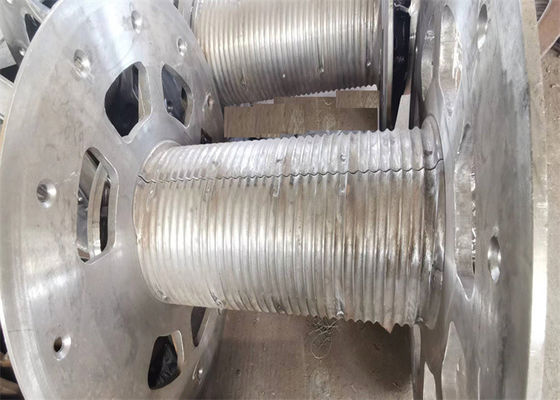

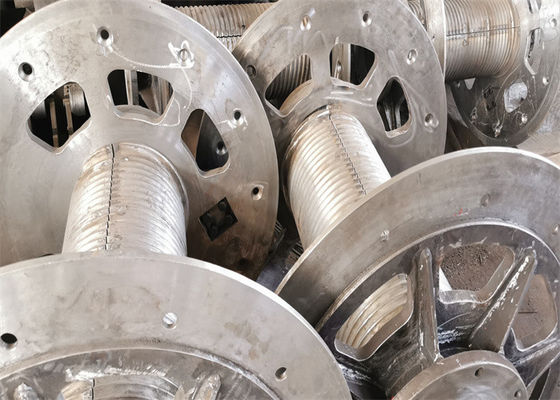

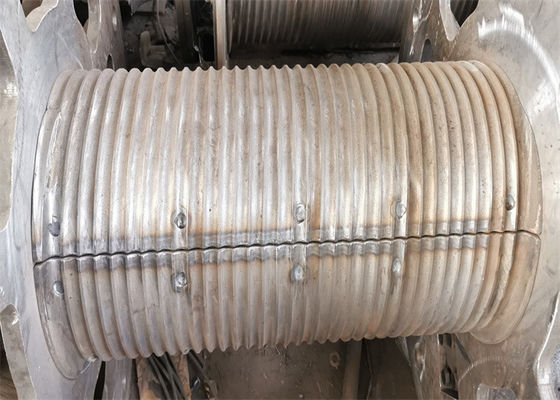

Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld 0Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld 1



Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld 2Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld 3

Customizable Smooth Drum With Split Lebus Sleeves Fixed By Bolt Or Plug Weld 4
