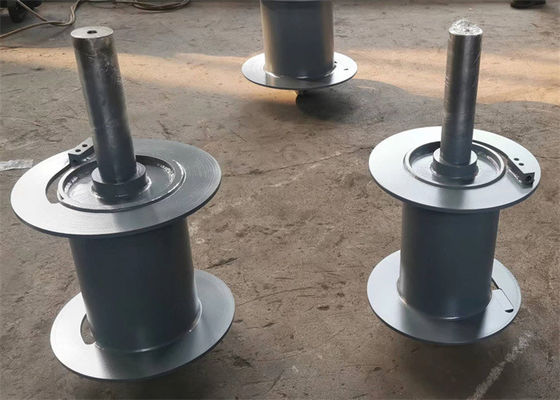

Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft

Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft
Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft

Large Image :  Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amounts and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Cable Winch Drum Drum Quantity: Single
Drum Design: Smooth Drum Material: Q355B
Application Range: Hoist Winch Crane Windlass Rope Capacity: 20m
Rope Diameter: 8.5mm Machining: CNC
Highlight:

q355b cable winch drum

,

hoist cable winch drum

Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft

 overview
Product name Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft
Drum Quantity singel
Drum Design smooth drum
Material Q355B
rope capacity 20m
Application Range Winch Hoist Crane
Power Source Electric and hydraulic
External processing galvanized
Machining CNC machining center

overview of the Wich drum
The role of the winch drum is mainly to transfer the speed and torque of the motor to it through the spindle into the linear speed of the wire rope around it, in order to lift and lower the object.
According to the different manufacturing process, the drum structure of the hoist can be divided into casting- welding mixed type (supporting wheel for casting, drum for welding) and welding type.

Drum & drum shaft

The drum diameter not less than 19 times of the wire rope diameter.

The drum wall can withstand the wrapped tight force of wire rope; the side can withstand the lateral force produced by wire rope.

The distance between drum side plate peripheral to the outermost roll rope not less than twice of the wire rope diameter.



Precautions for the use of crane winch

1. The wire ropes on the crane drum should be arranged neatly. If overlap and oblique winding are found, they should be stopped and rearranged. It is forbidden to pull the wire rope by hand or foot in rotation. The wire rope shall not be completely released, at least three laps shall be reserved.
2. crane wire rope is not allowed to knot, twist, in a pitch break more than 10%, should be replaced.
3. In the crane operation, no one shall cross the wire rope, and the operator shall not leave the hoist after the object (object) is lifted. Objects or cages should be lowered to the ground when resting.
4. In the operation, the driver and signalman should maintain good visibility with the lifting object. The driver and signalman should cooperate closely and obey the unified command of the signal.
5. In case of power failure during crane operation, the power supply should be cut off and the lifting object should be lowered to the ground.



range of application

a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc
b,The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc





Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft 0





Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft 1Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft 2Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft 3




Q355B Material Wire Rope/Cable Winch Drum For Hoist Crane With Shaft 4
