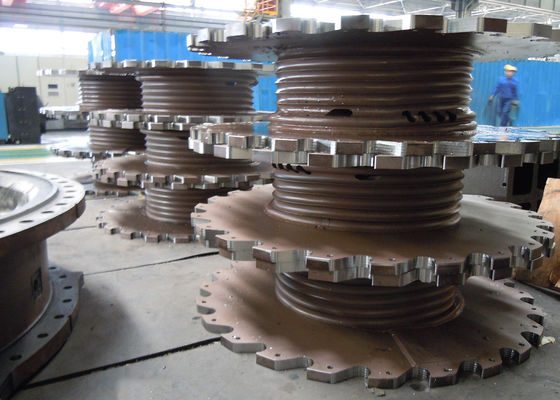

CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine

CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine
CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine

Large Image :  CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Cable Winch Drum Drum Quantity: Single Or Double
Drum Design: LBS Groove Or Spiral Groove Material: Carbon Stainless And Alloy Steels
Size: Customization Application Range: Construction Mining Terminal Operation
Power Source: Construction Mining Terminal Operation Rope Capacity: 100~300M
Rope Diameter: 6mm/8mm/12mm Surface Status: Hot Spray Zinc Or Spray Paint
Highlight:

CCS mooring winch drum

,

300m mooring winch drum

,

Rope Winch Drum

Lebus Grooved carbon steel material multi Cable Winch Drum





product infromation

Product name Lebus Grooved Carbon Steel Material Multi Cable Winch Drum For Wipe Wall Machine
Drum Quantity Multi
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M




single or multi Drum Winch​ Description

Drum is one of the important parts of lifting machinery, used to wind wire rope in lifting mechanism or traction mechanism.By transferring the driving force provided by the hydraulic or electric drive device to the wire rope, the rotary motion of the drive device is transformed into the linear motion required.

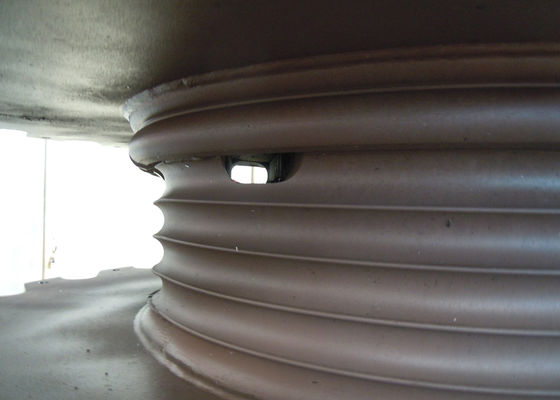

Advantages of LEBUS Groove

The factory production of double wire groove tube, and winch rope groove plate assembly, now widely used in petroleum machinery, mining machinery, ships, ports, lifting machinery, lifting machinery, etc., and with daqing oilfield, shengli oilfield, dagang oilfield, zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory, big companies such as sany, established a long-term, stable relations of cooperation, Products are also exported to the United States, Canada, Brazil and so on. Our factory can design and manufacture various specifications of folding rope groove tube, rope groove plate and winch according to the requirements of users, but also can provide on-site installation.



Our Service

Enterprises adhering to the "quality first, customer first" purpose, to the pursuit of excellence, endless as the goal, wholeheartedly for the user service.



Drum Classification

1. According to the number of winding layers:

1) Single winding: Only 1 layer of wire rope is wound on the drum, spiral groove is usually cut on the drum surface.

2) Double windingThe drum is wound with 2 layers of wire rope, spiral grooves or lebus grooves can be used.

3) Multi-winding:Multilayer wire rope winding on the drum, used for particularly large lifting height or compact mechanism occasions, the surface of the drum cutting lebus grooves.

2. According to the processing method:

1) Casting Drum:The casting material is usually cast steel or cast iron.

2) Welding Drum:The drum core is made of seamless pipe or rolled with steel plate, welding flange and drum core, and eliminating welding stress before machining.

3. According to the number of drum segmentation

1) Double winding:Two wire ropes can be wrapped around a drum.The rope can be wound in the same direction or in the opposite direction

2) Multi-winding:The surface of a drum is divided into several drums by baffles, each of which can be used separately for winding rope.

Four drum hoist, four hook hoist. Four wire ropes are fixed on a drum, respectively, from the drum, from the bottom of the drum, when the drum rotates, one lifting container up, the other container down.



Drawing dimensions



CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine 0



Drum Features:

Processing Equipment: CNC Machining Center

Rotation Direction Of Grooves: Lefthand

Wire Rope Diameter: 3 MM~65 MM

Each Layer Laps: 20.5 laps

Layer: 5 Layer

Rope Groove Type: LEBUS Rope Groove

Number Of Ropes: Four



Company introduction

Our company mainly serves lifting machinery, Marine machinery, petroleum machinery, water conservancy machinery, construction machinery and other industries. The main products are oil drilling machine, workover machine, well machine, drum of oil truck and winch winch (main barrel adopts libasi double folding line groove) and oil equipment accessories, my factory has more than ten years of production experience, to solve the rope in the process of winding rope, rope biting major problems.

Double folding rope groove makes the wire rope winding smooth, load evenly distributed between each layer, practice has proved that this technology greatly prolongs the service life of wire rope, data shows that can prolong the life of wire rope more than 500%, reduce wire rope damage, improve safety, and reduce the mechanical equipment for rope replacement downtime.

  •
  • CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine 1

  •

CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine 2



CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine 3

CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine 4CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine 5CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine 6CCS Certified 300m Capacity Mooring Winch Drum , Rope Winch Drum For Oil Drilling Machine 7
