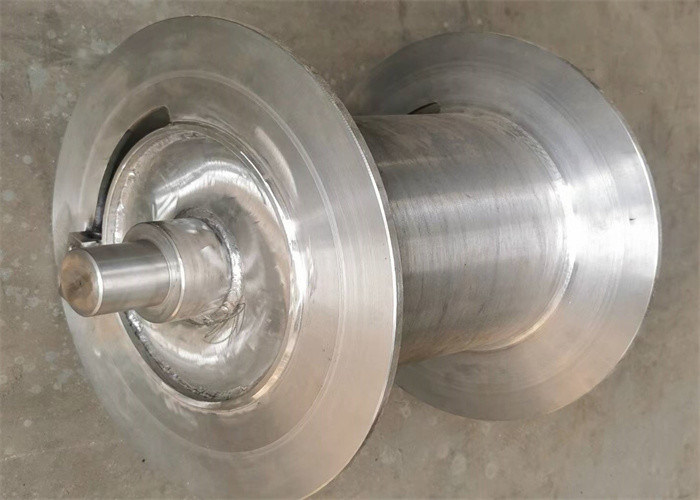

CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist

CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist
CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist

Large Image :  CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amounts and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: Wire Rope Cable Winch Drum Drum Quantity: Single
Drum Design: With Shaft Material: Q355B
Application Range: Hoist Rope Capacity: 20m
Rope Diameter: 8mm Machining: CNC
High Light:

cnc machining cable winch drum

,

wire rope winding cable winch drum

CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist

 overview
Drum Quantity singel
Drum Design With lebus sleeves
Material Q355B
rope capacity 200m
Application Range rig drawwork
Power Source Electric and hydraulic
External processing galvanized
Machining CNC machining center

overview of the Wich drum
The role of the winch drum is mainly to transfer the speed and torque of the motor to it through the spindle into the linear speed of the wire rope around it, in order to lift and lower the object.
According to the different manufacturing process, the drum structure of the hoist can be divided into casting- welding mixed type (supporting wheel for casting, drum for welding) and welding type.


Technical Parameters

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000



range of application

a.Crane machinery: The bridge lifting machine, Tower crane, Gantry crane, Crawler crane winch, etc
b,The petroleum industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailer mounted pumping unit winch , Logging winch, etc
c.Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydraulic winch, etc
d. The construction machinery: Building wipe wall winch, Winding hoist, Windlass, etc
e. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch, etc
f. Mining winch: Dispatching winch, Prop-pulling winch, Sinking winch, etc





CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist 0



CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist 1CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist 2CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist 3CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist 4CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist 5CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist 6








CNC Machining Wire Rope/Cable Winding Winch Drum With Shaft For Hoist 7
