200m Wire Rope Cable Winch Drum With Lebus Sleeves For Rig Drawworks

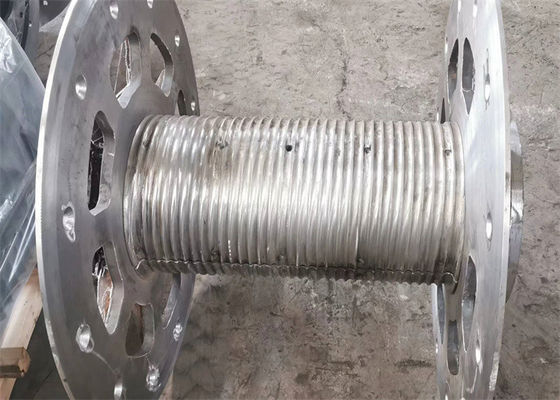

Large Image : 200m Wire Rope Cable Winch Drum With Lebus Sleeves For Rig Drawworks

Product Details:

Place of Origin:	Shijiazhuang Hebei China
Brand Name:	LBS
Certification:	CCS
Model Number:	Non-Standard

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Export standard wooden case
Delivery Time:	15 to 30 working days, depends on order amounts and specification
Payment Terms:	L/C, T/T
Supply Ability:	150 sets per month

Contact Now

Detailed Product Description

Product Name:	Wire Rope Cable Winch Drum	Drum Quantity:	Single
Drum Design:	Lebus Grooved	Material:	Alloy Steel
Application Range:	Rig Drawworks	Rope Capacity:	200m
Rope Diameter:	15mm	Made Of:	Steel Plate Or Pipe
Highlight:	200m cable winch drum , rig drawworks cable winch drum

Wire Rope Cable Winch Drum With Lebus Sleeves For Rig Drawworks

overview

Product name	Wire Rope Cable Winch Drum With Lebus Sleeves For Rig Drawworks
Drum Design	With lebus grooves
Material	Alloy steel
rope capacity	200m
Application Range	rig drawwork
Power Source	Electric and hydraulic
External processing	galvanized
Machining	CNC machining center

The Lebus cable groove winch developed by our company solves the following problems

1. The steel wire rope can be wrapped in multiple layers without disorderly rope;
2. Wire rope winding speed is not restricted;
3. The load is evenly distributed between the wire ropes;
4. Under the condition of load, no rope biting or rope skipping between the wire ropes;
5. Reduce the damage of wire rope and improve the safety;
6. Reduce the downtime of wire rope replacement, greatly improve the work efficiency.
After using a large number of data sheet: prolong the service life of wire rope more than 500%.

Technical Parameters

No:	Wire diameter(mm)	Pulling Force(KN)	Rotation Direction	Drum Diameter(mm)	Drum Length(mm)
1	3~8	3~10	Lefthand,Righthand	>160	<1000
2	10~16	12~20	Lefthand,Righthand	>320	<1000
3	18~24	20~80	Lefthand,Righthand	>480	<1000
4	26~32	100~120	Lefthand,Righthand	>640	<1000
5	34~40	150~200	Lefthand,Righthand	>800	<1000
6	42~50	240~400	Lefthand,Righthand	>1000	<1000

Processing equipment

CNC machining center

200m Wire Rope Cable Winch Drum With Lebus Sleeves For Rig Drawworks 0

200m Wire Rope Cable Winch Drum With Lebus Sleeves For Rig Drawworks 1
