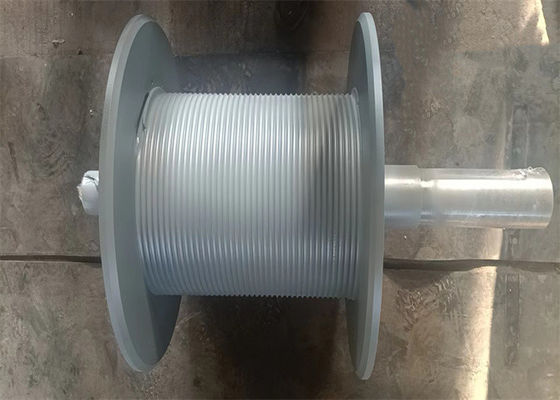

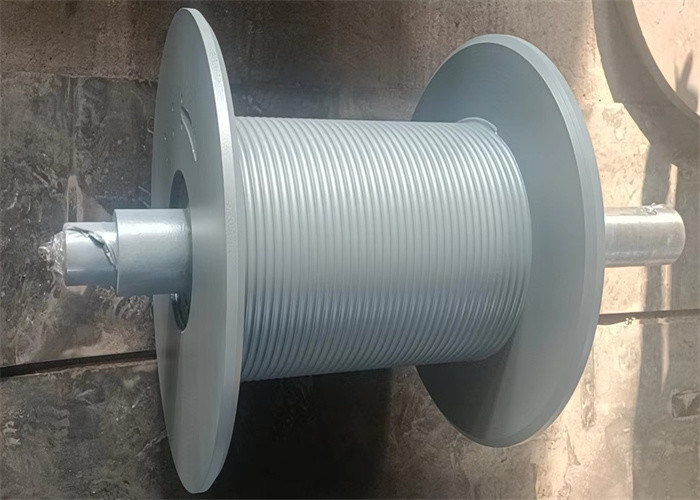

Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel

Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel
Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel

Large Image :  Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: Non-Standard
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 15 to 30 working days, depends on order amounts and specification
Payment Terms: L/C, T/T
Supply Ability: 150 sets per month
Detailed Product Description
Product Name: LEBUS Grooved Cabel Winch Drum Drum Quantity: Single
Drum Design: Lebus Grooved Material: Q355D
Application Range: Towing Winch Rope Capacity: 500mm
Rope Diameter: 10mm Made Of: Steel Plate Or Pipe
High Light:

q355d cable winch drum

,

customizable cable winch drum

Q355D Customizable LEBUS Groove Wire Rope Reel, Cable Winch Drum

 overview
Product name Q355D Customizable LEBUS Groove Wire Rope Reel Cable Winch Drum
Drum Quantity Single Or Double
Drum Design With shaft
Material Q355D
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M

LEBUS rope groove

With the development winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.



Technical Parameters
No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000



Processing equipment

CNC machining center






Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel 0







Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel 1Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel 2Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel 3Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel 4Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel 5

Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel 6




Q355D Cable Winch Drum, Customizable Lebus Groove Wire Rope Reel 7
