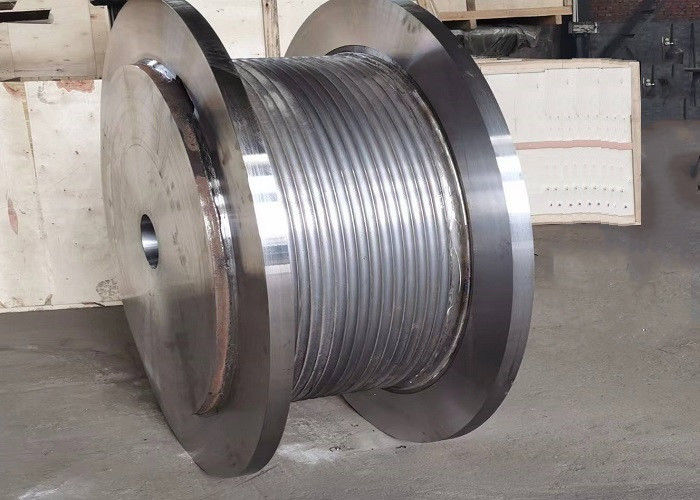

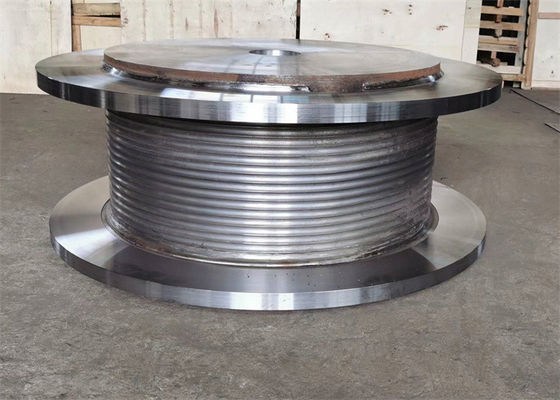

Multi Layer Winding Grooved Winch Drum For Construction Equipment

Multi Layer Winding Grooved Winch Drum For Construction Equipment
Multi Layer Winding Grooved Winch Drum For Construction Equipment Multi Layer Winding Grooved Winch Drum For Construction Equipment

Large Image :  Multi Layer Winding Grooved Winch Drum For Construction Equipment

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Cable Drum Material: Steel Q355B
Groove Type: Lebus Grooves Use: Construction Equipment
Dia.of Rope: 2~60mm Layers: 2~60 Layers
Grooving Machining: CNC Machining Warranty: 12 Months
Highlight:

multi layer winding grooved winch drum

,

construction equipment grooved winch drum

Steel Cable Multi-Layer Winding Grooved Drum For Construction Equipment

Overview of the Lebus Grooved

LBS drum is a kind of groove for multi-layer winding of wire rope introduced from abroad. Because of this rope groove in the drum
Most of the circumferential section is kept parallel to the flange end face, only in a very small section and the flange end face intersection,
However, there is a phenomenon of turning, it is named "folding rope groove" too.
Years of practical use has proved that this kind of drum with special rope groove structure can well solve the difficulty of multi-layer winding rope
The double folding cable groove system ensures that the multi-layer winding wire rope on the drum is completely smoothly drawn into and rolled out of the drum.



Product Introduction

Grooved Winch Drum Material: Carbon Steel, Alloy Steel, Stainless Steel, Aluminum, High-Strength Steel, Etc

Material Standards: GB, AISI, ASME, ASTM, JIS, DIN, ...

Ambient Temperature: -40 ° C To +45 ° C

Stroage Ambient Temperature: -40 ° C To +50 ° C

Groove Type of Drum: Spiral Grooves or Lebus Grooves

The Rotation Direction of The Drum: Lefthand or Righthand

Processing method: Machine Work

Wire Rope Diameter: 3 MM~100 MM

Processing Equipment: CNC machining center



Drum Quantity Single Or Double
Drum Design LBS Groove Or Spiral Groove
Material Carbon Stainless And Alloy Steels
Size Customization
Application Range Construction Mining Terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M



Technical parameters and application



No Wire diameter(mm) Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch



Multi Layer Winding Grooved Winch Drum For Construction Equipment 0


Multi Layer Winding Grooved Winch Drum For Construction Equipment 1
