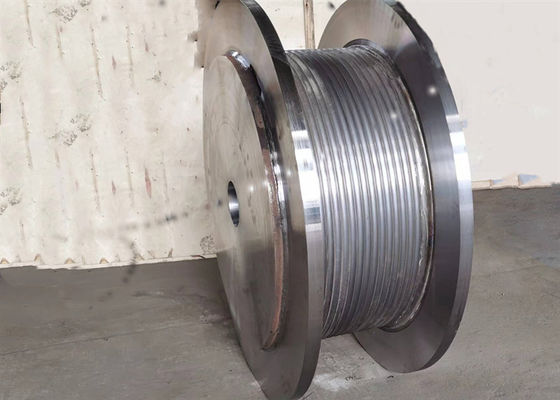

Customization Steel Cable Winch Drum With LBS Grooved

Customization Steel Cable Winch Drum With LBS Grooved
Customization Steel Cable Winch Drum With LBS Grooved Customization Steel Cable Winch Drum With LBS Grooved Customization Steel Cable Winch Drum With LBS Grooved Customization Steel Cable Winch Drum With LBS Grooved

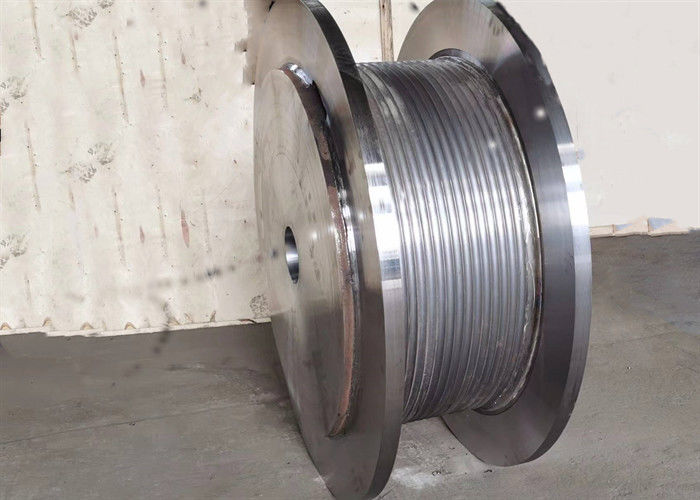

Large Image :  Customization Steel Cable Winch Drum With LBS Grooved

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Cable Drum Material: Q355B
Groove Type: Lebus Grooves Use: Winch Hoist Windlass
Dia.of Rope: 2~80mm Layers: 2~60 Layers
Grooving Machining: CNC Machining Dia. Of Drum: 50~1000mm
Highlight:

steel cable winch drum

,

lbs grooved cable winch drum

,

customization cable winch drum

 Customization Steel Cable LBS Grooved Drum For Hoist Windlass

The structural point of the LEBUS groove

The drum rope groove of drill winch adopts the form of double broken line structure, and its characteristics are diagonal rope groove and straight rope groove appear alternately, thus forming two diagonal rope groove area and two straight rope groove area on the surface of the drum. The so-called inclined rope groove refers to the rope groove that intersects diagonally with the drum bus, and the straight rope groove refers to the rope groove that intersects directly with the drum bus or is parallel to the flange. Diagonal strong groove controls the pitch of rope groove, which accounts for a small proportion in a circle of rope groove. Its structure point can effectively alleviate the problems of extrusion deformation, mutual friction and early wear of wire rope during loading.
The processing and production of the lebus groove can be directly processed on the drum as a whole, and can also be made into a set with the rope groove, and made into a split type, wrapped in the smooth drum when installed, connected with the drum through bolts or welding. The material of folding rope groove barrel can be divided into carbon steel, stainless steel, alloy steel, aluminum or glass fiber, etc. The barrel can be made by sheet rolling or casting.



Successful cases

Our production of lebus grooved drum, and winch rope groove plate assembly, now widely used in petroleum machinery, mining machinery, ships, ports, lifting machinery, lifting machinery, etc., and with daqing oilfield, shengli oilfield, dagang oilfield, zhongyuan oilfield, liaohe oilfield, nanyang oil factory, big companies such as sany, established a long-term, stable relations of cooperation, Products are also exported to the United States, Canada, Brazil and so on. Our factory can design and manufacture various specifications of folding rope groove tube, rope groove plate and winch according to the requirements of users, but also can provide on-site installation.



Our company service

a.Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum).
b. One year of warranty.
c. The engineer can provide overseas service.
d. Quick and responsible after-sales service.
e. Very competitive price.
f. Before sending the goods, we will test and adjust, so you can use directly when you get it.
g. Operation video & instruction will be sent to clients, to help them use the sleeves better. Additionally, our company provides technical support and fittings for life.
h. Any problems occur while using, professional advice will be offered.
i. All kinds of frequently used parts are supplied all the year round.



Technical parameters and application



No Wire diameter(mm) Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch

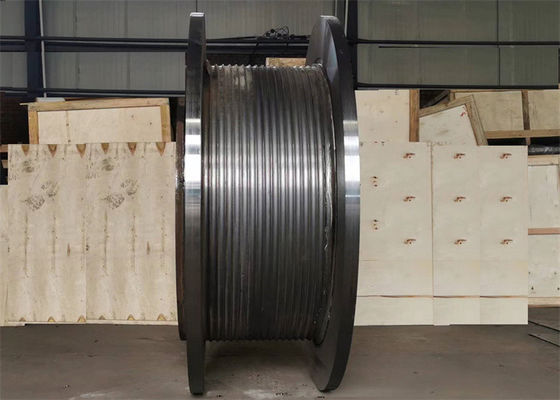

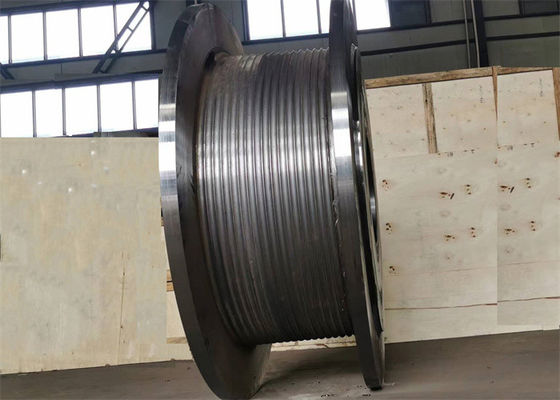

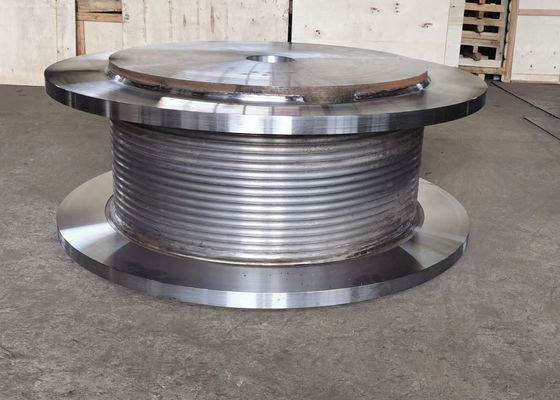

Customization Steel Cable Winch Drum With LBS Grooved 0


Customization Steel Cable Winch Drum With LBS Grooved 1

 Customization Steel Cable Winch Drum With LBS Grooved 2   Customization Steel Cable Winch Drum With LBS Grooved 3
