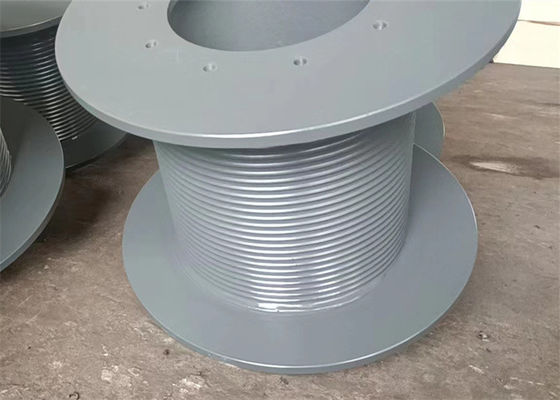

Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats

Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats
Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats

Large Image :  Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Lebus Grooved Drum Material: Carbon Steel
Groove Type: Lebus Grooves Use: Tow Fishing Boats
Dia.of Rope: 2~80mm Layers: 2~60 Layers
Grooving Machining: CNC Machining Dia. Of Drum: 500mm
High Light:

tugboat winch grooved cable drum

,

tow fishing boats grooved cable drum

Tugboat Winch Parts: Lebus Grooved Cable Drum Used For Tow Fishing Boats

A kind of application on the winch cable system

A kind of application on the winch cable system, including the manipulation of the platform, with the cable drum, signal transmission device, tension device, and is used for configuration cable on the reel cable device, its characteristics is described in the drum by gear and at the end of the signal transmission device connected to the signal transmission device connected by a thick shaft encoder, encoder described through the transmission lines connected to the manipulation of the platform, The cable arrangement device relative is arranged with two bearings, one of the lateral support is arranged with a coupling and reducer, the reducer is arranged above the frequency conversion motor, frequency conversion motor is connected with the control platform through cable, the other lateral support is connected with the tension device through the sprocket; The guide shaft and lead screw are arranged between the two supports, and the guide shaft and lead screw are movably connected with a reciprocating sliding seat, and the reciprocating sliding seat is provided with a wire window through the cable.



Successful cases

our production of lebus grooved drum, and winch rope groove plate assembly, now widely used in petroleum machinery, mining machinery, ships, ports, lifting machinery, lifting machinery, etc., and with daqing oilfield, shengli oilfield, dagang oilfield, zhongyuan oilfield, liaohe oilfield oilfield, nanyang oil factory, big companies such as sany, established a long-term, stable relations of cooperation, Products are also exported to the United States, Canada, Brazil and so on. Our factory can design and manufacture various specifications of folding rope groove tube, rope groove plate and winch according to the requirements of users, but also can provide on-site installation.



Our company service

a.Our company specialized in design and produce various types of electric and hydraulic anchor windlass , mooring winch, luffing crane and boat plane and rack, winch, engineering winch, cable winch and towing winch(The main drum is used grooved drum).
b. One year of warranty.
c. The engineer can provide overseas service.
d. Quick and responsible after-sales service.
e. Very competitive price.
f. Before sending the goods, we will test and adjust, so you can use directly when you get it.
g. Operation video & instruction will be sent to clients, to help them use the sleeves better. Additionally, our company provides technical support and fittings for life.
h. Any problems occur while using, professional advice will be offered.
i. All kinds of frequently used parts are supplied all the year round.



Technical parameters and application



No Wire diameter(mm) Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch

Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats 0


Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats 1

 Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats 2Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats 3Tugboat Winch Parts: Lebus Grooved Cable Drum For Tow Fishing Boats 4
