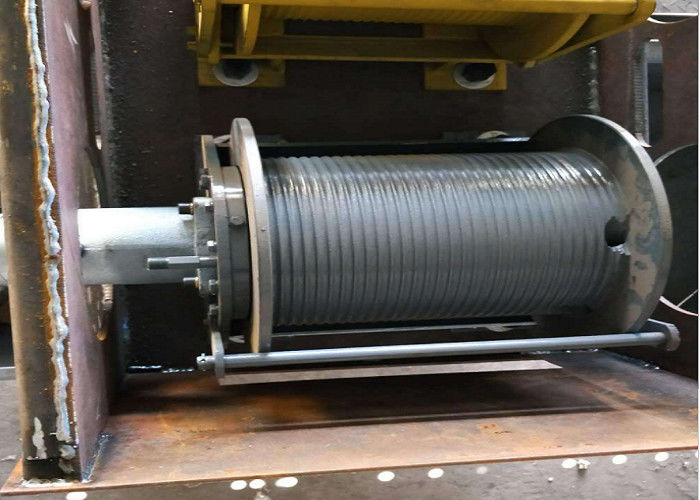

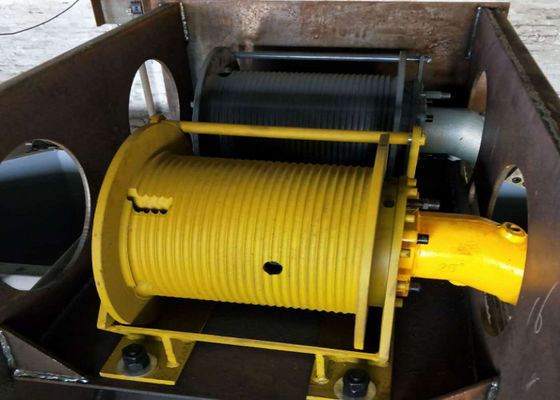

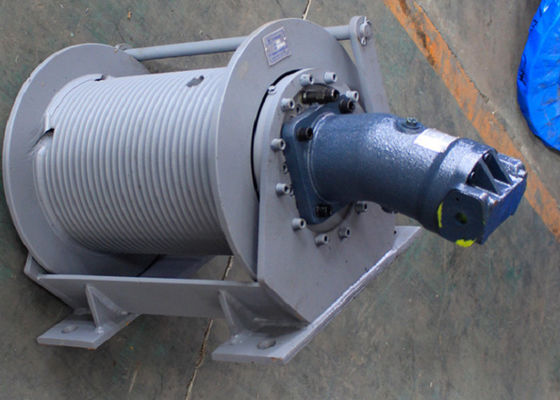

| Product Name: | Alloy Steel Material Hydraulic Winch With Grooved Drum, Can Be Customized | Material: | Alloy Steel |
|---|---|---|---|
| Groove Type: | Lebus Or Spiral Grooves | Dia. Of Drum: | 400mm |
| Dia.of Rope: | 7mm~12mm | Layer: | Multi Layer |
| Used: | Marine | Rope Capacity: | 300m |
| High Light: | alloy steel material grooved winch drum,customized hydraulic grooved winch drum |
||
1. Capacity: 1-65T
2. Lifting height: 2400m
3. Lifting speed: single/VVVF
4. Power: hydraulic motor
5. Top quality with competitive price.
6. Easy to install and high quality.
7. Compact structure and reasonable design.
8. Widely used in mining and marine
| The name | Alloy Steel Material Hydraulic Winch With Grooved Drum Can Be Customized |
| Hoist speed | 0.95-1.27m/s |
| Rotate speed | 720-960 r/min |
| Rope diameter | 3-30mm |
| Sling type | wire rope |
| Direction rotation | left or right |
| Application | hoist |
| Parameter | can be designed |
| Application | Window Cleanere |
| Drum diameter | 400mm~500mm |
| Drum width | 1000mm |
| No: | Wire diameter(mm) | Pulling Force(KN) | Rotation Direction | Drum Diameter(mm) | Drum Length(mm) |
| 1 | 3~8 | 3~10 | Lefthand,Righthand | >160 | <1000 |
| 2 | 10~16 | 12~20 | Lefthand,Righthand | >320 | <1000 |
| 3 | 18~24 | 20~80 | Lefthand,Righthand | >480 | <1000 |
| 4 | 26~32 | 100~120 | Lefthand,Righthand | >640 | <1000 |
| 5 | 34~40 | 150~200 | Lefthand,Righthand | >800 | <1000 |
| 6 | 42~50 | 240~400 | Lefthand,Righthand | >1000 | <1000 |
Custom design or processing according to drawings.
Lebus rope groove drum is divided into integral and split, integral needs to process drawings.
The separation needs parameters such as drum diameter, outer diameter, length, wire rope diameter, rope groove rotation (left or right) and so on.
