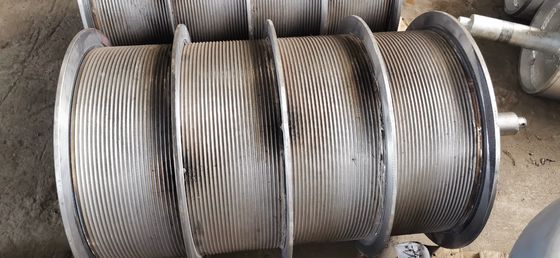

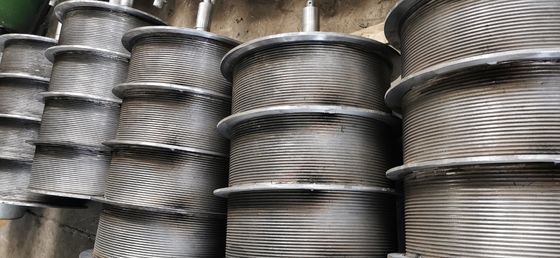

Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner

Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner
Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner

Large Image :  Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Slowly Speed Grooved Winch Drum For Manned Elevator Material: Q355B Steel
Groove Type: Lebusl Grooves Dia. Of Drum: 400mm~500mm
Dia.of Rope: 7mm~12mm Layer: Multi Layer
Used: Window Cleanere Rope Capacity: 300m
High Light:

slowly speed grooved winch drum

,

window cleaner grooved winch drum

Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner



LEBUS rope groove

With the development of oil drilling winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.

Product infromation

The nameSlowly Speed Carry People Up And Down Winch With Four Drums For Window Cleanere
Hoist speed0.95-1.27m/s
Rotate speed720-960 r/min
Rope diameter3-30mm
Sling typewire rope
Direction rotationleft or right
Applicationhoist
Parametercan be designed
ApplicationWindow Cleanere
Drum diameter400mm~500mm
Drum width1000mm

Technical Parameters

No:Wire diameter(mm)Pulling Force(KN)Rotation DirectionDrum Diameter(mm)Drum Length(mm)
13~83~10Lefthand,Righthand>160<1000
210~1612~20Lefthand,Righthand>320<1000
318~2420~80Lefthand,Righthand>480<1000
426~32100~120Lefthand,Righthand>640<1000
534~40150~200Lefthand,Righthand>800<1000
642~50240~400Lefthand,Righthand>1000<1000



LeBUS rope groove specifications

Custom design or processing according to drawings.
Lebus rope groove drum is divided into integral and split, integral needs to process drawings.
The separation needs parameters such as drum diameter, outer diameter, length, wire rope diameter, rope groove rotation (left or right) and so on.

Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner 0

Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner 1Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner 2Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner 3

Slowly Speed Grooved Winch Drum For Manned Elevator Carry People For Window Cleaner 4
