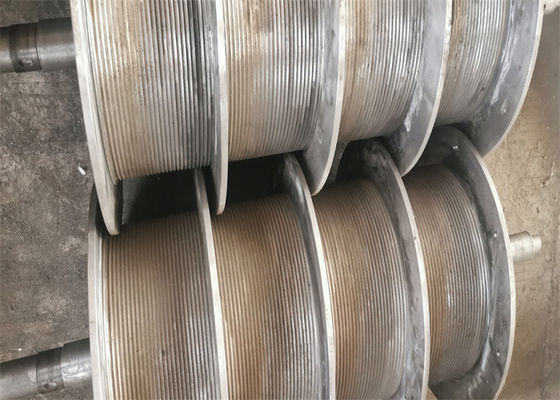

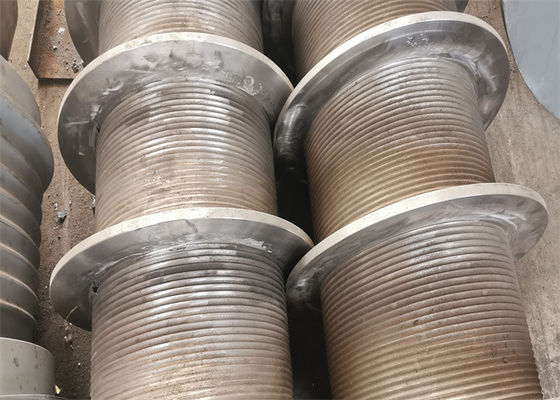

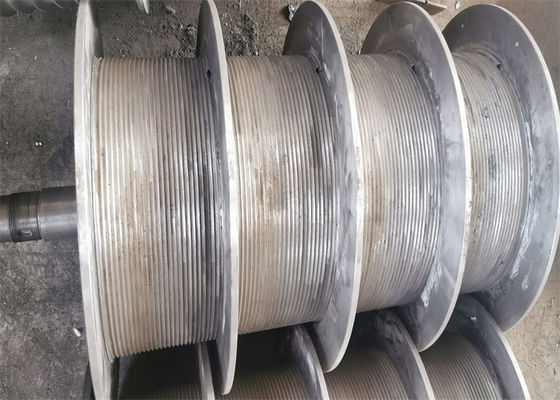

Multi Rope Multi Drum Lifting Winch Drum With Lebus Grooves For Wall Cleaning Machine

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

Multi Rope Multi Drum Lifting Winch Drum With Lebus Grooves For Wall Cleaning Machine

Multi Rope Multi Drum Lifting Winch Drum With Lebus Grooves For Wall Cleaning Machine
Multi Rope Multi Drum Lifting Winch Drum With Lebus Grooves For Wall Cleaning Machine Multi Rope Multi Drum Lifting Winch Drum With Lebus Grooves For Wall Cleaning Machine Multi Rope Multi Drum Lifting Winch Drum With Lebus Grooves For Wall Cleaning Machine

Large Image :  Multi Rope Multi Drum Lifting Winch Drum With Lebus Grooves For Wall Cleaning Machine

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS, ABS
Model Number: LBSD Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: USD, EUR, RMB / Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Multi Rope Multi Drum Lifting Winch With LEBUS GroovesFor Wall Cleaning Machine Material: Q355B Steel
Groove Type: Lebus Grooves Structure: Welded
Dia.of Rope: 16mm Layer: Multi Layer
Used: Wall Cleaning Machine Rope Capacity: 100m
High Light:

multi rope winch drum

,

wall cleaning machine winch drum

,

wall cleaning machine grooved drum

Multi Rope Multi Drum Lifting Winch With LEBUS Grooves For Wall Cleaning Machine

LEBUS rope groove

With the development of oil drilling winches in recent decades, winches appear more. The transmission form and the structure form are various, but the winding rope rule of the winch drum is not change, our company developed LEBUS rope groove has obvious advantages. LEBUS rope groove double line form, suitable for multi-layer winding, can effectively reduce or avoid steel wire rope disorder phenomenon. In the design process of the drawworks drum, the drawworks drum has a large opening range small, bottom diameter selection, position of guide block, rope socket structure, rope groove spacing, rope groove the spiral angle of the parallel section and the climbing section will affect the effect of drum rope winding, because this, the study of winch drum structure and characteristics, will help to reduce or avoid oil field field hoist drum disorderly rope phenomenon, prolong the use of wire rope and drum life.

Product infromation

Hoist speed 0.95-1.27m/s
Rotate speed 720-960 r/min
Rope diameter 3-30mm
Sling type wire
Direction rotation left or right
Application hoist
Parameter can be designed
Application mining,oil drilling,or coal mine
Drum diameter 900mm
Drum width 600mm

Technical Parameters

No: Wire diameter(mm) Pulling Force(KN) Rotation Direction Drum Diameter(mm) Drum Length(mm)
1 3~8 3~10 Lefthand,Righthand >160 <1000
2 10~16 12~20 Lefthand,Righthand >320 <1000
3 18~24 20~80 Lefthand,Righthand >480 <1000
4 26~32 100~120 Lefthand,Righthand >640 <1000
5 34~40 150~200 Lefthand,Righthand >800 <1000
6 42~50 240~400 Lefthand,Righthand >1000 <1000

Service conditions of Lebus groove

1. The flanges of drum shall be perpendicular to drum wall at any conditions,even under the load.
2. The rope must be kept under tension in the process of spooling so that the rope will be crushed against groove wall. When spooling can not meet this condition,a press roller shall be used.It is generally recommended that the tension of the rope should be at least 2% breaking tension or 10% working load.

3. The fleet angle range should generally never be more than 1.5 degrees and not less than 0.25 degrees.

4. When the wire rope released from the drum goes around the sheave,the center of sheave should be over the center of drum.

5. The rope must be kept round,not loose,even under the maximum load.

6. The rope must be anti-rotation structure.

Pls measure the change of rope diameter under different load.
