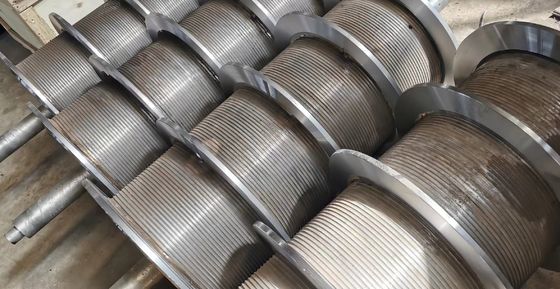

Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope

Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope
Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope

Large Image :  Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSW-D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Export standard wooden case
Delivery Time: 30 to 40 working days, depends on order amount and specification
Payment Terms: L/C, T/T
Supply Ability: 500 Pieces/Sets Per Month
Detailed Product Description
Product Name: Ouble Or Multi Lebus Grooved Drum For Hoist Winch Material: Steel
MOQ: 1 Set Produce Equipment: CNC Center
Material Standard: GB, AISI, ASME Application Range: Clean Window Machine
Rotate Speed: 720-960r/min Rope Diameter: 80mm
Drum Quantity: Four Or More Rope Capacity: 800m
High Light:

hoist winch winding rope lebus drum

,

grooved lebus drum

,

lebus grooved drum

Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope

Product Introduction
Winch , also known as hoist, is a small and light lifting equipment with a winding wire rope or chain to lift or pull heavy objects .
The drum is the most important part of the winch system,Our company specializes in the production of LEBUS grooved druml, LEBUS groove can effectively solve the problem of multi-layer winding rope, can avoid the phenomenon of rope biting rope, greatly save the rope, improve the work efficiency.
The LeBus system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.

Product name Cable winch drum
Drum Quantity Single or double
Drum Design LBS groove or spiral groove
Material Carbon stainless and alloy steels
Size Customization
Application Range Construction mining terminal operation
Power Source Electric and hydraulic
Rope Capacity 100~300M

Oerview

Winch drum is an important part of oil rig winch, winch drum.
One end of the wound wire rope is fixed at the drum rope socket through a rope clip, and the other end.
The guide wheel of the sky car is introduced into the trolley pulley group, and the trolley pulley group is installed.
Equipped with hooks, faucets and drill pipe strings. When the winch works, it is wound.
The steel wire rope on the drum realizes the action of winding and releasing the rope through positive and negative rotation of the drum.
The drum bears the fast rope tension of the wire rope, and the drum structure must meet the strength.
Outside, but also to ensure that the wire rope winding neatly.


Product Application
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch

Types of Structure

Winch drum with groove mainly has the following three types of structure:
1. splicing type, In this structure, the rope groove body is first made into 4 pieces of tile, and then the 4 pieces of tile groove and light drum body are spliced and welded together.
2. integral, is the rope groove is directly located on the drum body, rope groove and drum body as one.
3. Plug welding type, make the rope groove into a cylinder body, and then cut it into 2 pieces of tiles, and plug welding on the drum body.

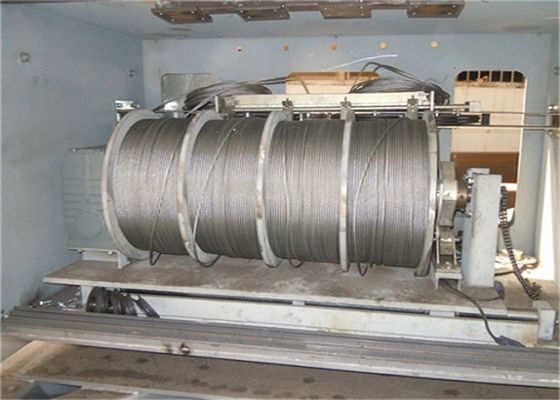

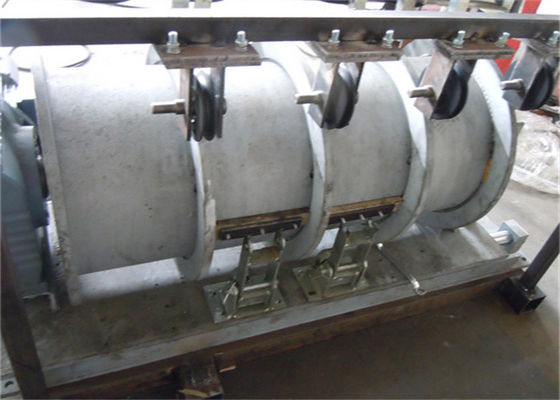

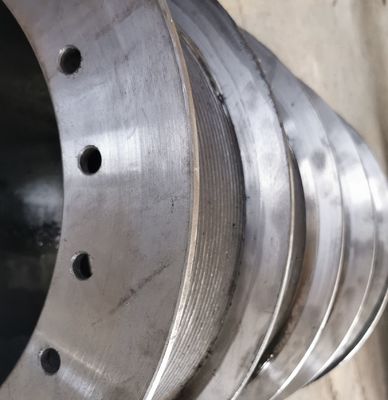

Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope 0Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope 1Double or Multi Lebus Grooved Drum For Hoist Winch to Winding Rope 2
