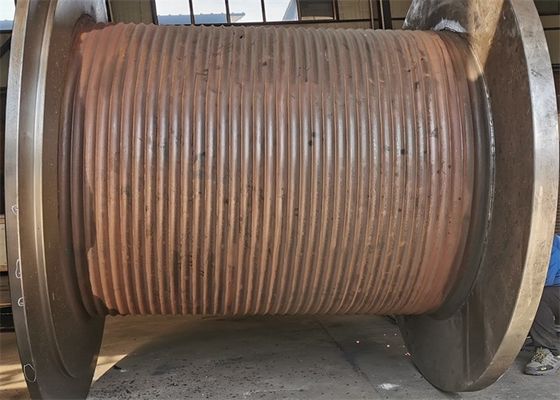

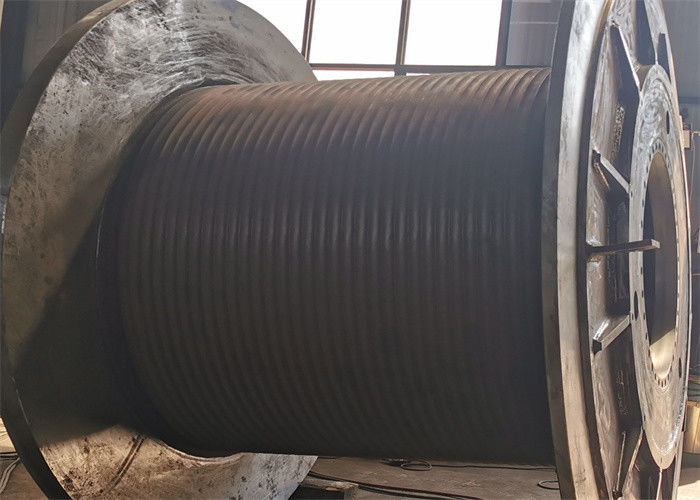

Super Large 5000mm Diameter Lebus Grooved Winch Drum For Oilfield Winch
Product Introduction
Winch , also known as hoist, is a small and light lifting equipment with a winding wire rope or chain to lift or pull heavy objects .
The drum is the most important part of the winch system,Our company specializes in the production of LEBUS grooved druml, LEBUS groove can effectively solve the problem of multi-layer winding rope, can avoid the phenomenon of rope biting rope, greatly save the rope, improve the work efficiency.
The Lebus system is a method of controlling the spooling of wire rope on a winch drum so that there is no practical limit to the number of layers that can be spooled with safety, irrespective of the severity of load and speed conditions or the sizes of rope and drum.
Product name |
Cable winch drum |
Drum Quantity |
Single Or Double |
Drum Design |
LBS Groove Or Spiral Groove |
Material |
Carbon Stainless And Alloy Steels |
Size |
Customization |
Application Range |
Construction Mining Terminal operation |
Power Source |
Electric and hydraulic |
Rope Capacity |
100~300M |
Product Structure
Structural components
Drum, drum shaft assembly, which is the core components of the winch.
Braking mechanism, including mechanical brake and water brake (electromagnetic brake).
Cat head and cat head shaft assembly, used for tightening loose wire buckle, lifting heavy objects; The heavy rig winch also includes a bailing drum for extracting the core barrel.
Transmission system, the introduction and distribution of power and transfer of motion, for the internal variable speed winch in addition to the transmission shaft and drum shaft, cat head shaft, but also including chains, gears, shafting parts and turntable intermediate transmission shaft.
Control system, including teeth, teeth, pneumatic clutch, driller console, control valve parts, etc., is an integral part of the rig control system
Lubrication systems, including butter lubrication, drip lubrication and seal drive, splash or forced lubrication.
A support system with a welded frame or shell frame.
Product Application
1. Offshore Marine machinery: Offshore petroleum crane winch, Mooring winch, Traction winch, Man-riding winch, Anchor winch, Hydrologic winch
2. Engineering machinery: Cable winch, Tower crane, Piling machine, Hydraulic winch
3. Oil field industry: Oil drilling rig, Petroleum tractor hoist, Petroleum workover rig, Trailermounted pumping unit winch , Logging winch, etc
4. The building machinery: Building wipe wall winch, Winding hoist, Windlass
5. Mining winch: Dispatching winch, Prop-pulling winch,Sinking winch, etc
6. Crane machinery: The bridge lifting machine, Tower crane, Gantry crane,Crawler crane winch
Necessary Parameters for Production
Wire rope diameter or cable diameter(mm)
Inner diameter D1(mm)
Outer diameter D2(mm)
Width between the flanges L(mm)
Rope capacity(m)
Material:
Rotation direction:left or right
