Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum

Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum
Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum

Large Image :  Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Lebus Sleeve Material: HDG Carbon Steel
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Surface Color: As The Customer Connection Type: Welded Or Bolted
Dia.of Rope: 2~80mm Layers: 2~20 Layers
Use: Winch Drum Grooving Machining: CNC Machining
Highlight:

welded lebus sleeve

,

winch drum lebus sleeve

,

bolted winch sleeve

Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum

Introduce of Lebus Sleeves
Compared with the general non grooved (smooth) drum and spiral grooved drum, the Grooved Steel Drum has obvious advantages in the neat winding of multi-layer steel wire rope. Lebus groove makes the winding of steel wire rope more smooth and the load between layers is evenly distributed, reduces the irregular, disorderly winding and rope biting in the process of steel wire rope arrangement, reduces the damage of steel wire rope, prolongs the service life of steel wire rope, improves the safety of equipment operation, and avoids the shutdown time of mechanical equipment due to disorderly rope replacement.
The disadvantage of LBS rope groove drum is that it is more complex, so it is a little more expensive than the spiral rope groove drum. However, this additional cost is quickly compensated for by the savings in wire rope, which is expensive and takes up production time to replace.
In order to reduce costs, we produce Lebus sleeves, which are also manufactured to the required size of the wire rope. The material can be either steel or nylon, butt-welded or bolted onto the reel. This ensures that the wire rope is wrapped in orderly layers on the reel. When the wire rope can also be replaced, only SLEEVE can be replaced instead of the reel, greatly saving the cost and time.



Advantage of Lebus Groove

This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.



Product Lookview



GROOVING TYPE Special groove or helical groove
PRODUCT OTHER NAME Groove sleeve
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVE ROTATION Lefthand, Righthand
SLING TYPE Wire rope or cable
ROPE CAPACITY 50-1000M
PRODUCT OTHER NAME LBS groove drum or wire rope drum
GROOVING TYPE LBS groove or helical groove
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVEROTATION Lefthand ,Righthand
SLING TYPE Wire rope or cable

Technical Parameters and Application
No Wire diameter(mm) Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch

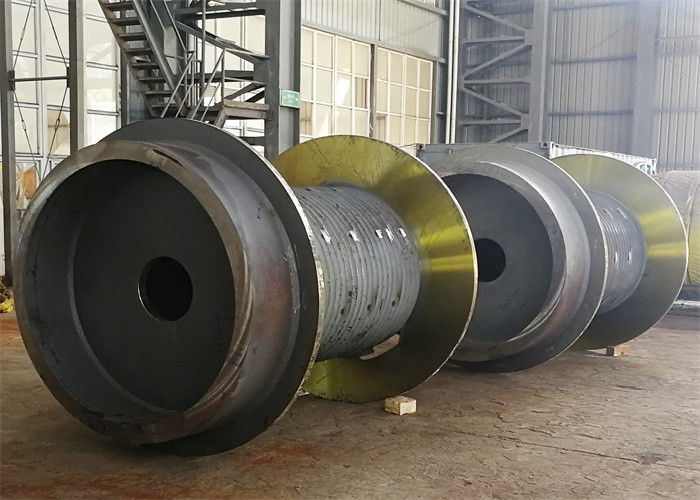

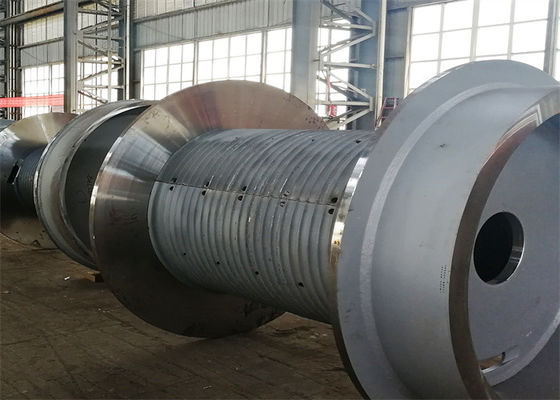

Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum 0Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum 1

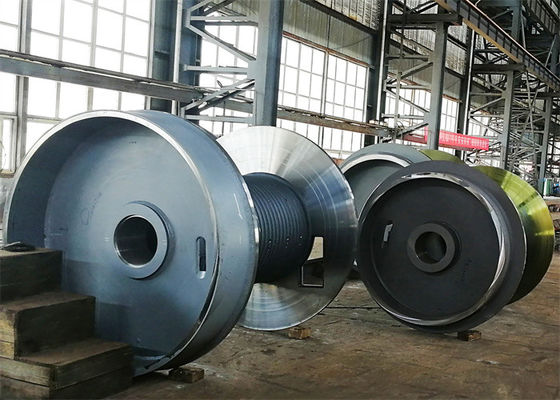

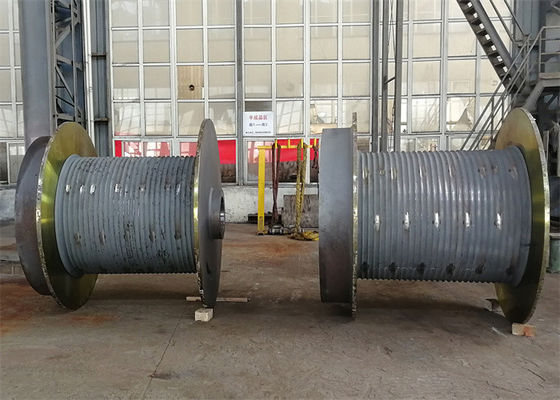

Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum 2Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum 3

Split Grooved Casings Lebus Sleeve Welded Or Bolted To Winch Drum 4
