Product Name: | LUBUS Sleeves | Material: | High-Molecular Polymer Nylon And Metal |
---|---|---|---|
Groove Type: | Lebus Grooves | Surface Treatment: | Spray Zinc Rich Primer |
Surface Color: | Customized | Connection Type: | Welded Or Bolted |
Dia.of Rope: | 2~80mm | Layers: | 2~22 Layers |
Used: | Winch Drum | Grooving Machining: | CNC Machining |
Advantage: | Increase Wire Rope Life And Save Money | Type: | Split Type |
Highlight: | ccs certified lebus sleeve,winch drum lebus sleeve,sleeve winch drum parts |

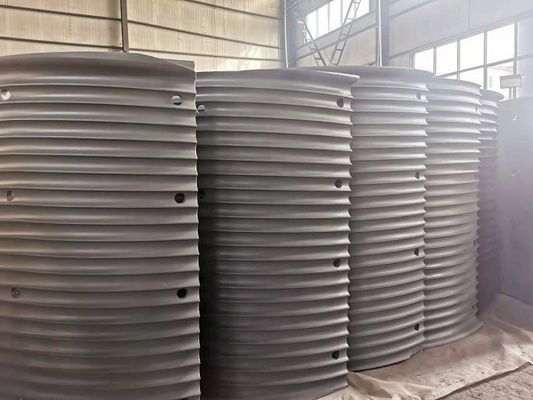

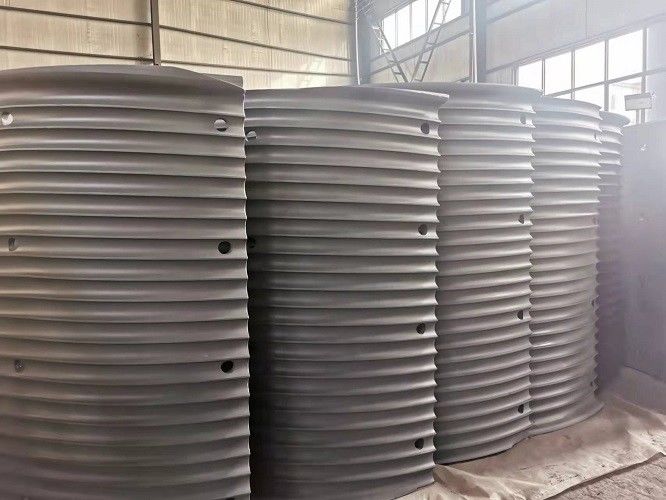

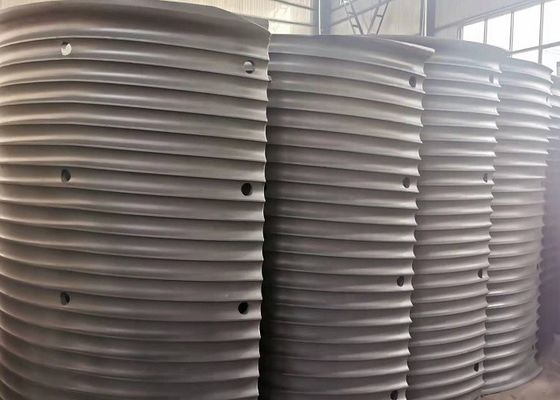

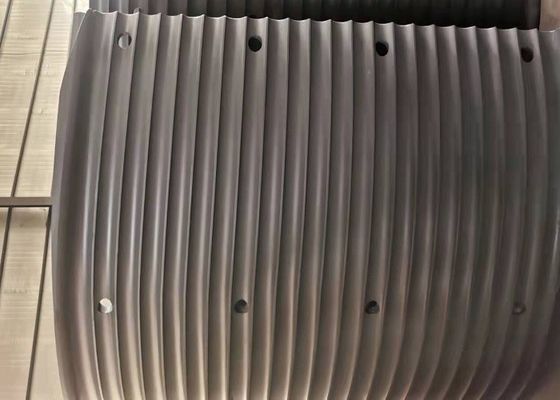

The LEBUS split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern. Either helical or LEBUS parallel grooves can be carved into the sleeves.
As with all LEBUS drums, the grooving in split sleeves is engineered to match the specific rope construction, diameter and length, and to suit the application.
PRODUCT NAME | multi-layer wire rope of cable onto hoisting drum spooling system lebus sleeves |
PRODUCT OTHER NAME | Lebus groove sleeve |
PROCESSING EQUIPMENT | CNC machining center |
DRUM GROOVE ROTATION | Lefthand ,Righthand |
SLING TYPE | Wire rope or cable |
ROPE CAPACITY | 50-1000M |
PRODUCT OTHER NAME | LBS groove drum or wire rope drum |
MATERAIL | High polymer nylon or carbon steel |
GROOVING TYPE | Lebus groove |
WARRANTY | 1year |
No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) |
Main drum length(mm) | Application |
1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Mining winch Logging Winch |
4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, Marine crane,Mooring winch |
