High Efficiency Split Lebus Drum Sleeves In Lifting Equipment

High Efficiency Split Lebus Drum Sleeves In Lifting Equipment
High Efficiency Split Lebus Drum Sleeves In Lifting Equipment High Efficiency Split Lebus Drum Sleeves In Lifting Equipment High Efficiency Split Lebus Drum Sleeves In Lifting Equipment

Large Image :  High Efficiency Split Lebus Drum Sleeves In Lifting Equipment

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: LUBUS Sleeves Material: High-Molecular Polymer Nylon And Matel
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Surface Color: Customized Connection Type: Welded Or Bolted
Dia.of Rope: 2~80mm Layers: 2~22 Layers
Used: Hoist Drum Grooving Machining: CNC Machining
Advantage: Prevent Wire Rope Supply Ability: 1000000
High Light:

high efficiency lebus sleeve

,

split lebus sleeve

,

lifting equipment lebus sleeve



High Efficiency Application Of Split LEBUS Drum Sleeves In Lifting Equipment



 Split sleeves for efficient use

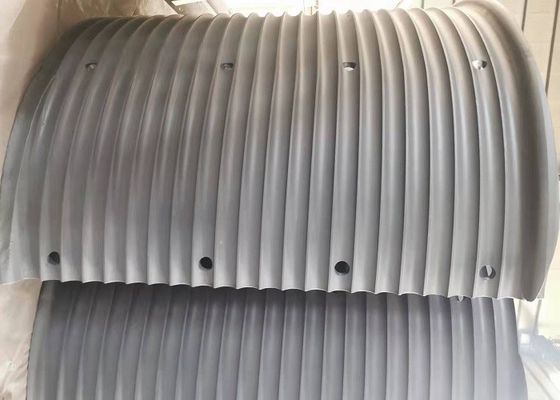

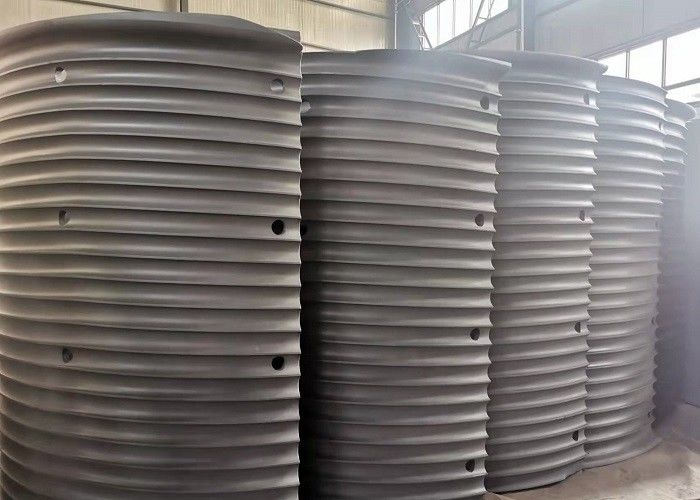

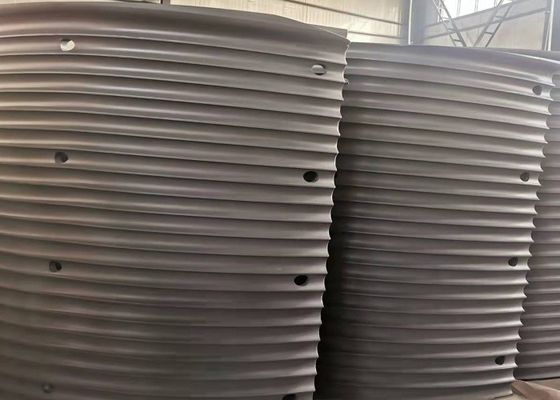

The LEBUS split-sleeve system consists of a pair of outer shells that are bolted or welded onto a smooth drum to provide a grooving pattern. Either helical or LEBUS parallel grooves can be carved into the sleeves.
As with all LEBUS drums, the grooving in split sleeves is engineered to match the specific rope construction, diameter and length, and to suit the application.



Product lookview:
PRODUCT NAME multi-layer wire rope of cable onto hoisting drum spooling system lebus sleeves
PRODUCT OTHER NAME Lebus groove sleeve
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVE ROTATION Lefthand ,Righthand
SLING TYPE Wire rope or cable
ROPE CAPACITY 50-1000M
PRODUCT OTHER NAME LBS groove drum or wire rope drum
MATERAIL High polymer nylon or carbon steel
GROOVING TYPE Lebus groove
WARRANTY  1year


Technical parameters and application:
No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm)        Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Mining winch
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch



High Efficiency Split Lebus Drum Sleeves In Lifting Equipment 0High Efficiency Split Lebus Drum Sleeves In Lifting Equipment 1High Efficiency Split Lebus Drum Sleeves In Lifting Equipment 2



High Efficiency Split Lebus Drum Sleeves In Lifting Equipment 3

High Efficiency Split Lebus Drum Sleeves In Lifting Equipment 4

High Efficiency Split Lebus Drum Sleeves In Lifting Equipment 5High Efficiency Split Lebus Drum Sleeves In Lifting Equipment 6
