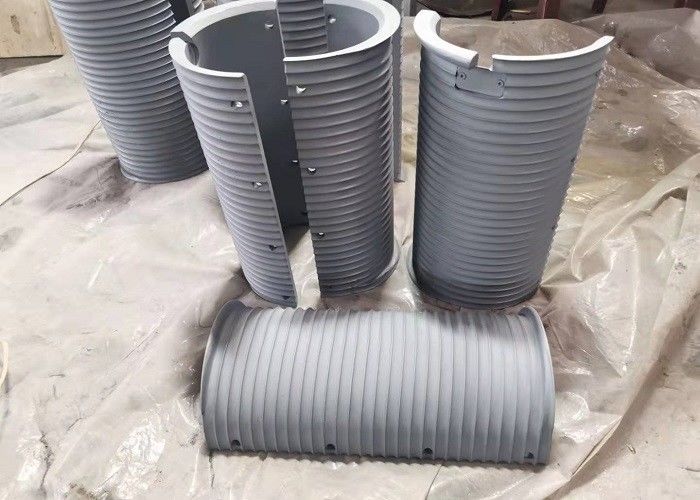

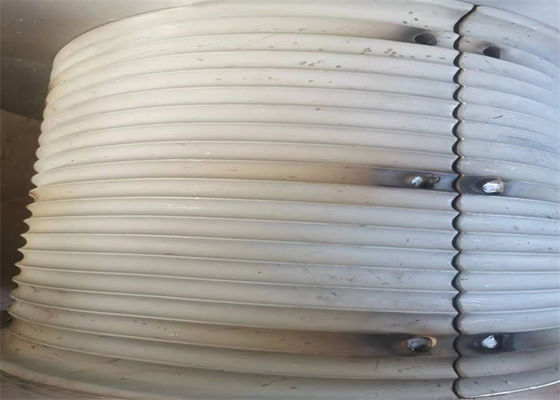

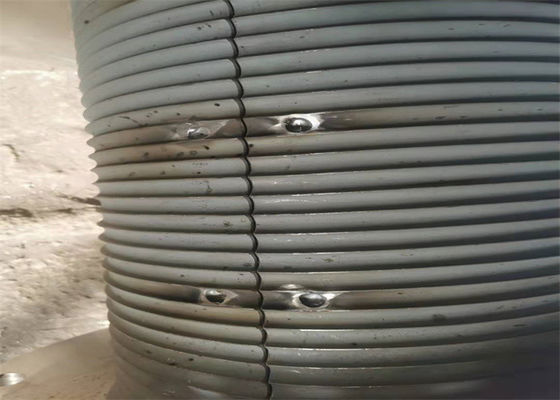

Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split

Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split
Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split

Large Image :  Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Two Halves Split LEBUS Sleeve Material: High Polymer Nylon Or Carbon Steel
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Surface Color: Black Or As The Customer Connection Type: Welded Or Bolted
Dia.of Rope: 2~80mm Layers: 2~22 Layers
Used: Hoist Drum Grooving Machining: CNC Machining
Advantage: Protect The Hoist Drum And Save The Wire Rope Supply Ability: 1000000
High Light:

protect hoist drum lebus sleeve

,

save wire rope lebus sleeve

,

split type lebus sleeve



Protect The Hoist Drum And Save The Wire Rope Two Halves Split LEBUS Sleeve



 Lebus sleeves system

Wire rope savings - Wire Rope and drums are expensive, electro-mechanical cable even more so. Anything that promotes the increased life of the cable can be a huge cost saving. Many times a drilling customer has covered the cost of a sleeve in cable savings alone. Dependability and performance are important in a hoist



Product lookview:
PRODUCT NAME multi-layer wire rope of cable onto hoisting drum spooling system lebus sleeves
PRODUCT OTHER NAME Lebus groove sleeve
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVE ROTATION Lefthand ,Righthand
SLING TYPE Wire rope or cable
ROPE CAPACITY 50-1000M
PRODUCT OTHER NAME LBS groove drum or wire rope drum
MATERAIL High polymer nylon or carbon steel
GROOVING TYPE Lebus groove
WARRANTY  1year


Technical parameters and application:
No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm)        Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Mining winch
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch



Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split 0Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split 1Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split 2



Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split 3

Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split 4

Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split 5Protect Hoist Drum Lebus Sleeve Save Wire Rope Two Halves Split 6
