Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders

Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders
Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders

Large Image :  Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Lebus Sleeve Material: High Polymer Nylon
Groove Type: Lebus Grooves Surface Treatment: Spray Zinc Rich Primer
Surface Color: Black Or As The Customer Connection Type: Welded Or Bolted
Dia.of Rope: 2~80mm Layers: 2~22 Layers
Used: Wire Rope Drum Grooving Machining: CNC Machining
Advantage: Cost Saving And Safety Supply Ability: 100000
Highlight:

lightweight lebus sleeve

,

wear resistant lebus sleeve

,

winch cylinders lebus sleeve

customized Polymer Nylon Lightweight Wear Resistant Lebus Sleeve For Winch cylinders





 Lebus sleeves system

The grooved cylinders are split in halves for easy installation either by welding or bolting to an existing drum core. we call them sylider sleeves ,After the installation has been accomplished, the grooves supplied by LeBus set a pattern whereby a repetitive action of layer to layer spooling can be controlled regardless of the number of layers or drum speed, size and load on the drum.



Product lookview:
PRODUCT NAME Customized Polymer Nylon Lightweight Wear Resistant Lebus Sleeve For Winch Drum
PRODUCT OTHER NAME Lebus groove sleeve
PROCESSING EQUIPMENT CNC machining center
DRUM GROOVE ROTATION Lefthand ,Righthand
SLING TYPE Wire rope or cable
ROPE CAPACITY 50-1000M
PRODUCT OTHER NAME LBS groove drum or wire rope drum
MATERAIL High polymer nylon
GROOVING TYPE Lebus groove
WARRANTY  1year


Technical parameters and application:
No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm)        Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Mining winch
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765 Offshore Crane,
Marine crane,Mooring winch

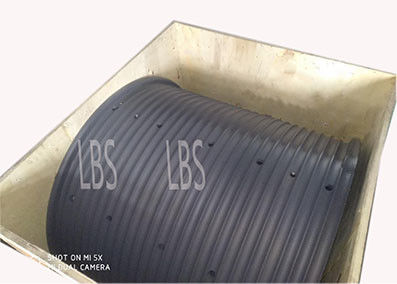

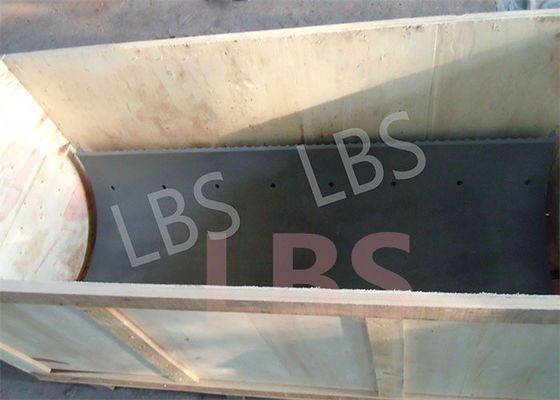

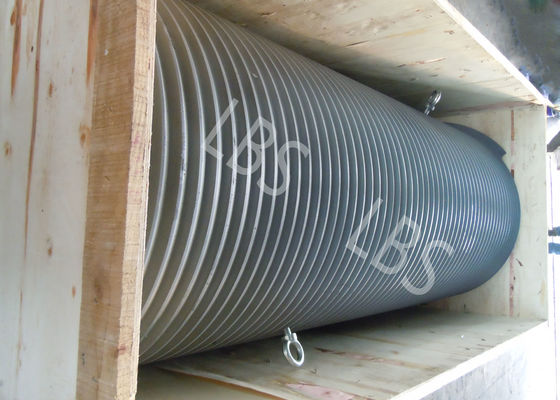

Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders 0Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders 1Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders 2



Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders 3

Lightweight Wear Resistant Lebus Sleeve For Winch Cylinders 4
