Product Details:
Payment & Shipping Terms:
|
| Product Name: | Grooved Lebus Sleeve | Material: | HDG Carbon Steel |
|---|---|---|---|
| Groove Type: | Lebus Grooves | Surface Treatment: | Spray Zinc Rich Primer |
| Surface Color: | As The Customer | Connection Type: | Welded Or Bolted |
| Dia.of Rope: | 2~80mm | Layers: | 2~20 Layers |
| Use: | Winch Drum | Grooving Machining: | CNC Machining |
| Highlight: | hot dip galvanized steel lebus sleeve,lebus sleeve for winch drum,grooved lebus sleeve |
||

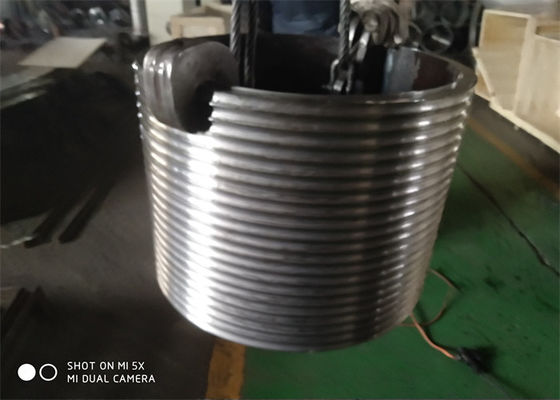

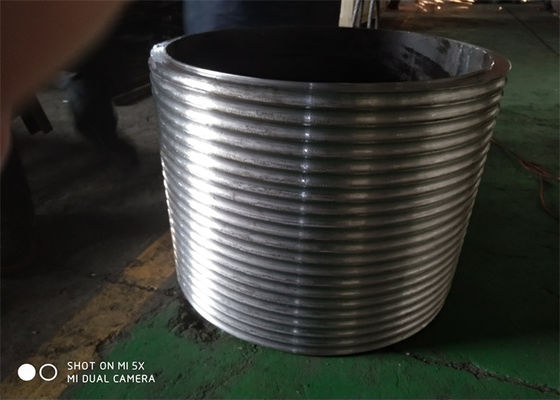

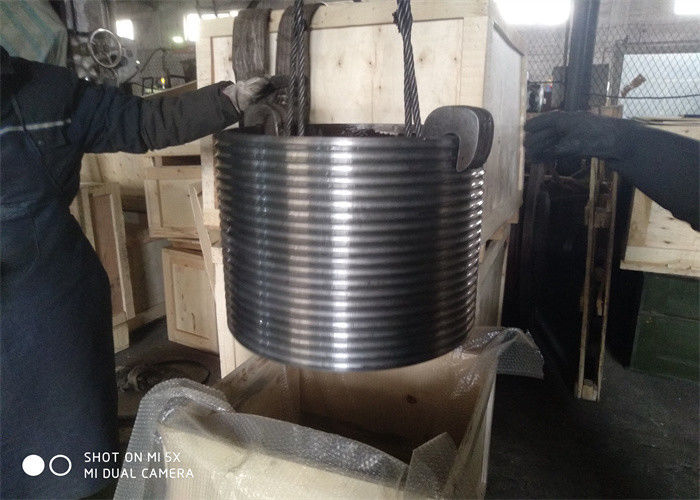

Sleeves are used to prevent damage to a drum. It is usually cheaper to replace a worn out sleeve instead of replacing or repairing the complete drum assembly. That is why grooved sleeves have become so popular
This system is still the most effective and perfect method to prolong the life of wire rope. Tests have shown that the use with Wire rope specifications match the rope groove, Lebus drum can prolong the life of wire rope more than 500%.
LBS rope groove makes the load evenly distributed between layers, and the practice proves that it greatly prolongs the life of wire rope. In fact, the test surface can extend wire rope life by more than 500%. Reducing wire rope damage increases safety and reduces machine downtime.
| GROOVING TYPE: | Special groove or helical groove |
| PRODUCT OTHER NAME | groove sleeve |
| PROCESSING EQUIPMENT | CNC machining center |
| DRUM GROOVE ROTATION | Lefthand ,Righthand |
| SLING TYPE | Wire rope or cable |
| ROPE CAPACITY | 50-1000M |
| PRODUCT OTHER NAME | LBS groove drum or wire rope drum |
| GROOVING TYPE | LBS groove or helical groove |
| PROCESSING EQUIPMENT | CNC machining center |
| DRUM GROOVEROTATION | Lefthand ,Righthand |
| SLING TYPE | Wire rope or cable |
| No: | Wire diameter(mm): | Rotation direction | Main drum diameter(mm) |
Main drum length(mm) | Application |
| 1 | 8 10 13 | Lefthand,Righthand | 430 | 763 | The oil workover rig winch, Towing winch Tower crane |
| 2 | 13 18 20 | Lefthand,Righthand | 623 | 1144 | Engineering winch, Lifting winch,Crawler crane |
| 3 | 22 25 26 | Lefthand,Righthand | 730 | 1220 | Oil workover rig , Logging Winch |
| 4 | 18 22 32 | Lefthand,Righthand | 670 | 1240 | Drilling Rig Winch, drawworks |
| 5 | 28 32 36 40 | Lefthand,Righthand | 560 | 630 | Rotating Drilling Rig winch, Lifting equipment |
| 6 | 26 28 32 45 | Lefthand,Righthand | 760 1146 | 1970 1765 | Offshore Crane, Marine crane,Mooring winch |
