Lebus Grooved Cable Drum Multiple Winding Wire Rope Arrangement Orlderly

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

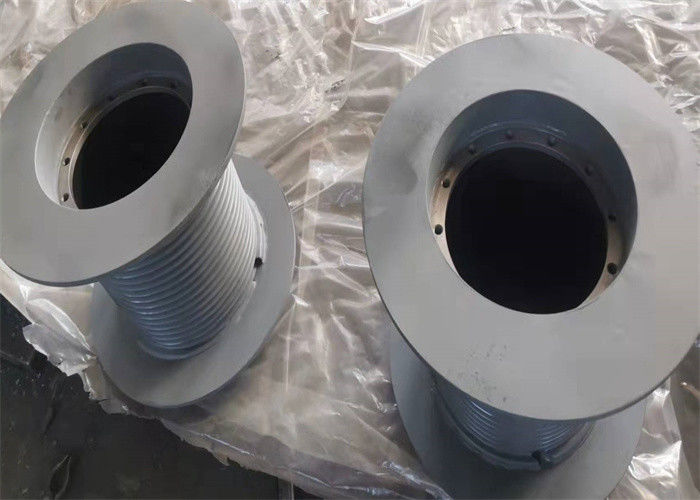

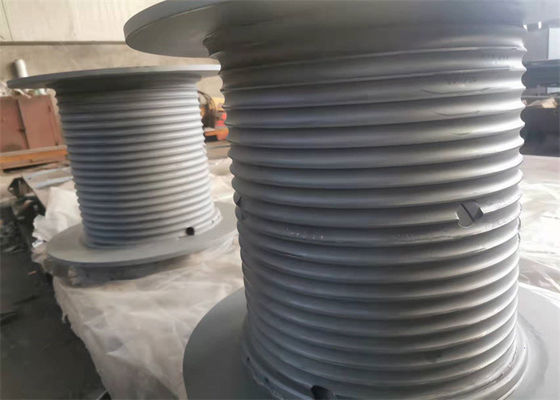

Lebus Grooved Cable Drum Multiple Winding Wire Rope Arrangement Orlderly

Lebus Grooved Cable Drum Multiple Winding Wire Rope Arrangement Orlderly
Lebus Grooved Cable Drum Multiple Winding Wire Rope Arrangement Orlderly Lebus Grooved Cable Drum Multiple Winding Wire Rope Arrangement Orlderly Lebus Grooved Cable Drum Multiple Winding Wire Rope Arrangement Orlderly

Large Image :  Lebus Grooved Cable Drum Multiple Winding Wire Rope Arrangement Orlderly

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Cable Drum Material: Q355B Steel
Groove Type: Lebus Grooves Product Type: Lebus Drum
Drum Quatity: Single Or Double Capacity Of Rope: 20-500m
Dia. Of Drum: 20~500mm Dia.of Rope: 2~80mm
Layers: 2~60 Layers Grooving Machining: CNC Machining
Highlight:

lebus grooved cable drum

,

multiple winding grooved cable drum

,

lebus grooved wire rope drum

Multiple Winding Wrie Rope Arrangement Orlderly Lebus Grooved Cable Drum





The Lebus cable groove winch developed by our company solves the following problems:

1. The steel wire rope can be wrapped in multiple layers without disorderly rope;

2. Wire rope winding speed is not restricted;

3. The load is evenly distributed between the wire ropes;

4. Under the condition of load, no rope biting or rope skipping between the wire ropes;

5. Reduce the damage of wire rope and improve the safety;

6. Reduce the downtime of wire rope replacement, greatly improve the work efficiency.

After using a large number of data sheet: prolong the service life of wire rope more than 500%.



Widely used in offshore platforms, petroleum machinery, water conservancy machinery, port machinery, large engineering machinery lifting equipment.



types of structure

Winch drum with groove mainly has the following three types of structure

1, splicing type. In this structure, the rope groove body is first made into 4 pieces of tile, and then the 4 pieces of tile groove and light drum body are spliced and welded together

2, integral, is the rope groove is directly located on the drum body, rope groove and drum body as one.

3. Plug welding type, make the rope groove into a cylinder body, and then cut it into 2 pieces of tiles, and plug welding on the drum body.



Basic information about winch

Brand LBS

Working principle: friction hoist

Driving power: hydraulic pressure

Reel form: LEBS slot reel

The traction 5000 kn

Rated speed: 24m/min

Diameter of wire rope: 18mm

Application: tower crane

Customization: Yes

Reel capacity: 79m

Reducer total transmission ratio: 1:7

Drum speed: 24r/min

Weight: 0.2T

Dimensions: 747*510*465mm

Where it's available: all over the world

Purpose: Engineering application

Model: LBS - 002



Required Parameters

1.Wire rope diameter or cable diameter(mm)
2.Inner diameter D1(mm)
3.Outer diameter D2(mm)
4.Width between the flanges L(mm)
5.Rope capacity(m)
6.Material:
7.Rotation direction:left or right?



types of structure

Winch drum with groove mainly has the following three types of structure

1, splicing type. In this structure, the rope groove body is first made into 4 pieces of tile, and then the 4 pieces of tile groove and light drum body are spliced and welded together

2, integral, is the rope groove is directly located on the drum body, rope groove and drum body as one.

3. Plug welding type, make the rope groove into a cylinder body, and then cut it into 2 pieces of tiles, and plug welding on the drum body.



Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch



Product Application:

1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc


Our company

Our company early introduction of advanced technology at home and abroad, after years of research and development and improvement, in the hoisting machinery multi-layer wire rope row rope field has made a major breakthrough,

In 2010, the company obtained the production patent of double folding rope groove drum, and founded its own brand - LBS. At present, the company has formed a mature and stable, serializedproduct production mode.

Our factory has more than 2000 sets of advanced equipment such as casting, forging, gear processing, sheet metal stamping, riveting, heat treatment and mechanical processing. In recent years, the Germany CW1000 machining center, CNC four axis, five axis linkage machining center, CNC punch, large CNC hobbing gear grinding machine, large CNC floor boring and milling machine, Vacuum electron beam welding, CNC welding robot and 80 roll machine and other advanced processing equipment
