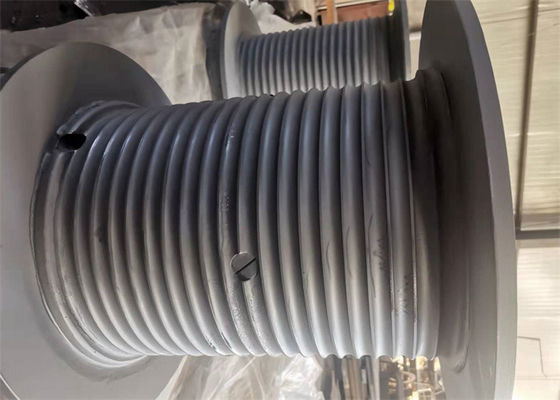

Not Disorderly Rope Grooved Winch Drum Construction Machinery Tower Crane Parts

China Hebei Junke Machinery Technology Co.,Ltd certification
China Hebei Junke Machinery Technology Co.,Ltd certification
The company has a very mature technology, product quality is impeccable, the details of the deal well, look forward to the next cooperation.

—— Earlina Adamson

The equipment trades completed in March, the winch wire rope drum has been installed, wire rope neatly arranged, the equipment is in good condition.

—— Zhang Zhipeng Singapore

I'm Online Chat Now

Not Disorderly Rope Grooved Winch Drum Construction Machinery Tower Crane Parts

Not Disorderly Rope Grooved Winch Drum Construction Machinery Tower Crane Parts
Not Disorderly Rope Grooved Winch Drum Construction Machinery Tower Crane Parts Not Disorderly Rope Grooved Winch Drum Construction Machinery Tower Crane Parts

Large Image :  Not Disorderly Rope Grooved Winch Drum Construction Machinery Tower Crane Parts

Product Details:
Place of Origin: Shijiazhuang Hebei China
Brand Name: LBS
Certification: CCS
Model Number: LBSS Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Export Standard Wooden Case
Delivery Time: General Order 15-30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Pieces Per Month
Detailed Product Description
Product Name: Grooved Cable Drum Material: Q355B Steel
Groove Type: Lebus Grooves Product Type: Lebus Drum
Connection Type With Drum: Bolted Dia.of Rope: 2~80mm
Layers: 2~60 Layers Grooving Machining: CNC Machining
Dia. Of Drum: 20~500mm Drum Quatity: Single Or Double
High Light:

not disorderly rope grooved winch drum

,

tower crane grooved winch drum

,

not disorderly rope grooved cable drum

Construction Machinery Tower Crane Parts Lebus Grooved Cable Drum Not Disorderly Rope



introduction

Tower crane is a rotating crane whose boom is mounted on the top of the towering tower. It is mainly used for vertical transportation of materials and component installation in construction of multi-storey and high-rise buildings. It is composed of metal structure, working mechanism and electrical system. The metal structure includes tower body, boom, base, attachment rod, etc. The working mechanism has four parts: lifting, luffing, turning and walking. Electrical system includes motor, controller, distribution frame, connecting circuit, signal and lighting device, etc.



Tower crane winch

Tower crane is referred to as tower crane, also known as tower crane, originated in Western Europe. A rotating crane with arms mounted on top of a towering tower. Large working space is mainly used for vertical and horizontal conveying of materials and installation of building components in building construction. It is composed of metal structure, working mechanism and electrical system. The metal structure includes tower body, boom and base. The working mechanism has four parts: lifting, luffing, turning and walking. Electrical system includes motor, controller, power distribution cabinet, connecting circuit, signal and lighting device, etc



The basic information

ame Tower crane
the alias Tower hoist
origin Western Europe
use Vertical and horizontal conveying of materials in construction
classification Upper rotary tower and lower rotary tower



Basic information about winch

Brand LBS

Working principle: friction hoist

Driving power: hydraulic pressure

Reel form: LEBS slot reel

The traction 5000 kn

Rated speed: 24m/min

Diameter of wire rope: 18mm

Application: tower crane

Customization: Yes

Reel capacity: 79m

Reducer total transmission ratio: 1:7

Drum speed: 24r/min

Weight: 0.2T

Dimensions: 747*510*465mm

Where it's available: all over the world

Purpose: Engineering application

Model: LBS - 002



Required Parameters

1.Wire rope diameter or cable diameter(mm)
2.Inner diameter D1(mm)
3.Outer diameter D2(mm)
4.Width between the flanges L(mm)
5.Rope capacity(m)
6.Material:
7.Rotation direction:left or right?



types of structure

Winch drum with groove mainly has the following three types of structure

1, splicing type. In this structure, the rope groove body is first made into 4 pieces of tile, and then the 4 pieces of tile groove and light drum body are spliced and welded together

2, integral, is the rope groove is directly located on the drum body, rope groove and drum body as one.

3. Plug welding type, make the rope groove into a cylinder body, and then cut it into 2 pieces of tiles, and plug welding on the drum body.



Technical parameters and application:



No: Wire diameter(mm): Rotation direction Main drum
diameter(mm)
Main drum length(mm) Application
1 8 10 13 Lefthand,Righthand 430 763 The oil workover rig winch,
Towing winch
Tower crane
2 13 18 20 Lefthand,Righthand 623 1144 Engineering winch,
Lifting winch,Crawler crane
3 22 25 26 Lefthand,Righthand 730 1220 Oil workover rig ,
Logging Winch
4 18 22 32 Lefthand,Righthand 670 1240 Drilling Rig Winch,
drawworks
5 28 32 36 40 Lefthand,Righthand 560 630 Rotating Drilling Rig winch,
Lifting equipment
6 26 28 32 45 Lefthand,Righthand 760 1146 1970 1765

Offshore Crane,
Marine crane,Mooring winch



Product Application:

1. Marine ship machinery: offshore oil crane winch, mooring winch, traction winch, towing winch, anchor winch and hydrological winch
2. Petroleum industry: oil drilling rig, oil logging truck winch, oil workover rig, wiper, oil truck winch, etc
3. Hoisting machinery: crane, tower crane winch, gantry crane winch, crawler crane winch, tire crane winch
4. Construction machinery: construction wall cleaning winch, single drum winch and double drum winch
5. Other construction machinery: cable winch, tower crane, pile driver, electric hydraulic winch
6. Mining machinery: dispatching winch, traction winch, inclined shaft winch, etc
